22855x11H - Murray 22" Walk-Behind Mower (2000) Height Adjust & Discharge Parts Diagram

22" Walk-Behind Mower

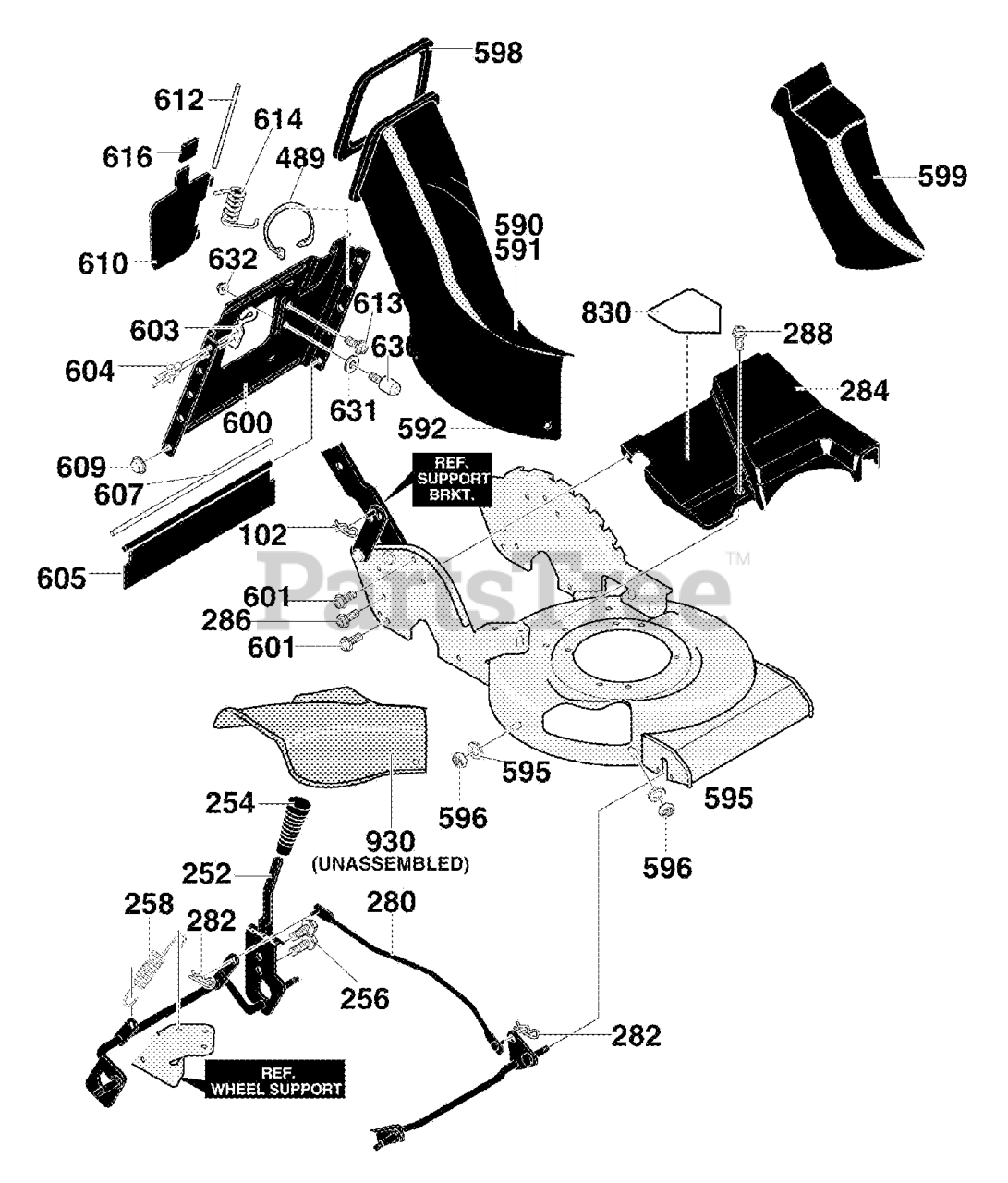

Height Adjust & Discharge Parts Diagram

  • Title
102

Murray MU710291

HAIR PIN

$

$

Currently unavailable

252

Murray MU672287

SPRING, Lever Hgt/Adj Rear

$

$

Currently unavailable

254

Murray MU671297

KNOB, Height Adjust

$

$

Currently unavailable

256

Murray MU710274

SCREW, 1/4-20x.63

$

$

Currently unavailable

258

Murray MU710337

SPRING, Extension

$

$

Currently unavailable

280

Murray MU671328-848

Lifter, Assy Link

$

$

Currently unavailable

282

Murray MU710292

HAIR PIN

$

$

Currently unavailable

284

Murray MU671547

Cover, Rear

$

$

Currently unavailable

286

Murray MU710180

SCREW, 1/4-20x.63

$

$

Currently unavailable

288

Murray MU710269

SCREW, 10-16x.75

$

$

Currently unavailable

489

Murray MU712267

Cable Tie

$

$

Currently unavailable

590

Murray MU671296

CHUTE, RR Discharge

$

$

Currently unavailable

591

Murray MU672230

CHUTE Floor, Rear

$

$

Currently unavailable

592

Murray MU710260

Rivet Pop

$

$

Currently unavailable

595

Murray MU710142

FLATWASHER

$

$

Currently unavailable

596

Murray MU710205

NUT, 5/16-18

$

$

Currently unavailable

598

Murray MU71906

Gasket, Compression

$

$

Currently unavailable

599

Murray MU671373

Plug, Mulcher

$

$

Currently unavailable

600

Murray MU671298-846

Plate, Bag

$

$

Currently unavailable

601

Murray MU710276

SCREW, 5/16-18 x 0.62

$

$

Currently unavailable

603

Murray MU671443

Lower Rope Guide

$

$

Currently unavailable

604

Murray MU710259

Pop Rivet

$

$

Currently unavailable

605

Murray MU671289

GUARD, Rear Toe

$

$

Currently unavailable

607

Murray MU671319

ROD, Rear Guard

$

$

Currently unavailable

609

Murray MU710285

Cap, Push On

$

$

Currently unavailable

610

$

$

Currently unavailable

612

Murray MU671300

PIN, Hinge Door

$

$

Currently unavailable

613

Murray MU710267

SCREW, #8-32x.38

$

$

Currently unavailable

614

Murray MU335572

Torsion Spring

$

$

Currently unavailable

616

Murray MU671306

Door Grip

$

$

Currently unavailable

630

Murray MU53446

PIN, Hinged Hood Latch

$

$

Currently unavailable

631

Murray MU120393

FLATWASHER

$

$

Currently unavailable

632

Murray MU120376

NUT, 5/16-18

$

$

Currently unavailable

830

Murray MU44X5430

DECAL, Cut Finger

$

$

Currently unavailable

930

Murray MU671295

CHUTE, Side Discharge

$

$

Currently unavailable
