22855x11H - Murray 22" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

22" Walk-Behind Mower

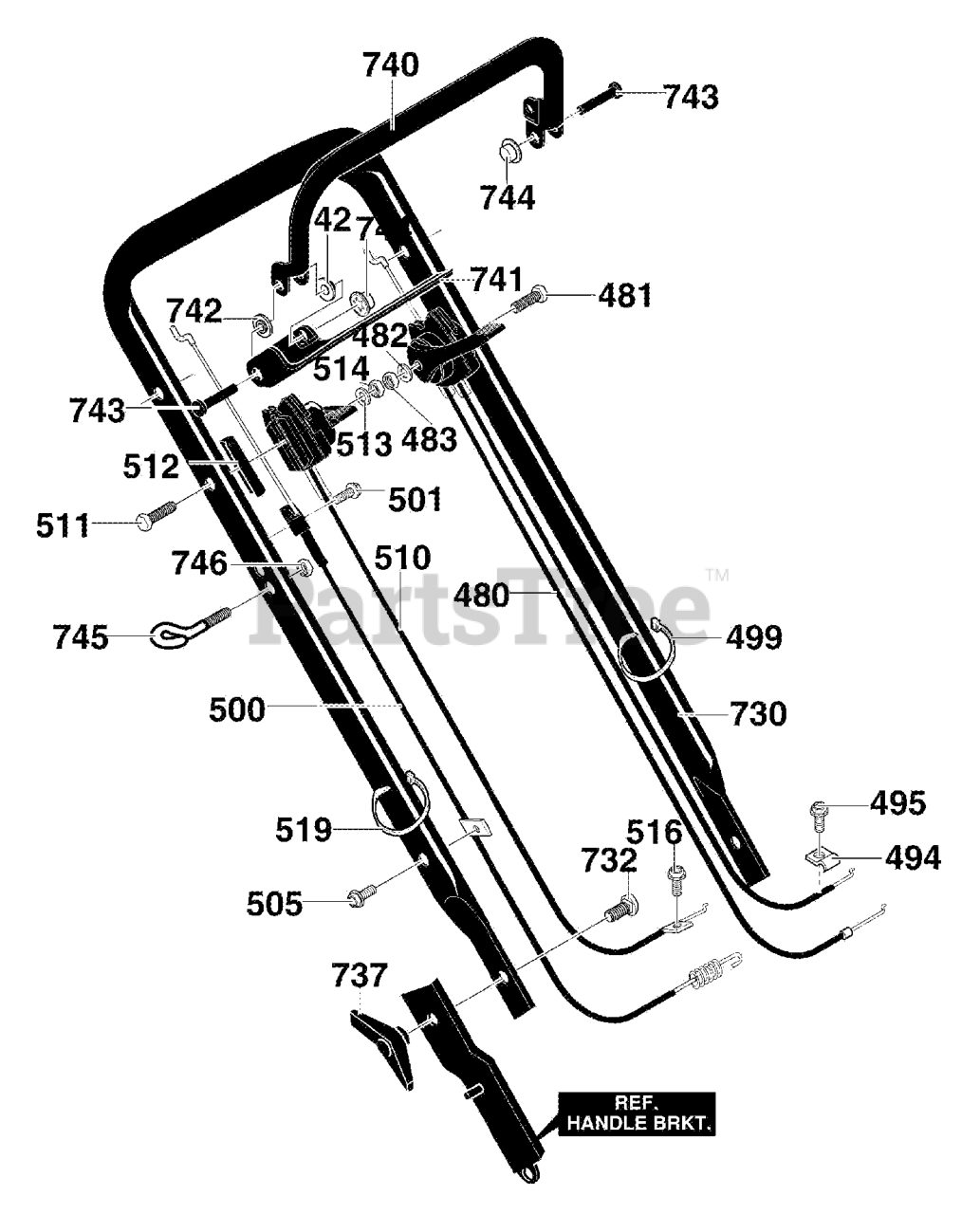

Handle Assembly Parts Diagram

  • Title
480

Murray MU671594

CABLE, Throttle

$

$

Currently unavailable

481

Murray MU710166

SCREW, 1/4-20x2.50

$

$

Currently unavailable

482

Murray MU120385

FLATWASHER

$

$

Currently unavailable

483

Murray MU710203

NUT,1/4-20

$

$

Currently unavailable

494

Murray MU12425

Clamp, Throttle

$

$

Currently unavailable

495

Murray MU710275

SCREW, 10-32X.62

$

$

Currently unavailable

499

Murray MU712267

Cable Tie

$

$

Currently unavailable

500

Murray MU671593

Cable Drive Assy.

$

$

Currently unavailable

501

Murray MU710272

SCREW, #10-16X.50

$

$

Currently unavailable

505

Murray MU710273

SCREW, #10-16X.50

$

$

Currently unavailable

510

Murray MU671595

CABLE, Shifter Speed

$

$

Currently unavailable

511

Murray MU710165

SCREW, 1/4-20X3.00

$

$

Currently unavailable

512

Murray MU671635

SPACER, T-Control

$

$

Currently unavailable

513

Murray MU120385

FLATWASHER

$

$

Currently unavailable

514

Murray MU710203

NUT,1/4-20

$

$

Currently unavailable

516

Murray MU710275

SCREW, 10-32X.62

$

$

Currently unavailable

519

Murray MU712267

Cable Tie

$

$

Currently unavailable

730

$

$

Currently unavailable

732

Murray MU710176

BOLT, Carriage

$

$

Currently unavailable

737

Murray MU671495

KNOB, Wing

$

$

Currently unavailable

740

Murray MU671567

Stop Lever

$

$

Currently unavailable

741

Murray MU671566

LEVER, Drive Control

$

$

Currently unavailable

742

Murray MU339065

WASHER, Nylon

$

$

Currently unavailable

743

Murray MU710289

Clevis Pin

$

$

Currently unavailable

744

Murray MU710285

Cap, Push On

$

$

Currently unavailable

745

Murray MU643956

Rope Guide

$

$

Currently unavailable

746

Murray MU710203

NUT, 1/4-20

$

$

Currently unavailable
