22855x11H - Murray 22" Walk-Behind Mower (2000) Drive & Wheel Assembly Parts Diagram

22" Walk-Behind Mower

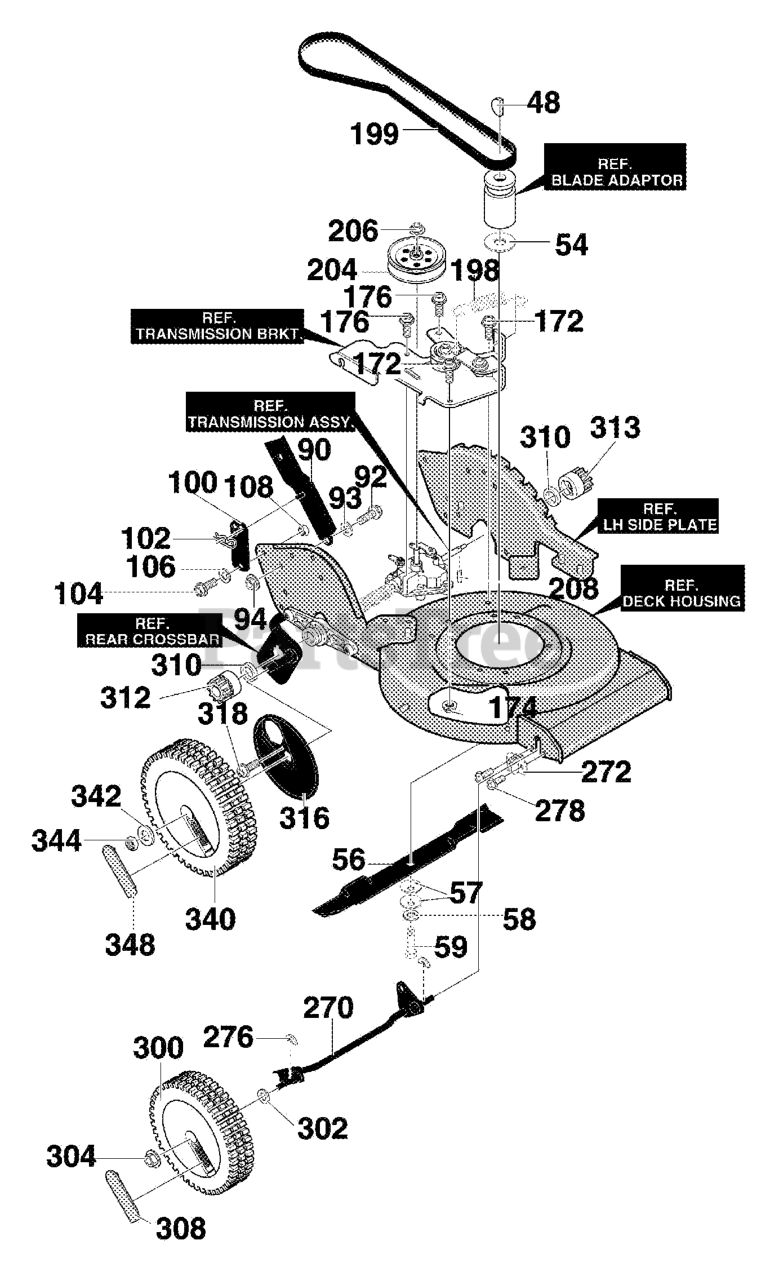

Drive & Wheel Assembly Parts Diagram

  • Title
48

Murray MU2125

Woodruff Key

$

$

Currently unavailable

54

Murray MU671470

SPACER, Blade Adapter

$

$

Currently unavailable

56

Murray MU671849

Blade, 22" Mulch 3N1

$

$

Currently unavailable

57

Murray MU710210

WASHER, Bellville

$

$

Currently unavailable

58

Murray MU710207

FLATWASHER

$

$

Currently unavailable

59

Murray MU710201

SCREW, 3/8-24 x 2.00

$

$

Currently unavailable

90

Murray MU671317-846

BRACKET, Assy. Handle

$

$

Currently unavailable

92

Murray MU710184

BOLT, HHSH 3/8-16

$

$

Currently unavailable

93

Murray MU710258

WASHER, Spring

$

$

Currently unavailable

94

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

100

Murray MU671318-846

Strap, Handle Adjuster

$

$

Currently unavailable

102

Murray MU710291

HAIR PIN

$

$

Currently unavailable

104

Murray MU710184

BOLT, HHSH 3/8-16

$

$

Currently unavailable

106

Murray MU710258

WASHER, Spring

$

$

Currently unavailable

108

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

172

Murray MU710184

BOLT, HHSH 3/8-16

$

$

Currently unavailable

174

Murray MU45171

NUT, 3/8-16

$

$

Currently unavailable

176

Murray MU710268

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

198

Murray MU710328

SPRING, Tension

$

$

Currently unavailable

199

Murray MU335694

BELT, V3L 35.73LH

$

$

Currently unavailable

204

Murray MU671288

PULLEY, Engine

$

$

Currently unavailable

206

$

$

Currently unavailable

208

Murray MU643629

Drive Pin

$

$

Currently unavailable

270

Murray MU671325-848

Crossbar, Assy. Front

$

$

Currently unavailable

272

Murray MU671291

Bushing

$

$

Currently unavailable

276

Murray MU671292

Clip, Front Axle

$

$

Currently unavailable

278

Murray MU710274

SCREW, 1/4-20x.63

$

$

Currently unavailable

300

Murray MU643724

Tire & Rim

$

$

Currently unavailable

302

Murray MU710258

WASHER Spring

$

$

Currently unavailable

304

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

308

Murray MU643847

Hubcap, 8"

$

$

Currently unavailable

310

Murray MU710254

FLATWASHER

$

$

Currently unavailable

312

Murray MU671286

Gear Pinion, RH

$

$

Currently unavailable

313

Murray MU671287

Gear Pinion, LH

$

$

Currently unavailable

316

Murray MU643616

Dustcover, 8" wheel

$

$

Currently unavailable

318

Murray MU710264

SCREW, 1/4-20x.50

$

$

Currently unavailable

340

Murray MU643617

WHEEL, Drive

$

$

Currently unavailable

342

Murray MU710252

FLATWASHER

$

$

Currently unavailable

344

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

348

Murray MU643615

Hubcap, 8" Wheel

$

$

Currently unavailable
