2284 (14A-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Fuel System Parts Diagram

Super Garden Tractor

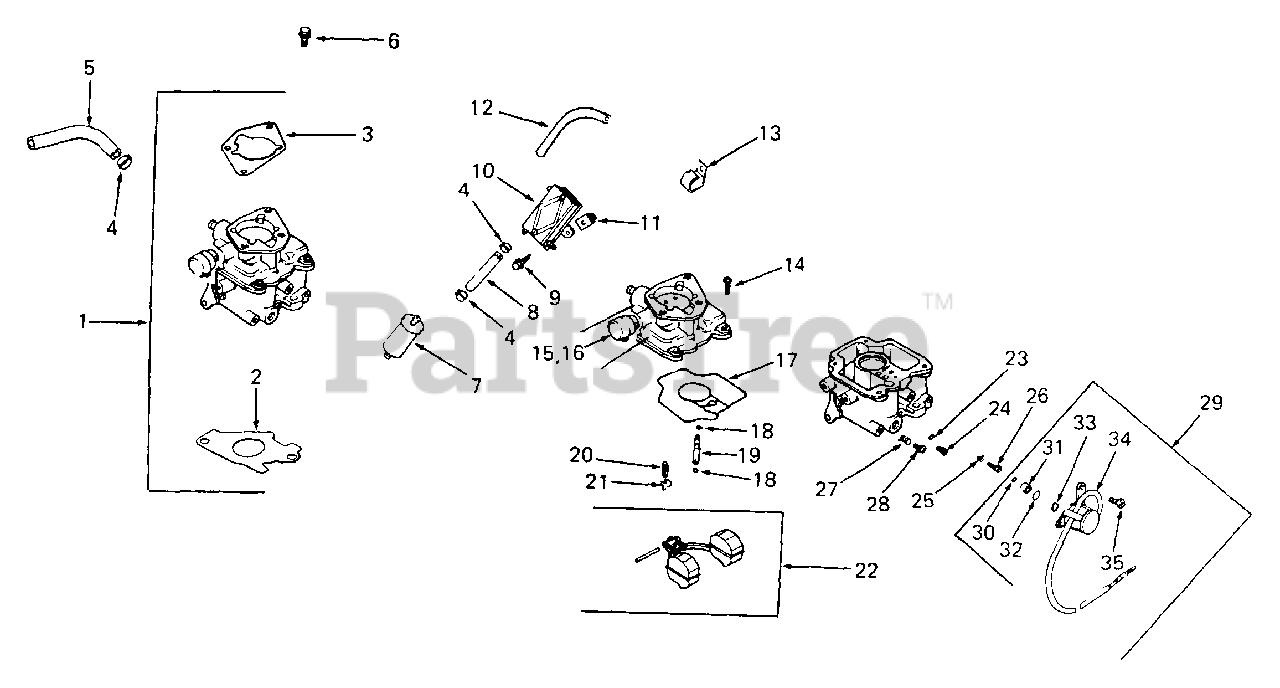

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-02

Kit, Carburetor
(Superseded to KH-24-853-32)

Note: Includes Ref No. 2, 3 & 14 thru 35

$339.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-17

Gasket, Carburetor

$

$

Not available

3

Cub Cadet KH-24-041-06

Gasket, Air Cleaner

$2.99

$

In Stock, Qty 19

0

4

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-353-02

Line, Fuel, 15-1/2"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

6

Cub Cadet KH-M-0651030

Screw, M6 x 1.0 x 18

$

$

Not available

7

Cub Cadet KH-25-050-03

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-25-353-10

Line, Fuel, 9"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-24-086-12

Screw, Hex Cap

$

$

Not available

10

Cub Cadet KH-24-393-04

Pump, Fuel-Pulse
(Superseded to KH-24-393-16)

$

$

Not available

11

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

12

Cub Cadet KH-52-353-20

Line, Fuel, 10"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

13

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-086-09

Screw, Carburetor Body

$

$

Not available

15

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Includes Ref No. 16

$

$

Not available

16

Cub Cadet KH-24-173-02

Cap, Choke Lever

$

$

Not available

17

Cub Cadet KH-24-041-09

Gasket, Carburetor Body

$

$

Not available

18

Cub Cadet KH-24-153-02

O-Ring, Slow Jet

$

$

Not available

19

Cub Cadet KH-24-337-01

Jet, Slow

$

$

Not available

20

Cub Cadet KH-24-462-01

Valve, Inlet Needle

$

$

Not available

21

Cub Cadet KH-24-154-01

Clip, Inlet Needle Valve

$

$

Not available

22

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

$133.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-24-153-03

O-Ring, Main Jet

$

$

Not available

24

Cub Cadet KH-24-337-02

Jet, Main

$

$

Not available

25

Cub Cadet KH-24-089-11

Spring, Idle Adjust

$

$

Not available

26

Cub Cadet KH-24-368-01

Needle, Idle Adjust

$

$

Not available

27

Cub Cadet KH-24-089-10

Spring, Idle Speed Adjust

$

$

Not available

28

Cub Cadet KH-24-086-10

Screw, Idle Speed Adjust

$

$

Not available

29

Cub Cadet KH-24-757-01

Kit, Solenoid Assy

Note: Includes Ref No 30 thru 35

$

$

Not available

30

Cub Cadet KH-24-153-06

O-Ring, Solenoid

$

$

Not available

31

Cub Cadet KH-24-521-01

Seat, Solenoid

$

$

Not available

32

Cub Cadet KH-24-153-05

O-Ring, Solenoid

$

$

Not available

33

Cub Cadet KH-24-153-04

O-Ring, Solenoid

$

$

Not available

34

Cub Cadet KH-24-435-01

Solenoid
(Superseded to KH-24-435-01-S)

$217.99

$

In Stock, only 1 left!

0

35

Cub Cadet KH-24-086-07

Screw, Solenoid

$

$

Not available

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-01

Kit, High Altitude

Note: 1500 meters

$

$

Not available

Cub Cadet KH-24-755-02

Kit, High Altitude

Note: 3000 meters

$

$

Not available
