2284 (14A-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Battery And Electrical Components Parts Diagram

Super Garden Tractor

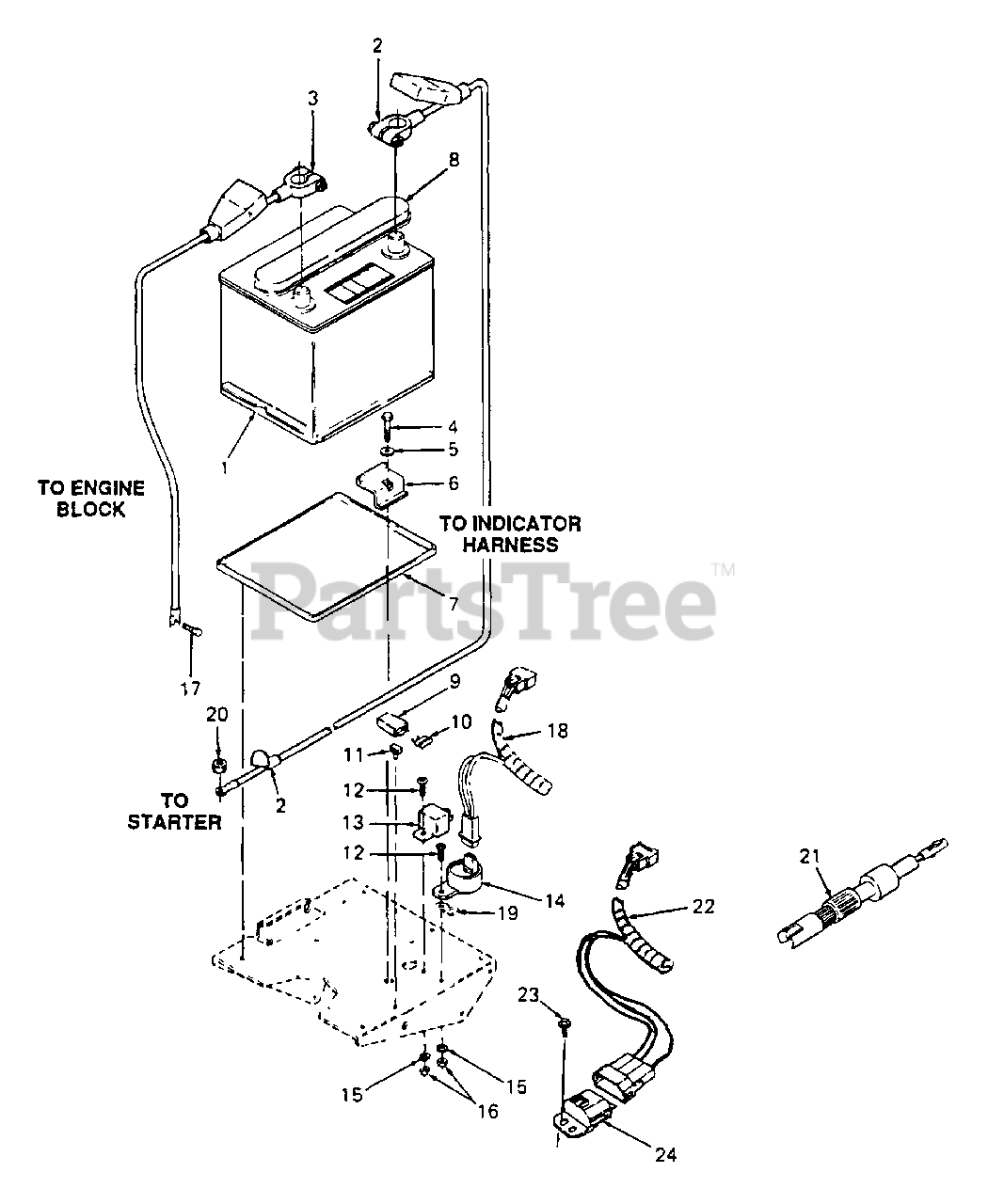

Battery And Electrical Components Parts Diagram

  • Title

1

Cub Cadet 725-3174

Battery
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-3220

Cable, Positive Battery

$

$

Not available

3

Cub Cadet 725-3221

Cable, Negative Battery

$

$

Not available

4

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.38 Lg

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0275

Washer, Flat, .34 x .68 x .062 Thk

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-1823

Hold Down, Battery
(Superseded to 703-1823-0716)

Variations

Cub Cadet 703-1823-0716

Battery Hold-Down - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 731-3105

Tray, Battery

$

$

Not available

8

Cub Cadet 759-3653

Cap, Battery Vent

$

$

Not available

Cub Cadet 759-3654

Tube, Battery Vent

$

$

Not available

9

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

10

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

11

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available

12

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 x .50 Lg

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 725-1375

Relay
(Superseded to 925-1375)

$71.99

$

In Stock, Qty 6

0

14

Cub Cadet 725-3165

Indicator, Voltage
(Superseded to 929-3080)

Note: Serial no. 880,000 & below

$

$

Not available

15

Cub Cadet 736-0722

Washer, Lock, #10

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0121

Nut, Hex, #10-24

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3175

Screw, Hex Cap, M8-1.25 x 14 MM Lg

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-3248

Harness, Main Wire
(Superseded to 759-04006)

Note: Serial no. 880,000 & below

$369.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 725-3147

Lug, Quick Connect

Note: Serial no. 880,000 & below

$

$

Not available

20

Cub Cadet 712-3077

Nut, Hex, M8-1.25 GR8.8

$

$

Not available

21

Cub Cadet 759-3675

Diode Assy

Note: Located in upper connector block of main harness

$

$

Not available

22

Cub Cadet 629-3024

Harness, Main Wire

Note: Serial no. 880,001 & above

$405.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0599

Screw, Hex Wash Hd TT, 1/4-20 x .50 Lg

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 725-3251

Module, Voltage Sensor
(Superseded to 925-3251)

Note: Serial no. 880.001 & above

$49.99

$

In Stock, only 1 left!

0
