2284 (14A-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Air Intake/Filtration Parts Diagram

Super Garden Tractor

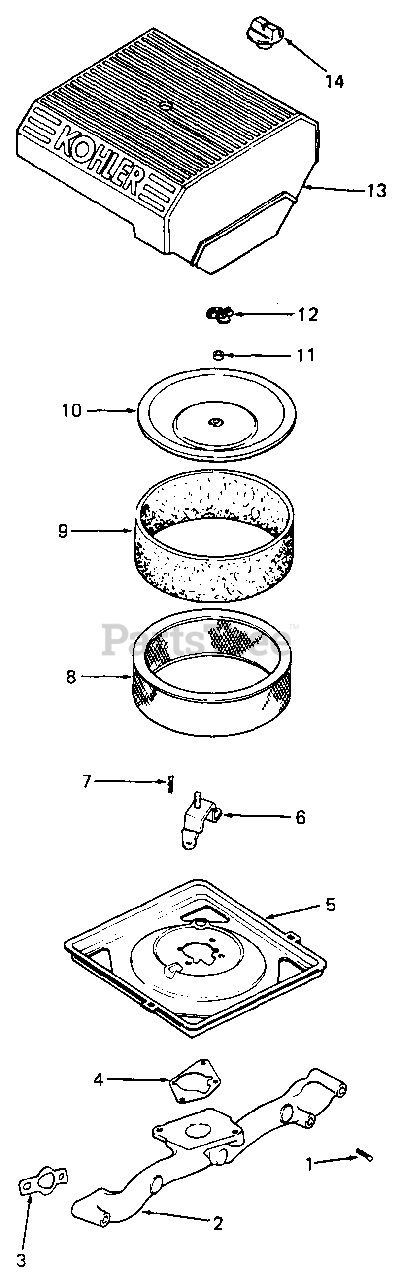

Air Intake/Filtration Parts Diagram

  • Title

1

Cub Cadet KH-M-0639055

Screw, M6 x 1.0 x 18
(Superseded to KH-25-086-84-S)

$2.49

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-164-14

Manifold, Intake

$

$

Not available

3

Cub Cadet KH-24-041-01

Gasket, Intake Manifold
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 9

0

4

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-094-03

Base, Air Cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-126-21

Bracket, Air Cleaner
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, Qty 7

0

7

Cub Cadet KH-M-0639016

Screw, M6 x 1.0 x 13
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-47-083-03

Element, Air Cleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-24-083-02

Element, Pre-Cleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

11

Cub Cadet KH-24-032-03

Seal, Air Intake

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KH-12-100-01

Nut, Wing

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-24-096-31

Cover, Air Cleaner
(Superseded to KH-24-096-69-S)

$47.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-113-24

Decal, Horsepower

$

$

Currently unavailable

14

Cub Cadet KH-25-341-02

Knob, Cover
(Superseded to KH-25-341-03)

$

$

Not available
