2284 (146-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Frame Parts Diagram

Super Garden Tractor

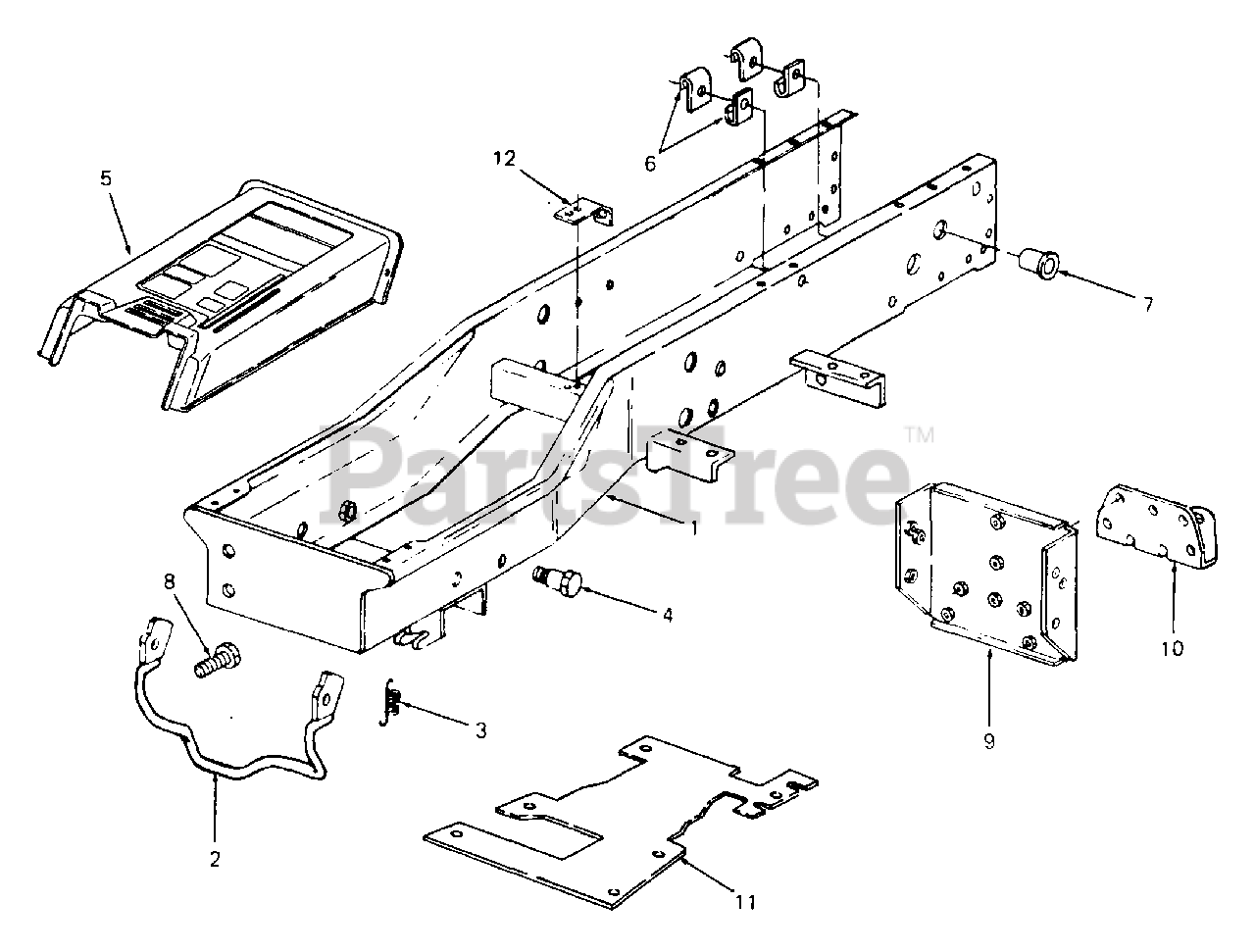

Frame Parts Diagram

  • Title

1

Cub Cadet 703-2012

Frame Assy
(Superseded to 703-2012-0498)

Variations

Cub Cadet 703-2012-0498

FRAME ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 711-3005

Bushing, Front Axle Pivot Pin

$

$

Not available

Cub Cadet 779-3334

Label, Do Not Tow

$

$

Not available

2

Cub Cadet 703-1726

Latch Assy, Quick
(Superseded to 703-1726-0498)

Variations

Cub Cadet 703-1726-0498

LATCH ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 711-3010

Pin, Clevis, 3/8 Dia x 1.06 Lg
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia x .75 Lg

$4.49

$

In Stock, Qty 12

0

3

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

4

Cub Cadet 738-3001

Bolt, Shoulder

$

$

Not available

Cub Cadet 736-3003

Washer, Flat, .531 x .688 x .054 Thk

$

$

Not available

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .060 Thk

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 731-3119

Cover, Frame

$

$

Not available

Cub Cadet 777-2683

Graphic, Frame Cover

$

$

Not available

Cub Cadet 710-0351

Screw, Truss Mach Tapp, #10 x .50 Lg

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 x .50 Lg GR5

$

$

Not available

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 723-3042

Bushing, Snap

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 710-3182

Screw, Adjustment, 1/2-20 x 1.0 Lg GR5

$

$

Not available

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20 GR5

$6.99

$

In Stock, Qty 6

0

9

Cub Cadet 703-1943

Plate Assy, Hitch

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 x .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 703-0904

Draw Bar
(Superseded to 703-0904-0498)

Variations

Cub Cadet 703-0904-0498

BAR-DRAW - OLD CUB YELLOW (0498)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 x .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 703-2156

Baffle, Lower Frame

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0896

Screw, Hex AB Tapp, 1/4 x .62 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 703-0026B

Bracket, Switch
(Superseded to 703-0026C)

$

$

Not available

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X.75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0
