2284 (145-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Oil Pan/Lubrication Parts Diagram

Super Garden Tractor

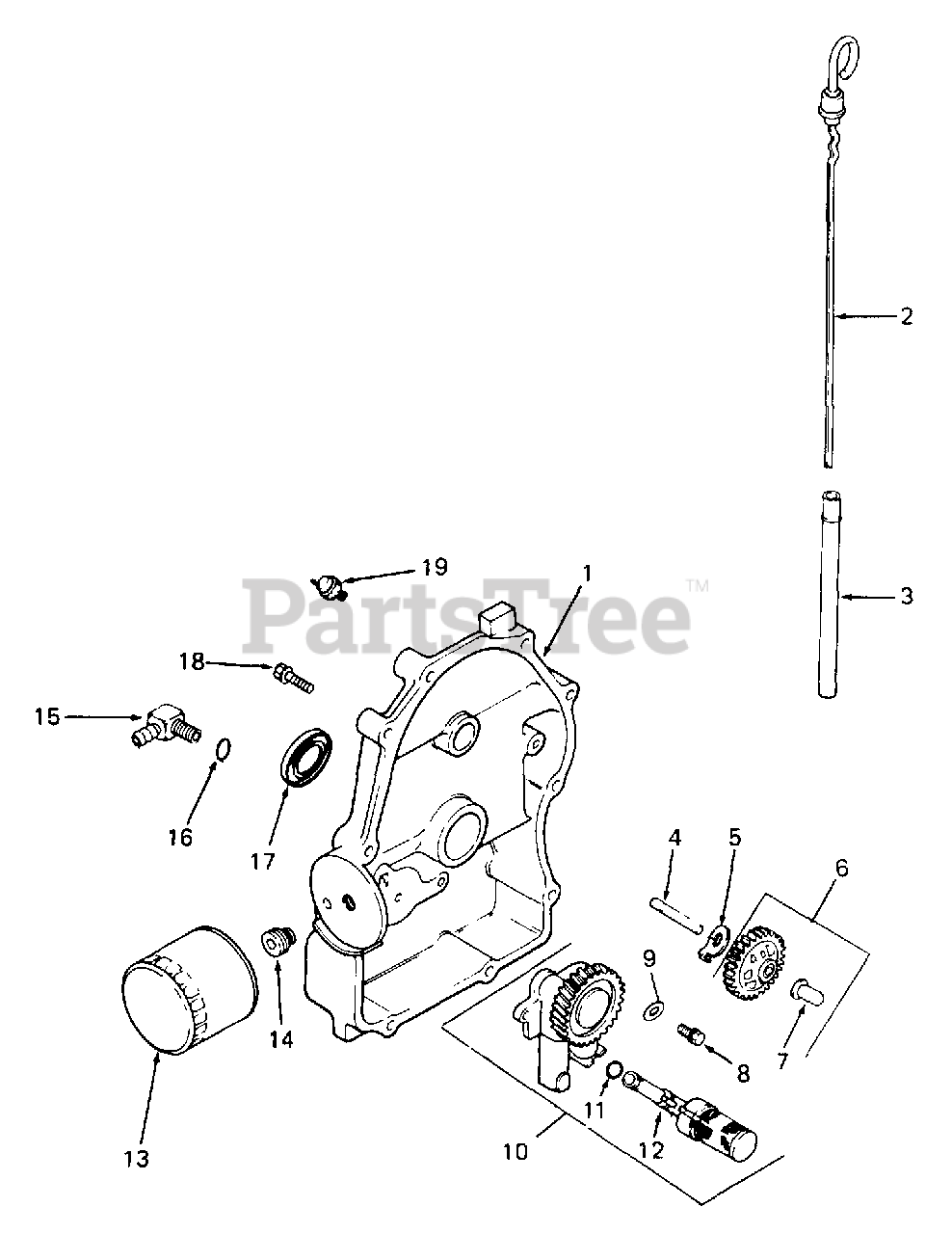

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-87

Plate, Closure
(Superseded to KH-24-009-160-S)

$

$

Not available

2

Cub Cadet KH-24-038-03

Dipstick
(Superseded to KH-24-755-121-S)

$35.99

$

In Stock, Qty 6

0

3

Cub Cadet KH-24-123-04

Tube, Dipstick
(Superseded to KH-24-755-121-S)

$35.99

$

In Stock, Qty 6

0

4

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

5

Cub Cadet KH-52-448-02

Tab, Locking
(Superseded to KH-24-448-01-S)

$2.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-24-043-12

Kit, Governor Gear w/Pin

Note: Includes Ref No. 7

$

$

Not available

7

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

8

Cub Cadet KH-M-0645025

Screw, M6 x 1.0 x 25
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-M-631005

Washer, Plain

$

$

Not available

10

Cub Cadet KH-24-393-03

Oil Pump Assembly

Note: Includes Ref No. 11 & 12

$

$

Not available

11

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

12

Cub Cadet KH-24-381-01

Pick-Up, Oil
(Superseded to KH-24-381-03)

$

$

Not available

13

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-25-155-02

Connector, 90ø Hose

$

$

Not available

16

Cub Cadet KH-24-153-08

O-Ring, Oil Passage

$

$

Not available

17

Cub Cadet KH-52-032-08

Seal, Oil
(Superseded to KH-25-032-06-S)

Note: (PTO end)

$10.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-16

Screw, Closure Plate, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

19

Cub Cadet KH-52-099-06

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-25-113-05

Decal, Oil Sentry

$

$

Not available
