2284 (145-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Engine Mounting, Muffler And Air Duct Parts Diagram

Super Garden Tractor

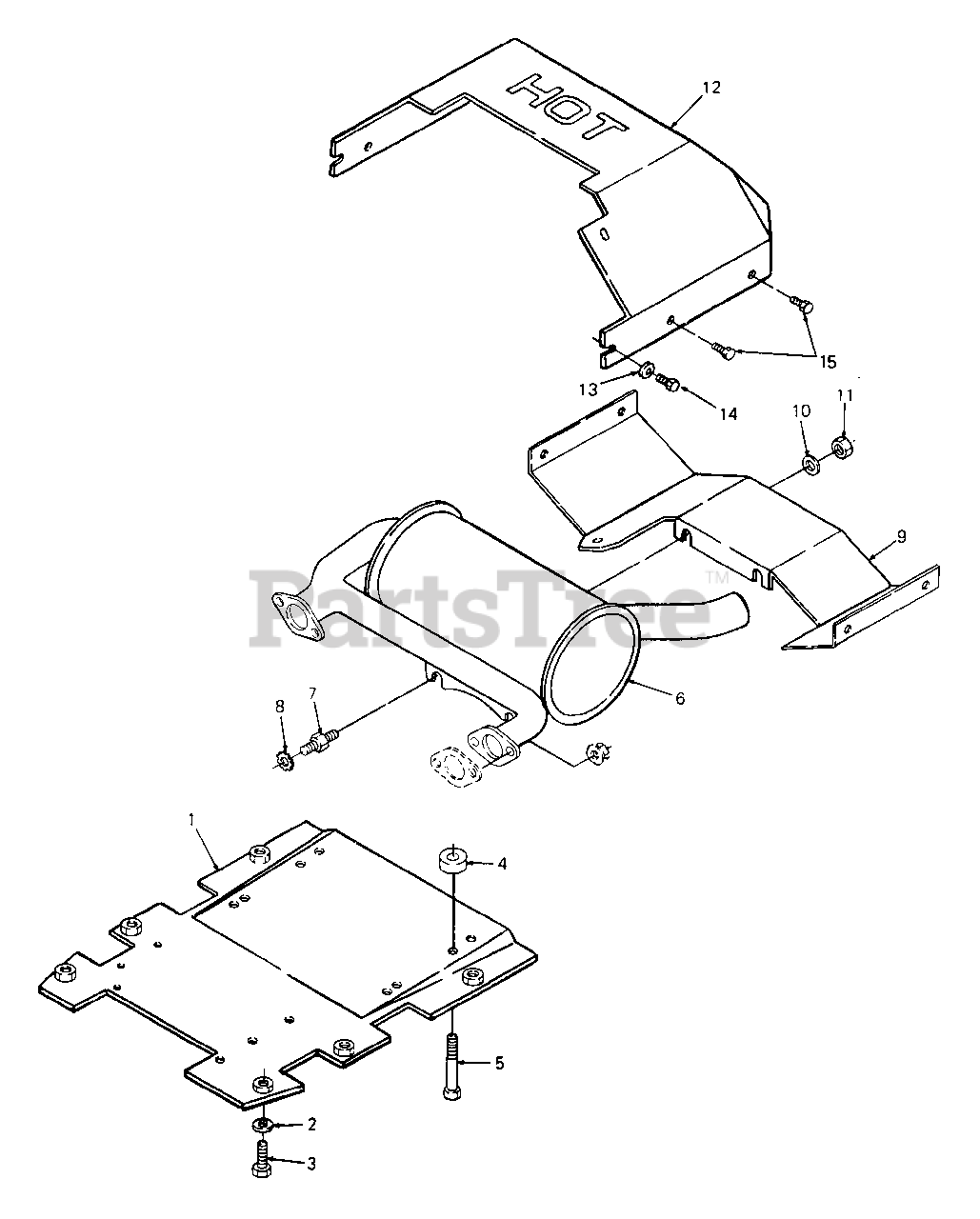

Engine Mounting, Muffler And Air Duct Parts Diagram

  • Title

1

Cub Cadet 603-0025

Plate Assy, Engine Mounting

Variations

Cub Cadet 603-0025-0498

PLATE ASSEMBLY-ENG MTG(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0025-0499

PLATE ASSY, ENGINE MOUNTING - CUB BEIGE (0499)

$

$

Not available

$

$

2

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .06 Thk

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3118

Bolt, Patch, 3/8-16 x 1.0 Lg

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 750-3009

Spacer, .423 x 1.0 x .469 Lg
(Superseded to 950-3009)

$12.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-3124

Bolt, Patch, 3/8-16 x 2.25 Lg

$

$

Not available

6

Cub Cadet 751-3110

Muffler

$

$

Not available

7

Cub Cadet 711-3006

Stud, 7/16-14 UNC-2A Thd

$

$

Not available

8

Cub Cadet 736-3086

Washer, External Lock, .45 x .75 x .03 Thk

$

$

Not available

9

Cub Cadet 703-2176

Shield, Heat

Variations

Cub Cadet 703-2176-0637

DUCTING-MUFFLER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 736-3024

Washer, Flat, .47 x .750 x .0605 Thk

$3.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-2177

Duct, Engine

$

$

Not available

13

Cub Cadet 736-0142

Washer, Flat, .281 x .50 x .063 Thk

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3209

Bolt, Hex, M6-1.0 x 10 MM Lg GR5

$8.49

$

In Stock, Qty 13

0

15

Cub Cadet 710-0224

Screw, Hex Wash Hd Tapp, #10 x .50 Lg
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0
