22815x31A - Scotts 22" Walk-Behind Mower (2001) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

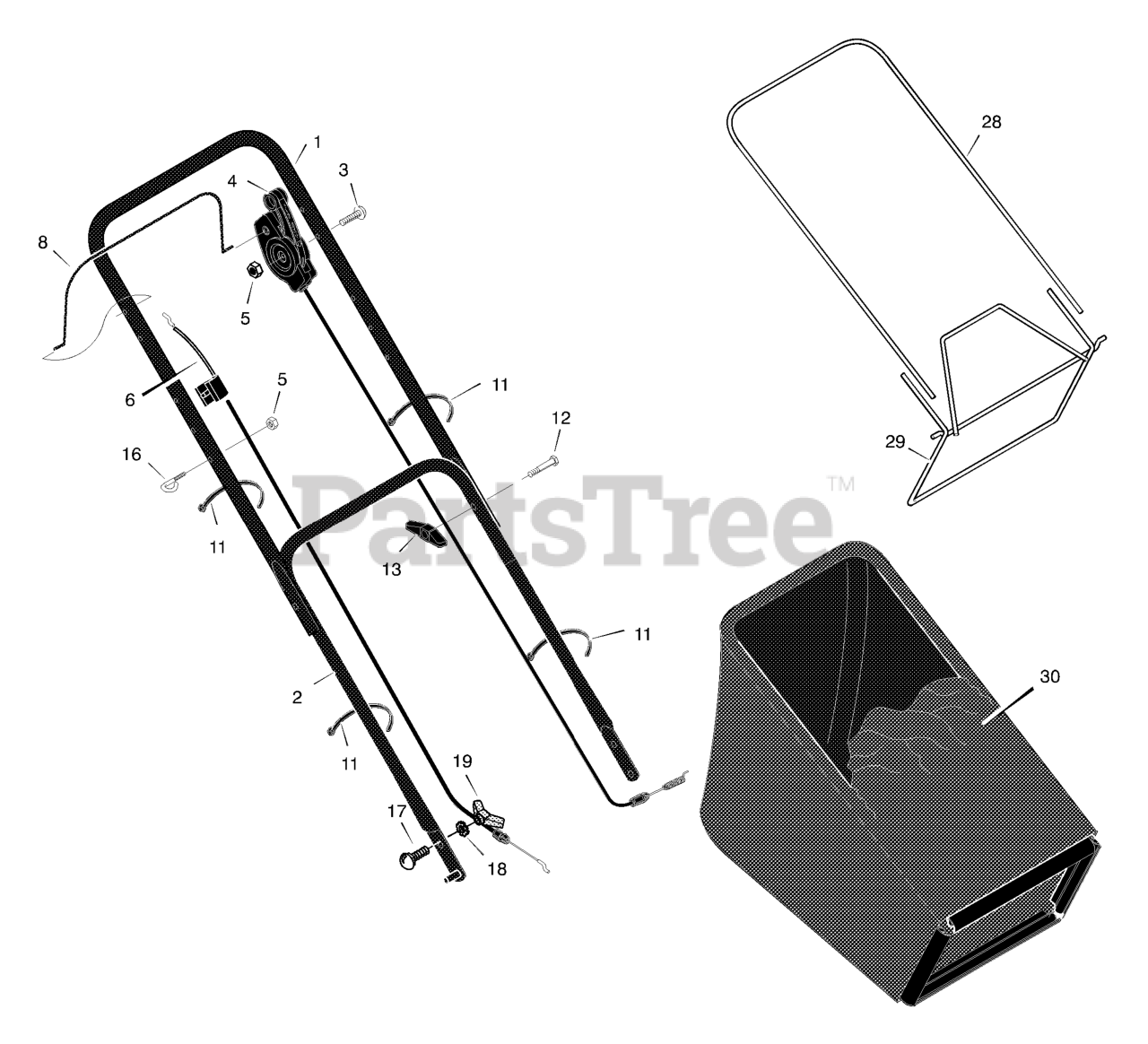

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101099E724

Handle, Upper

$

$

Not available

2

Murray 1101082E724

Handle, Lower

$

$

Currently unavailable

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672882MA

Control, Drive

$54.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672881MA

Cable, Stop

$18.99

$

Usually ships in 2-12 days

0

8

Murray 1101076E122

Engine Stop Lever

$4.49

$

Usually ships in 2-12 days

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

17

Murray 1101104MA

Bolt, Carriage

$3.99

$

In Stock, only 2 left!

0

18

Murray 0019X8MA

Washer
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 1101106MA

Knob, Plastic

$4.49

$

Usually ships in 2-12 days

0

28

Murray 1101075MA

Frame, Top

$113.99

$

Usually ships in 2-12 days

0

29

Murray 1101083

Frame Assembly

$

$

Currently unavailable

30

Murray 1101085MA

Bag, Cloth
(Superseded to 1101035MA)

$

$

Not available
