22805 - Toro Auger Head for Dingo Compact Utility Loader (SN: 310000001 - 310999999) (2010) AUGER HEAD ASSEMBLY Parts Diagram

Auger Head for Dingo Compact Utility Loader

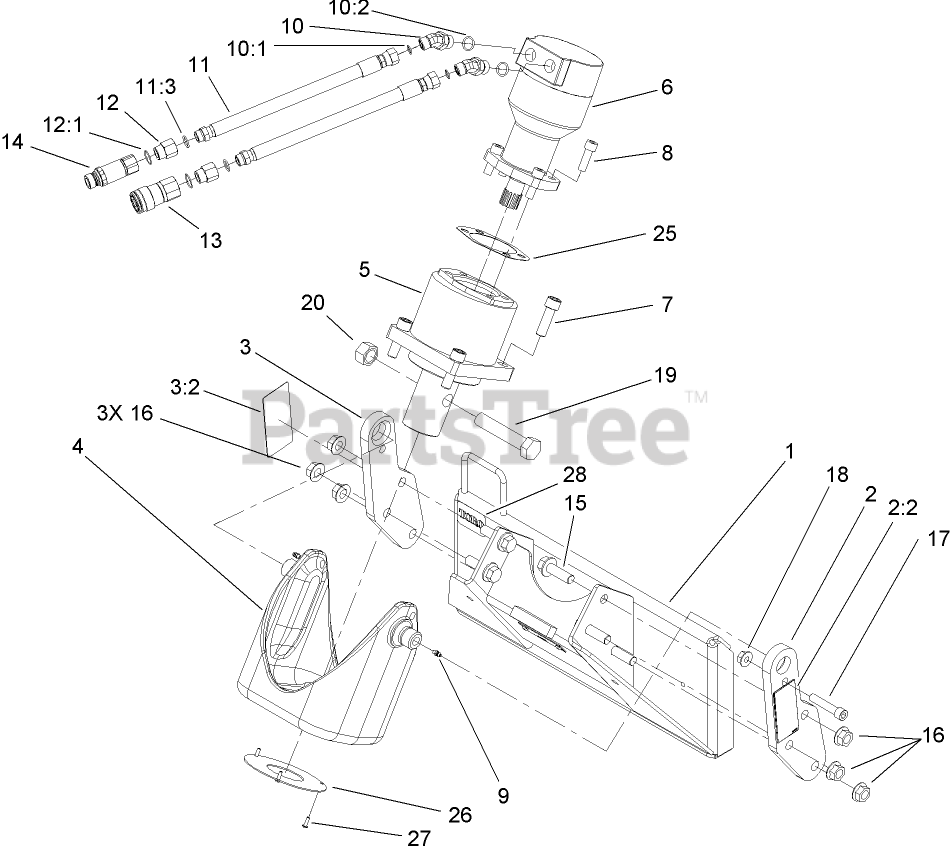

AUGER HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 107-9362-03

AUGER MOUNT ASM

$881.99

$

Usually ships in 3-6 days

0

2

Toro 106-7688

PLATE-PIVOT, LH

$293.99

$

Usually ships in 3-6 days

0

2:2

Toro 105-0326

DECAL-DANGER

$16.99

$

Usually ships in 3-6 days

0

3

Toro 106-7689

PLATE-PIVOT, RH

$293.99

$

Usually ships in 3-6 days

0

3:2

Toro 105-0326

DECAL-DANGER

$16.99

$

Usually ships in 3-6 days

0

4

Toro 107-9354-03

YOKE-AUGERHEAD

$796.99

$

Usually ships in 3-6 days

0

5

Toro 107-9352-03

PLANETARY DRIVE ASM

$2597.99

$

Usually ships in 3-6 days

0

6

Toro 107-9351

MOTOR-HYD

$2394.99

$

Usually ships in 3-6 days

0

7

Toro 107-9365

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0

8

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 340-89

FITTING-HYD, 45 DEG

$44.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

10:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

11

Toro 105-0321

HYD HOSE ASM

$345.99

$

Usually ships in 3-6 days

0

11:3

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

12

Toro 100-4617

ADAPTER-HYD

$21.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

13

Toro 104-6134

COUPLER-FACE, FLUSH

$267.99

$

Usually ships in 3-6 days

0

13:1

Toro 105-8396

SEAL KIT
(Superseded to 106-7692)

Note: Not illustrated

$240.99

$

Usually ships in 3-6 days

0

14

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

14:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

15

$17.99

$

Usually ships in 3-6 days

0

16

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, Qty 14

0

17

Toro 3274-71

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

18

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

19

Toro 98-9062

SCREW

$20.99

$

Usually ships in 3-6 days

0

20

Toro 3217-15

NUT-HEX

$16.99

$

Usually ships in 3-6 days

0

25

Toro 99-5032

GASKET

$40.99

$

Usually ships in 3-6 days

0

26

Toro 107-9359-03

PLATE-GUARD, SEAL

$18.99

$

In Stock, only 1 left!

0

27

Toro 3274-39

SCREW-HSBH

$5.99

$

In Stock, only 2 left!

0

28

Toro 92-7981

DECAL

$6.99

$

Usually ships in 3-6 days

0
