22804 - Toro Auger Head for Dingo TX 413 Compact Utility Loader (SN: 280000001 - 280999999) (2008) AUGER HEAD ASSEMBLY Parts Diagram

Auger Head for Dingo TX 413 Compact Utility Loader

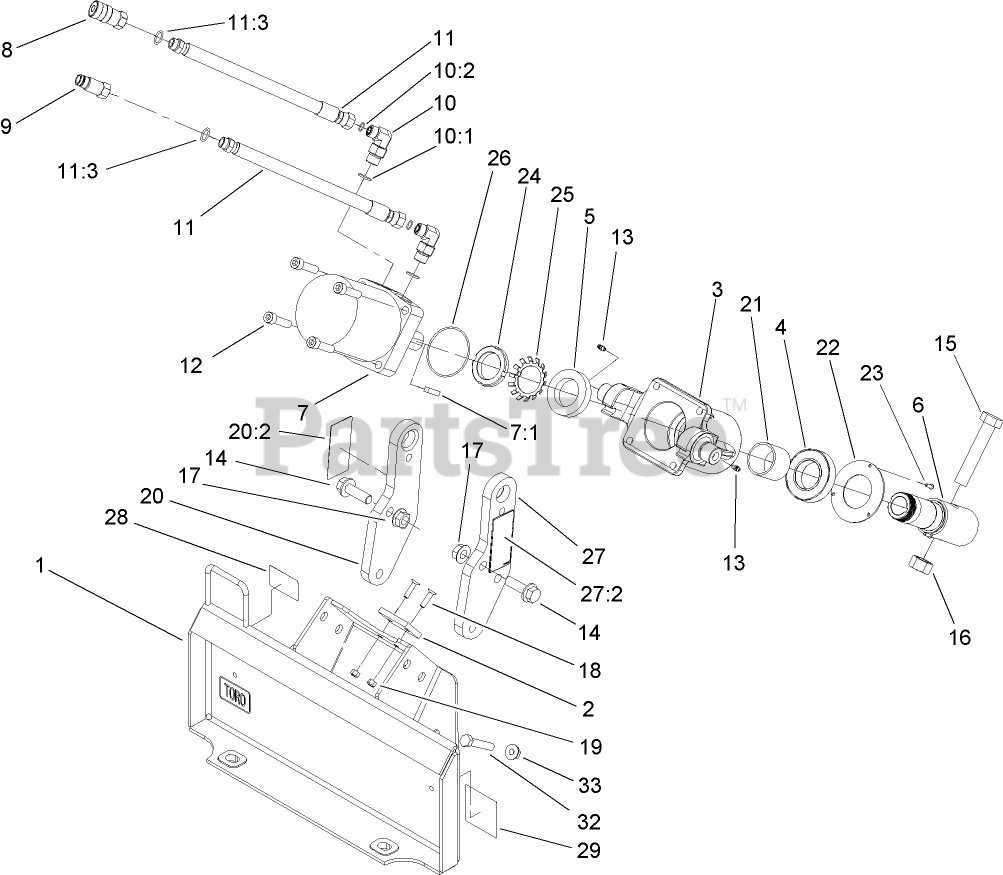

AUGER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7065-03

FRAME ASM

$

$

Not available

2

Toro 99-2653

PAD-STOP

$12.99

$

Usually ships in 3-6 days

0

3

Toro 105-7109-03

AUGER HOUSING

$

$

Not available

4

Toro 104-6112

BEARING

$184.99

$

Usually ships in 3-6 days

0

5

Toro 102914

BEARING

$275.99

$

Usually ships in 3-6 days

0

6

Toro 105-7105

SHAFT-AUGER

$

$

Not available

7

Toro 104-6113

MOTOR-HYDRAULIC

$

$

Not available

7:1

Toro 100-5863

KEY

$

$

Not available

7:2

Toro 107-9304

KIT-SEAL (Not illustrated)

$

$

Not available

8

Toro 104-6115

COUPLER-FEMALE

$285.99

$

Usually ships in 3-6 days

0

8:1

Toro 107-9300

KIT-SEAL, COUPLER (Not illustrated)

$98.99

$

Usually ships in 3-6 days

0

9

Toro 104-6114

NIPPLE-CONNECTOR

$142.99

$

Usually ships in 3-6 days

0

9:1

Toro 107-9301

KIT-SEAL, NIPPLE (Not illustrated)

$97.99

$

Usually ships in 3-6 days

0

10

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 1 left!

0

10:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

10:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

11

Toro 105-0321

HYD HOSE ASM

$345.99

$

Usually ships in 3-6 days

0

11:3

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

12

Toro 3274-5

SCREW-HSH

$5.49

$

In Stock, only 1 left!

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 104-5870

SCREW

$17.99

$

Usually ships in 3-6 days

0

15

Toro 98-9062

SCREW

$20.99

$

Usually ships in 3-6 days

0

16

Toro 3217-15

NUT-HEX

$16.99

$

Usually ships in 3-6 days

0

17

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

18

Toro 32108-103

SCREW-FH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 106-7688

PLATE-PIVOT, LH

$293.99

$

Usually ships in 3-6 days

0

20:2

Toro 105-0326

DECAL-DANGER

$16.99

$

Usually ships in 3-6 days

0

21

Toro 106-7583

SPACER-BEARING

$22.99

$

Usually ships in 3-6 days

0

22

Toro 106-7582-03

PLATE-PROTECTOR, BEARING

$17.99

$

Usually ships in 3-6 days

0

23

Toro 3274-39

SCREW-HSBH

$5.99

$

In Stock, only 3 left!

0

24

Toro 106-7609

NUT-BEARING

$

$

Not available

25

Toro 106-7608

LOCKWASHER-BEARING

$57.99

$

Usually ships in 3-6 days

0

26

Toro 237-161

O-RING

$8.99

$

In Stock, only 1 left!

0

27

Toro 106-7689

PLATE-PIVOT, RH

$293.99

$

Usually ships in 3-6 days

0

27:2

Toro 105-0326

DECAL-DANGER

$16.99

$

Usually ships in 3-6 days

0

28

Toro 92-7981

DECAL

$6.99

$

Usually ships in 3-6 days

0

29

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

32

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

33

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0
