22801 - Toro Universal Swivel Auger Head for Dingo and Dingo TX (SN: 200000001 - 200999999) (2000) AUGER HEAD ASSEMBLY Parts Diagram

Universal Swivel Auger Head for Dingo and Dingo TX

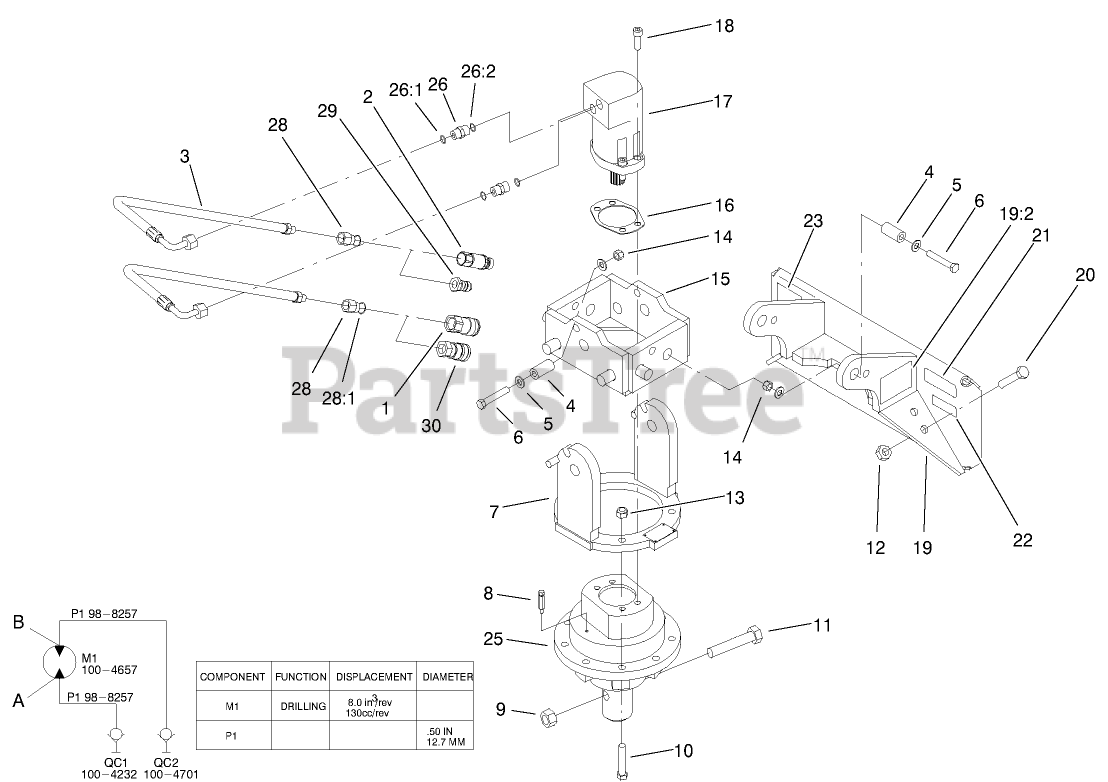

AUGER HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

1:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

2

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

3

Toro 98-8257

HOSE - HYDRAULIC

$

$

Not available

4

Toro 99-1406

PIN - PIVOT

$29.99

$

Usually ships in 3-6 days

0

5

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

7

Toro 98-8258

HOUSING - DRIVE

$

$

Not available

8

Toro 98-8261

BREATHER ASM

$

$

Not available

9

Toro 3217-15

NUT-HEX

$16.99

$

Usually ships in 3-6 days

0

10

Toro 326-1

SCREW-HH

$

$

Not available

11

Toro 98-9062

SCREW

$20.99

$

Usually ships in 3-6 days

0

12

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

13

Toro 98-2703

LOCKNUT
(Superseded to 99-4371)

$5.49

$

Usually ships in 3-6 days

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 100-4104

SWIVEL GIMBEL ASM

$1922.99

$

Usually ships in 3-6 days

0

16

Toro 99-5032

GASKET

$40.99

$

Usually ships in 3-6 days

0

17

Toro 100-4657

HYDRAULIC MOTOR ASM

$

$

Not available

18

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

19

Toro 100-4659

AUGER MOUNT ASM,

$

$

Not available

19:2

Toro 99-9942

DECAL-WARNING

$

$

Not available

20

Toro 327-14

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

21

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

22

Toro 99-9992

DECAL-INFO

$

$

Not available

23

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

25

Toro 98-8260

DRIVE-GEAR, PLANETARY

$13271.99

$

Usually ships in 3-6 days

0

26

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

26:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

26:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

28

Toro 100-4617

ADAPTER-HYD

$21.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

29

Toro 100-4702

DISCONNECT-QUICK, MALE

$

$

Not available

30

Toro 100-4703

DISCONNECT-QUICK, FEMALE

$

$

Not available

30:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available
