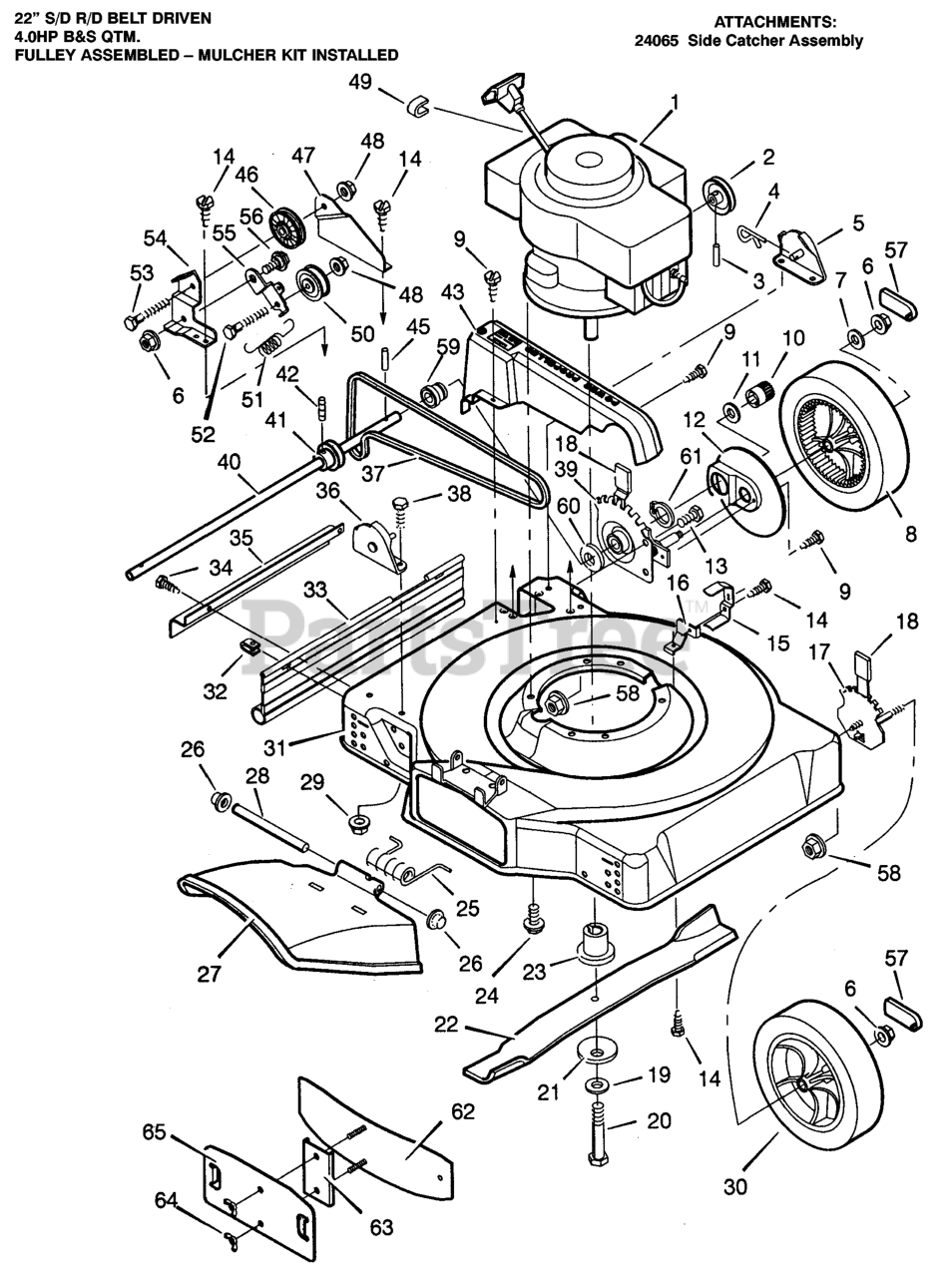

22775x8A - Murray 22" Walk-Behind Mower (1994) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 122782-3320-01

Engine *

$

$

Currently unavailable

2

Murray 71434

Pulley

$16.99

$

Usually ships in 2-12 days

0

3

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

4

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

5

Murray 42713E700

Bracket, Left Handle

$6.99

$

Usually ships in 2-12 days

0

6

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

8

Murray 43617

Wheel, Drive

$

$

Currently unavailable

9

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

10

Murray 43630

Gear, Right Pinion
(Superseded to 43630GS)

$74.99

$

Usually ships in 2-12 days

0

--

Murray 43631

Gear, Left Pinion

$

$

Currently unavailable

11

Murray 17X139MA

Washer

$3.49

$

Usually ships in 2-12 days

0

12

Murray 71032

Cover, Dust

$9.49

$

Usually ships in 2-12 days

0

13

Murray 001X85MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

14

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

15

Murray 71051 Z

Guide, Belt

$

$

Currently unavailable

16

Murray 71049 Z

Belt Guide, Briggs

Note: (For Models with Briggs & Stratton engines)

$

$

Currently unavailable

--

Murray 71050 Z

Belt Guide, Tecumseh

Note: (For Models with Tecumseh engines)

$

$

Currently unavailable

17

Murray 401024

Height Adjuster, Front

$2.49

$

Usually ships in 3-10 days

0

18

Murray 43394

Grip

$

$

Not available

19

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

20

Murray 01X143MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

21

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

22

Murray 71113E701

Blade

$

$

Not available

23

Murray 71057

Adapter, Blade

$22.99

$

Usually ships in 2-12 days

0

24

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

25

Murray 0166X5MA

Spring, Torsion

$3.99

$

Usually ships in 2-12 days

0

26

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

27

Murray 42919

Deflector, Chute

$4.49

$

Usually ships in 2-12 days

0

28

Murray 215X11 Z

Rod

$

$

Currently unavailable

29

Murray 015X82MA

Nut

$3.49

$

Usually ships in 2-12 days

0

30

Murray 43618

Wheel and Tire, Front

$36.99

$

In Stock, only 4 left!

0

31

Murray 70133

Housing

$

$

Currently unavailable

32

Murray 42743

Retainer

$

$

Not available

33

Murray 71033

Deflector, Rear

$

$

Not available

34

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

35

Murray 71034

Guard, Axle
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

36

Murray 42712E700

Bracket, Right Handle

$

$

Not available

37

Murray 037X72MA

Belt, Briggs & Stratton

Note: (For Models with Briggs & Stratton engines)

$21.99

$

Usually ships in 2-12 days

0

--

Murray 037X73MA

Belt, Tecumseh

Note: (For Models with Tecumseh engines)

$15.99

$

Usually ships in 2-12 days

0

38

Murray 001X38MA

Bolt

$4.49

$

In Stock, Qty 18

0

39

Murray 401023MA

Height Adjuster, Left

$21.99

$

Usually ships in 2-12 days

0

--

Murray 401022MA

Height Adjuster, Right

$59.99

$

Usually ships in 2-12 days

0

40

Murray 71465 Z

Axle

$

$

Currently unavailable

41

Murray 71052

Axle, Pulley & Setscrew

$20.99

$

Usually ships in 2-12 days

0

42

Murray 023X50

Setscrew

$

$

Currently unavailable

43

Murray 71024

Belt Guard, Briggs

Note: (For Models with Briggs & Stratton engines)

$

$

Not available

--

Murray 71025

Belt Guard, Tecumseh

Note: (For Models with Tecumseh engines)

$

$

Not available

45

Murray 43629

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

46

Murray 71055

Pulley, Idler

$1032.99

$

Usually ships in 2-12 days

0

47

Murray 71046 Z

Support, Idler

$

$

Currently unavailable

48

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

49

Murray 42189

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

50

Murray 71054

Pulley, Idler

$

$

Not available

51

Murray 165X94MA

Spring, Extension

$20.99

$

Usually ships in 2-12 days

0

52

Murray 01X141MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

53

Murray 01X102

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

54

Murray 71045 Z

Bracket, Idler

$

$

Currently unavailable

55

Murray 71026 Z

Arm, Idler

$

$

Currently unavailable

56

Murray 009X48

Bolt, Shoulder

$7.49

$

Usually ships in 2-12 days

0

57

Murray 43615

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

58

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

59

Murray 70250

Bearing and Retainer

$34.99

$

Usually ships in 2-12 days

0

60

Murray 17X178MA

Washer, Belleville

$4.99

$

Usually ships in 2-12 days

0

61

Murray 011X24MA

Retainer Ring

$4.49

$

Usually ships in 2-12 days

0

62

Murray 71110 Z

Baffle

$

$

Currently unavailable

63

Murray 71112 Z

Spacer

$

$

Currently unavailable

64

Murray 014X81MA

Wingnut

$6.99

$

Usually ships in 2-12 days

0

65

Murray 71108 Z

Cover

$

$

Currently unavailable

--

Murray F-94402

Book, Instruction

$

$

Currently unavailable
