22757x18A - Murray 22" Walk-Behind Mower (1997) Handle Assembly Parts Diagram

22" Walk-Behind Mower

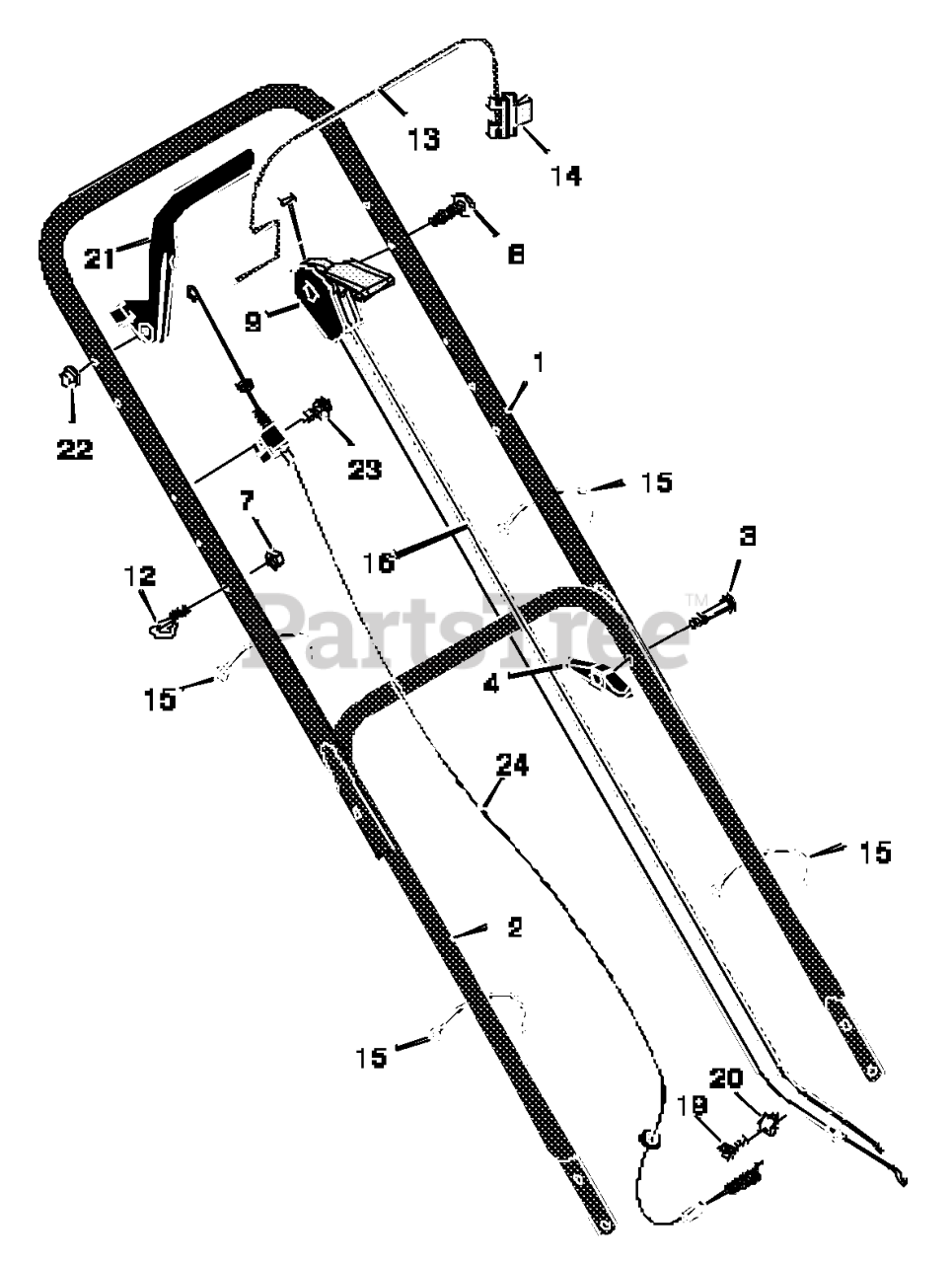

Handle Assembly Parts Diagram

  • Title

1

Murray 071581E701MA

Handle, Upper (Black)

$159.99

$

Usually ships in 2-12 days

0

2

Murray 071582E701

Handle, Lower (Black)

$

$

Currently unavailable

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 03X144

Screw

$

$

Not available

9

Murray 672145MA

Throttle Control

$19.99

$

Usually ships in 2-12 days

0

12

Murray 043956MA

GUIDE, ROPE

$

$

Not available

13

Murray 043651E700MA

Stop Lever - Straight

$27.99

$

Usually ships in 2-12 days

0

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

16

Murray 672129MA

Engine Stop Cable

$37.99

$

Usually ships in 2-12 days

0

19

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp

$

$

Not available

21

Murray 043722

Lever, Drive

$

$

Currently unavailable

22

Murray 028X48MA

Push On Cap

$4.49

$

In Stock, only 1 left!

0

23

Murray 26X256MA

Screw

$

$

Not available

24

Murray 071036MA

Cable, Drive

$27.99

$

Usually ships in 2-12 days

0
