22756x92B - Briggs & Stratton 22" Walk-Behind Mower (1997) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

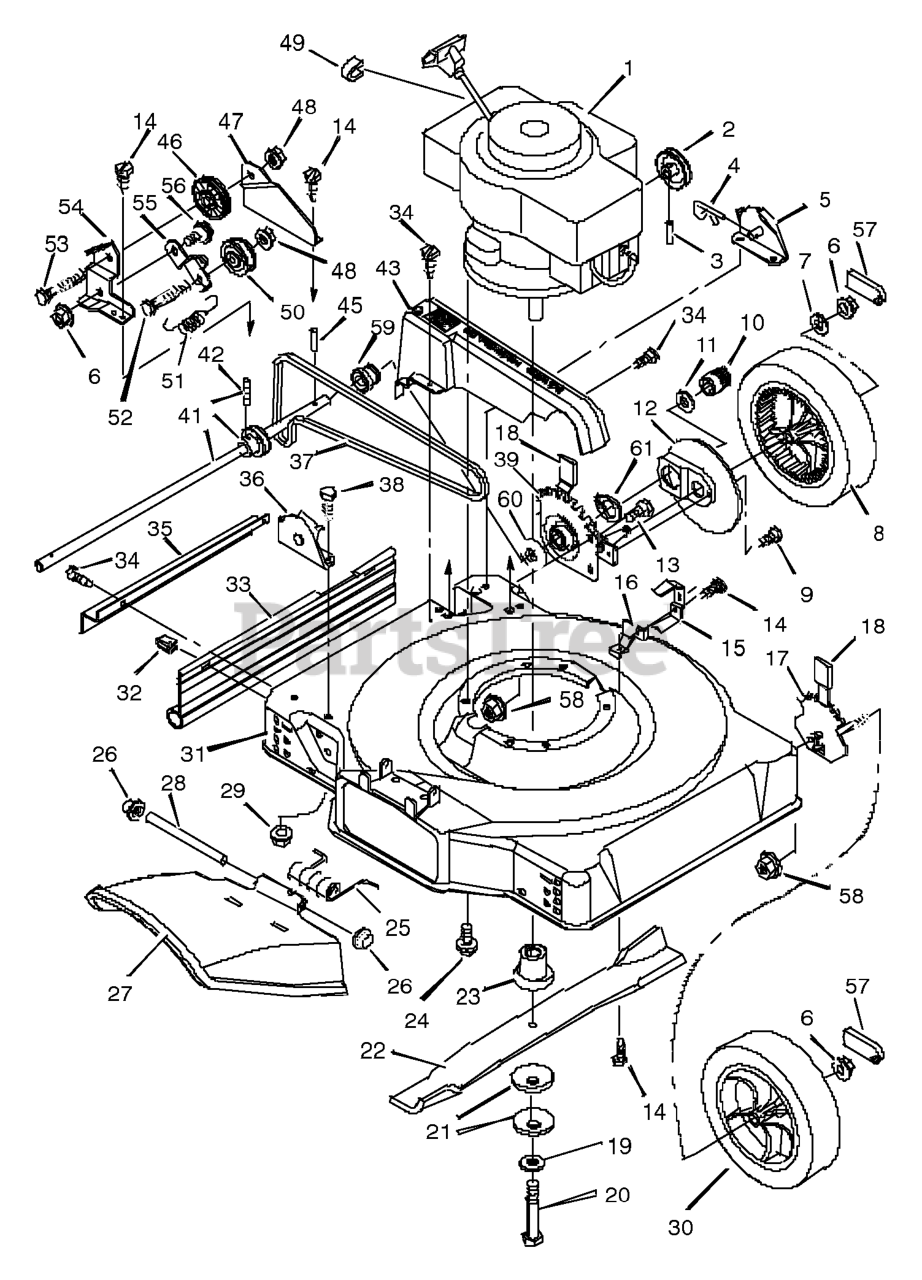

Mower Housing Assembly Parts Diagram

  • Title
1

Engine *

$

$

Not available

2

$16.99

$

Usually ships in 2-12 days

0

3

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

4

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

5

Murray 042713E700

Bracket, Left Handle

$

$

Currently unavailable

6

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

8

Murray 672208

Wheel, Drive

$

$

Currently unavailable

9

$3.49

$

Usually ships in 2-12 days

0

10

Murray 043630MA

Gear, Right Pinion

$

$

Not available

--

Murray 043631MA

Gear, Left Pinion

$5.49

$

Usually ships in 2-12 days

0

11

$3.49

$

Usually ships in 2-12 days

0

12

Murray 071032MA

Cover, Dust

$9.49

$

Usually ships in 2-12 days

0

13

Murray 001X85MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

14

$4.49

$

Usually ships in 2-12 days

0

15

Murray 071051 Z

Guide, Belt

$

$

Currently unavailable

16

Murray 071049 Z

Belt Guide, Briggs

Note: (For Models with Briggs & Stratton engines)

$

$

Currently unavailable

--

Murray 071050 Z

Belt Guide, Tecumseh

Note: (For Models with Tecumseh engines)

$

$

Currently unavailable

17

Murray 401025MA

Height Adjuster, Front

$72.99

$

Usually ships in 2-12 days

0

18

$

$

Not available

19

$4.49

$

Usually ships in 2-12 days

0

20

$3.99

$

Usually ships in 2-12 days

0

21

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

23

Murray 071057MA

Adapter, Blade

$22.99

$

Usually ships in 2-12 days

0

24

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

25

Murray 0166X5MA

Spring, Torsion

$3.99

$

Usually ships in 2-12 days

0

26

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

27

Murray 042919

Deflector, Chute

$

$

Currently unavailable

$

$

Currently unavailable

$3.49

$

Usually ships in 2-12 days

0

30

Murray 672211

Wheel and Tire, Front

$

$

Currently unavailable

31

Murray 070133

Housing

$

$

Not available

32

Murray 042743MA

Retainer

$

$

Not available

33

Murray 071033

Deflector, Rear

$

$

Currently unavailable

34

$4.49

$

In Stock, Qty 6

0

35

Murray 071034

Guard, Axle

$

$

Not available

36

Murray 42712E700

Bracket, Right Handle

$

$

Not available

37

Murray 037X72MA

Belt, Briggs & Stratton

Note: (For Models with Briggs & Stratton engines)

$21.99

$

Usually ships in 2-12 days

0

--

Murray 037X73MA

Belt, Tecumseh

Note: (For Models with Tecumseh engines)

$15.99

$

Usually ships in 2-12 days

0

38

$4.49

$

In Stock, Qty 18

0

39

Murray 401023MA

Height Adjuster, Left

$21.99

$

Usually ships in 2-12 days

0

--

Murray 401022MA

Height Adjuster, Right

$59.99

$

Usually ships in 2-12 days

0

41

Murray 071466MA

Axle, Pulley & Setscrew

$35.99

$

Usually ships in 2-12 days

0

42

Murray 023X50

Setscrew

$

$

Currently unavailable

43

Murray 071024

Belt Guard, Briggs

Note: (For Models with Briggs & Stratton engines)

$

$

Currently unavailable

--

Murray 071025

Belt Guard, Tecumseh

Note: (For Models with Tecumseh engines)

$

$

Not available

45

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

46

Murray 071055

Pulley, Idler

$3.99

$

Usually ships in 2-12 days

0

47

Murray 071046 Z

Support, Idler

$

$

Currently unavailable

48

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

49

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

50

Murray 071905

Pulley, Idler

$

$

Currently unavailable

51

Murray 165X94MA

Spring, Extension

$20.99

$

Usually ships in 2-12 days

0

52

Murray 01X141MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

53

Murray 01X102

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

54

Murray 071045 Z

Bracket, Idler

$

$

Currently unavailable

55

Murray 071026 Z

Arm, Idler

$

$

Currently unavailable

56

Murray 710200

Bolt, Shoulder

$7.99

$

Usually ships in 2-12 days

0

57

Murray 672215

Cap, Hub

$1.99

$

Usually ships in 2-12 days

0

58

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

59

Murray 070250MA

Bearing and Retainer

$34.99

$

Usually ships in 2-12 days

0

60

Murray 17X178MA

Washer, Belleville

$4.99

$

Usually ships in 2-12 days

0

61

Murray 011X24MA

Retainer Ring

$4.49

$

Usually ships in 2-12 days

0

--

Murray F-97527

Instruction Book

$

$

Currently unavailable
