22701 - Toro Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

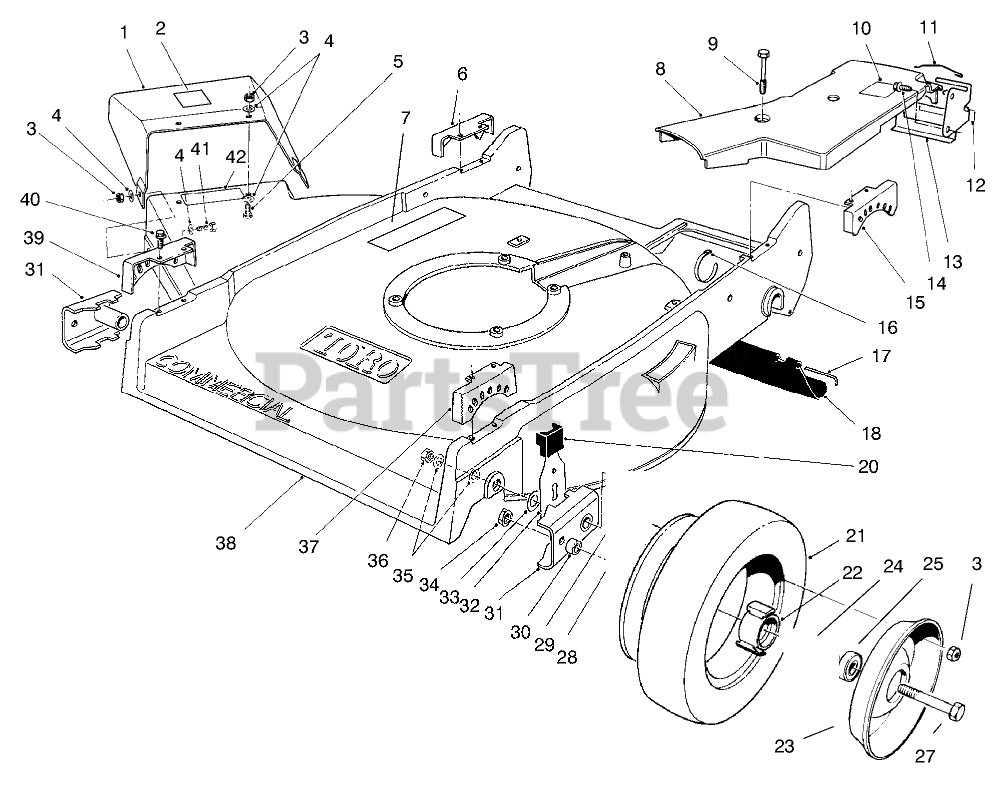

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 66-7040

Assembly-Deflector (Incl. Ref. #2)

$

$

Not available

2

Toro 93-6654

DECAL-DANGER

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 49-8750

QUADRANT-REAR, RH

$26.99

$

In Stock, only 4 left!

0

7

Toro 93-6657

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

8

Toro 74-1770

COVER-BELT

$43.99

$

In Stock, only 4 left!

0

9

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

10

Toro 93-6664

DECAL-GREASE

$7.49

$

Usually ships in 3-6 days

0

11

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

12

Toro 74-1970

DECAL-POSITION, GEAR

$6.49

$

In Stock, Qty 6

0

13

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$23.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

18

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

21

Toro 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

22

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

23

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 2 left!

0

24

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

25

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

27

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

29

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

30

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

31

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, only 2 left!

0

32

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

33

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

34

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

35

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

36

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

37

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, only 4 left!

0

38

Toro 16-9119

Housing-Commercial (Incl. Ref. #7 & 42)

$2307.99

$

Usually ships in 3-6 days

0

39

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, Qty 6

0

40

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

41

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

42

Toro 93-6667

DECAL - WARNING

$

$

Not available

Toro 53-7720

Tire & Wheel Assembly (Incl. Ref. #3, 21-25, & 28)
(Superseded to 121-1380)

Note: Not illustrated

$100.99

$

In Stock, only 3 left!

0
