22701 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

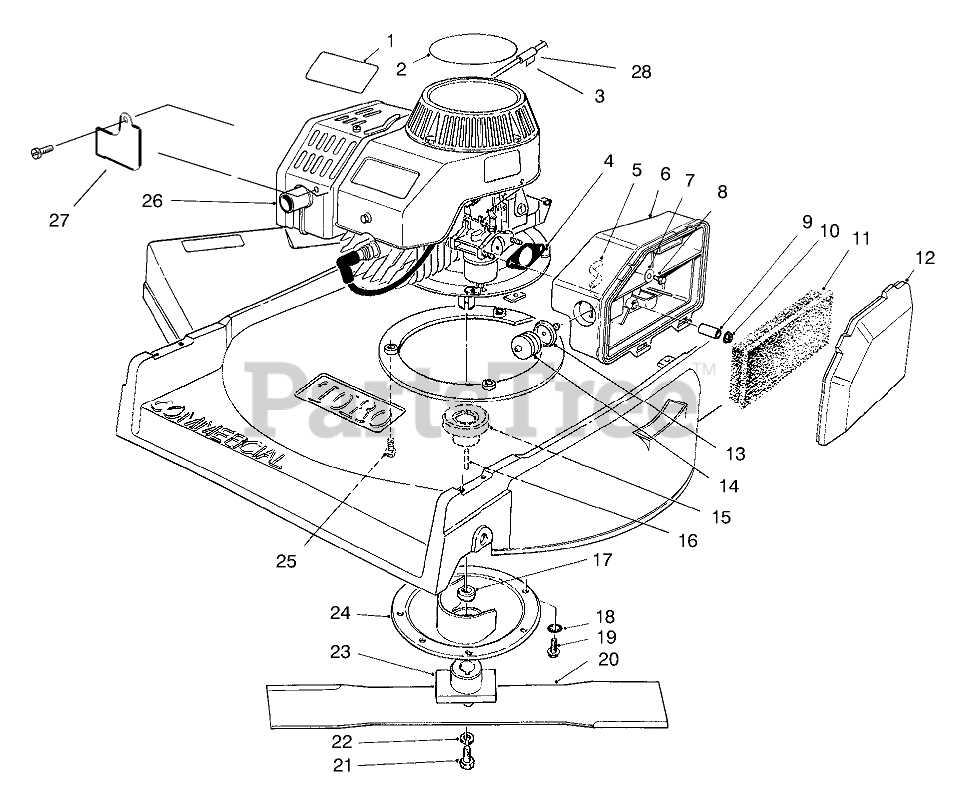

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-1260

DECAL - PROLINE

$7.49

$

Usually ships in 3-6 days

0

2

Toro 77-0040

DECAL-2 CYC RECOIL COMM

$11.99

$

Usually ships in 3-6 days

0

3

Staple

Note: Obtain Locally

$

$

Not available

4

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

5

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, only 1 left!

0

6

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

7

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

9

Toro 62-3980

SPACER

$2.49

$

Usually ships in 3-6 days

0

10

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

11

Toro 63-9380

ELEMENT-AIR CLEANER

$11.99

$

In Stock, only 1 left!

0

12

Toro 63-9340

COVER-AIR CLEANER

$49.99

$

Usually ships in 3-6 days

0

13

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

15

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

16

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

17

Toro 52-2194

BLADE SPACER

$24.99

$

Usually ships in 3-6 days

0

18

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 26-5790

BLADE

$

$

Not available

21

Toro 26-0670

SCREW-BLADE

$

$

Not available

22

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

23

Toro 66-7190

BLADE RETAINER WA
(Superseded to 66-7190-03)

$

$

Not available

24

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$101.99

$

Usually ships in 3-6 days

0

25

Toro 66-9300

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

26

Toro 61-8062

ENGINE ASM
(Superseded to 12-8099)

$

$

Not available

27

Toro 93-7661

EXTENSION-MUFFLER GUARD

$

$

Not available

28

Toro 81-3980

STOP

$7.49

$

In Stock, only 1 left!

0
