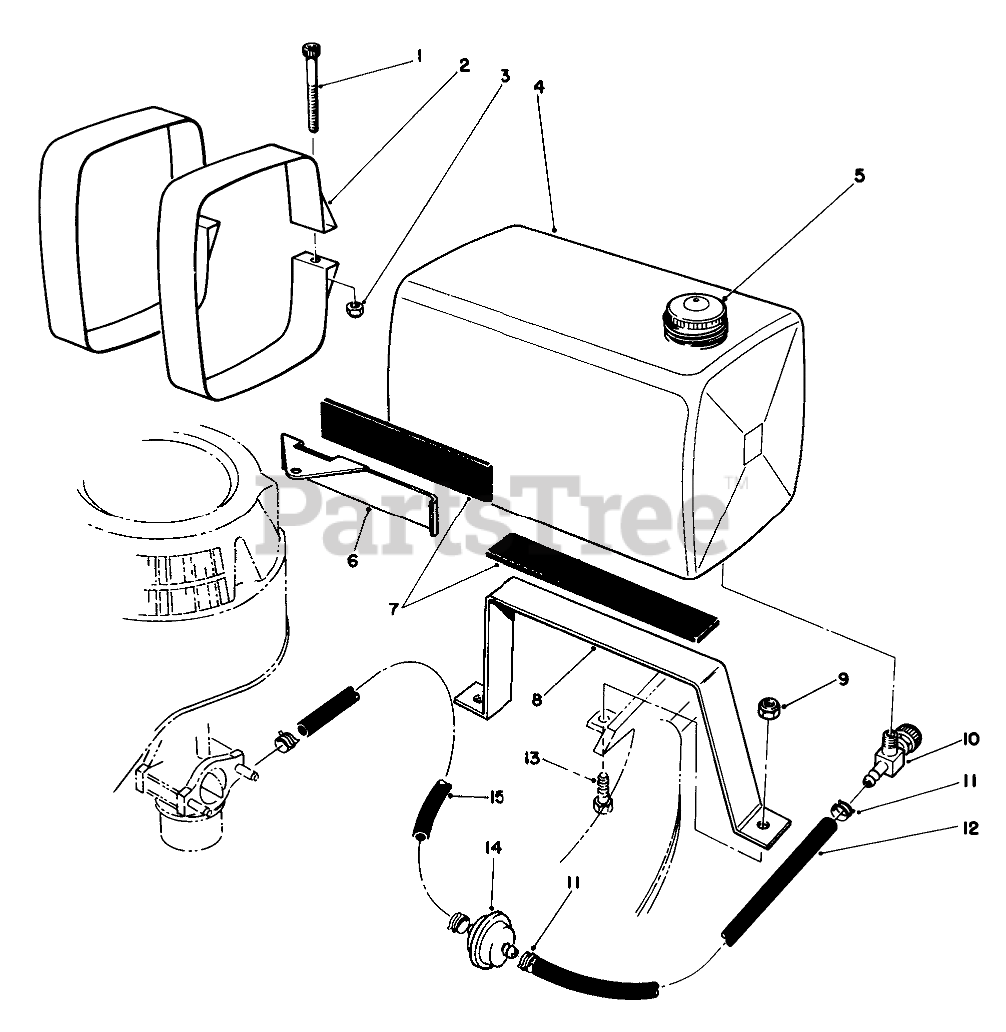

22700 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) GAS TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

GAS TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 3274-62

SCREW-HSH

$

$

Not available

2

Toro 39-0570

TANK STRAP WA

$123.99

$

Usually ships in 3-6 days

0

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

4

Toro 52-2331

Tank-Gas (Incl. Ref. #5)

$360.99

$

Usually ships in 3-6 days

0

5

Toro 55-4700

GAS CAP

$

$

Not available

6

Toro 52-2270

FRT TANK MOUNT

$

$

Not available

7

Toro 52-2290

ISOLATOR PAD

$

$

Not available

8

Toro 66-5950

TANK BOTTOM MOUNT

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

10

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

11

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

12

Toro 51-3211

LINE-GAS

$6.49

$

In Stock, only 3 left!

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 6

0

15

Toro 51-3210

HOSE-FUEL

$4.49

$

Usually ships in 3-6 days

0
