22700 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HOUSING ASSEMBLY (MODEL 22700C) Parts Diagram

Walk-Behind Mower

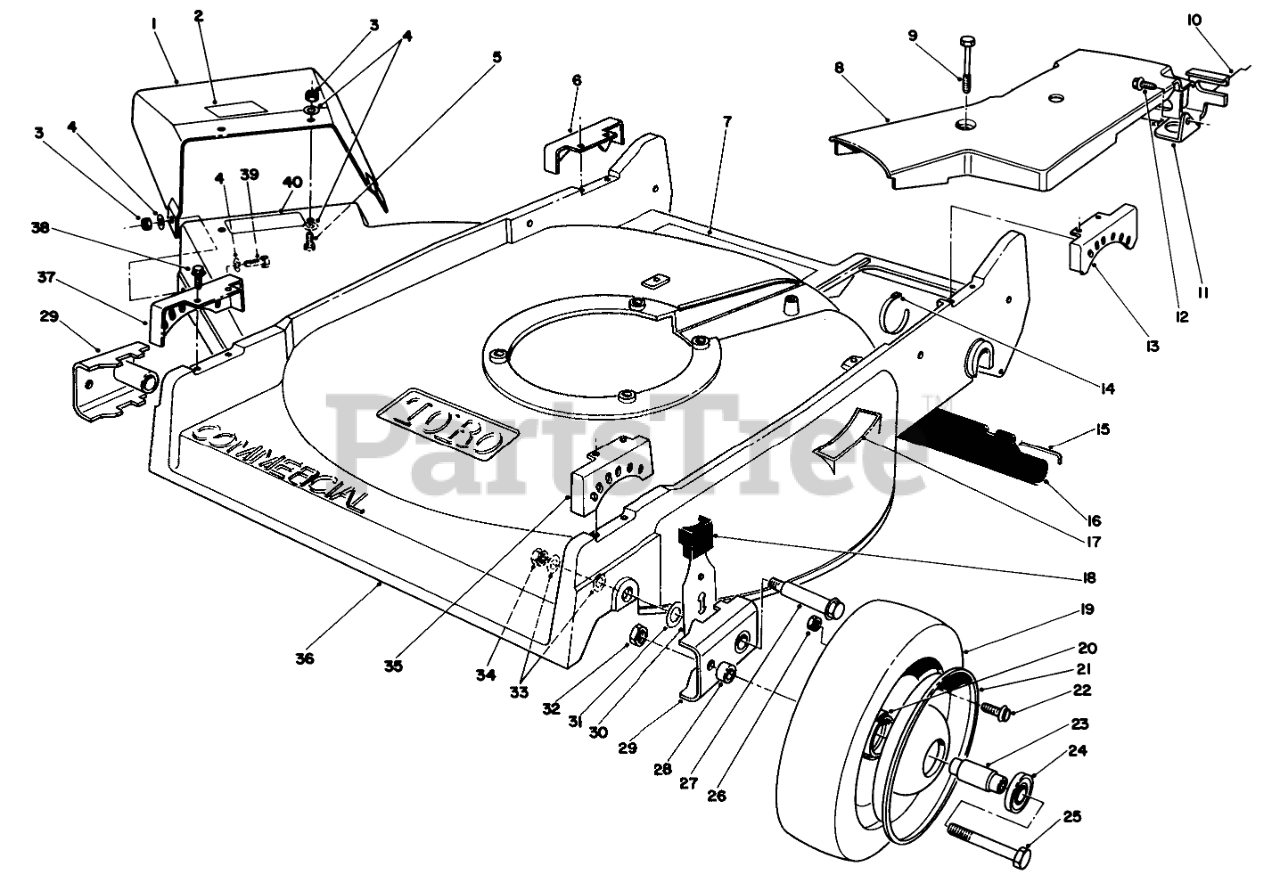

HOUSING ASSEMBLY (MODEL 22700C) Parts Diagram

  • Title

1

Toro 66-7040

Deflector Assy. (Incl. Ref. #2)

$

$

Not available

2

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 49-8750

QUADRANT-REAR, RH

$27.99

$

In Stock, only 4 left!

0

7

Toro 66-5100

Decal-Safety Instructions
(Superseded to 93-6657)

$

$

Not available

8

Toro 63-9440

Decal-Hot
(Superseded to 74-1770)

$49.99

$

In Stock, only 3 left!

0

9

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 12

0

10

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

11

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

17

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

18

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

19

Toro 53-7740

TIRE

$34.99

$

In Stock, Qty 5

0

20

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

21

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 1 left!

0

22

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

23

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

24

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

25

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

28

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

29

Toro 61-8300

ARM-PIVOT, FRONT

$30.99

$

In Stock, Qty 7

0

30

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

31

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

32

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

35

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

36

Toro 13-0409

Housing-Commercial (Inc. Ref. #7, 17, & 40)
(Superseded to 16-9119)

$

$

Not available

37

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

38

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

39

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 66-7360

DECAL - WARNING/INT'L

$

$

Not available

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #19-24, & 26)
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0
