22700 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

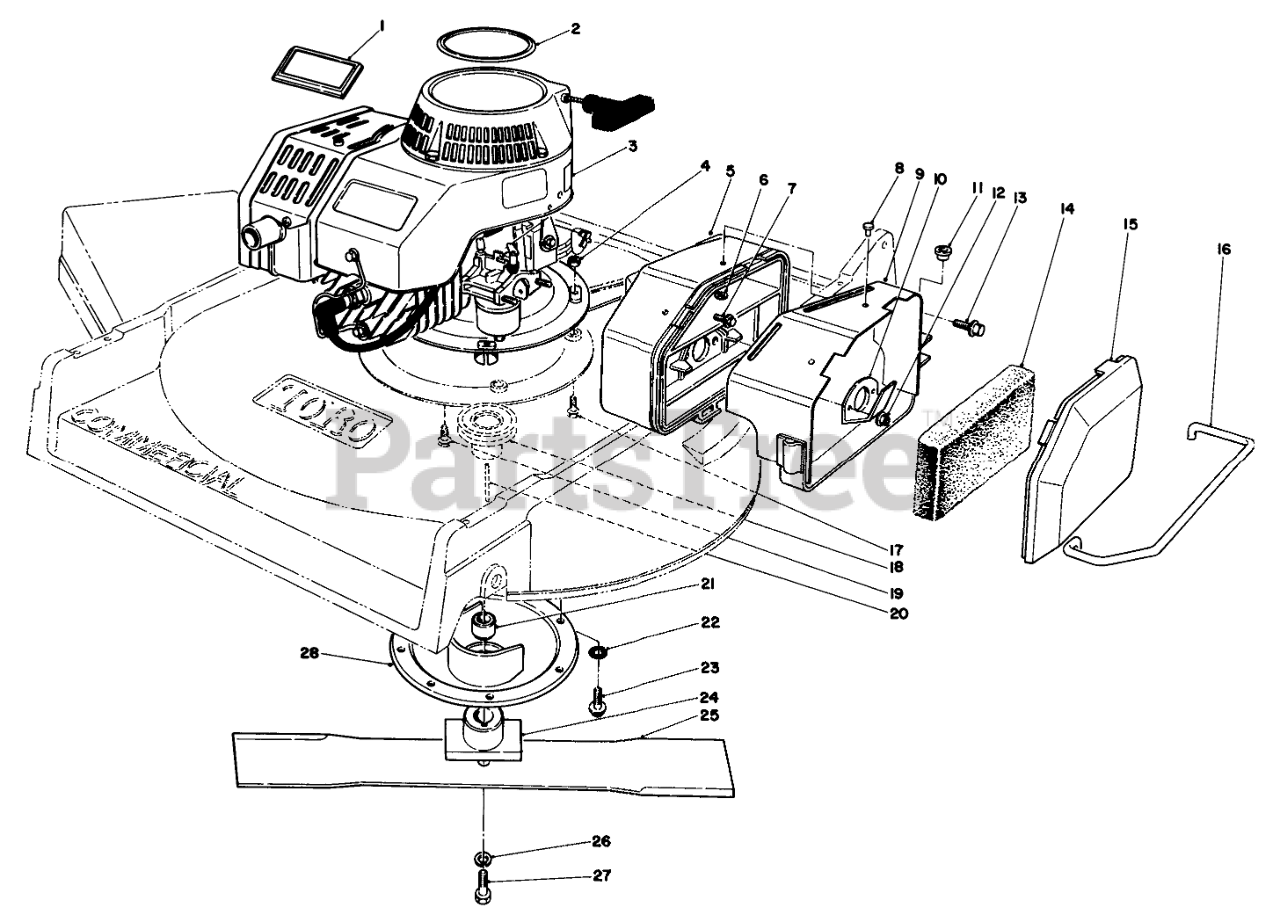

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8291

Plate-Logo
(Superseded to 71-1260)

$7.49

$

Usually ships in 3-6 days

0

2

Toro 49-9030

Plate-Engine Logo
(Superseded to 77-0040)

$11.99

$

Usually ships in 3-6 days

0

3

Toro 62-7600

DECAL - FUEL

$11.99

$

Usually ships in 3-6 days

0

Toro 52-2350

FUEL TANK DECAL

$

$

Not available

4

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

5

Toro 52-2200

Air Cleaner Assembly (Incl. Ref. #6, 8, & 9)

$553.99

$

Usually ships in 3-6 days

0

6

Toro 3269-6

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 51-3220

HEX FL HD M.6X1.0X25MM

$

$

Not available

8

Toro 3269-5

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

9

Toro 52-2250

AIR CLEANER COVER WA

$

$

Not available

10

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

11

Toro 237-127

5/16 ID BSHG

$

$

Not available

12

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

13

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

14

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

15

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

16

Toro 52-2240

AIR CLEANER GUARD

$

$

Not available

17

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

19

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

21

Toro 52-2194

BLADE SPACER

$24.99

$

Usually ships in 3-6 days

0

22

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 66-7190

BLADE RETAINER WA
(Superseded to 66-7190-03)

$

$

Not available

25

Toro 26-5790

BLADE

$

$

Not available

26

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

27

Toro 26-0670

SCREW-BLADE

$

$

Not available

28

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$101.99

$

Usually ships in 3-6 days

0

Toro 61-8061

Complete Engine
(Superseded to 12-8099)

$

$

Not available
