22700 B - Toro 21" Walk-Behind Mower (SN: 039000001 - 039999999) (1993) CARBURETOR ASSEMBLY (MODEL NO. 47PN2-3) Parts Diagram

21" Walk-Behind Mower

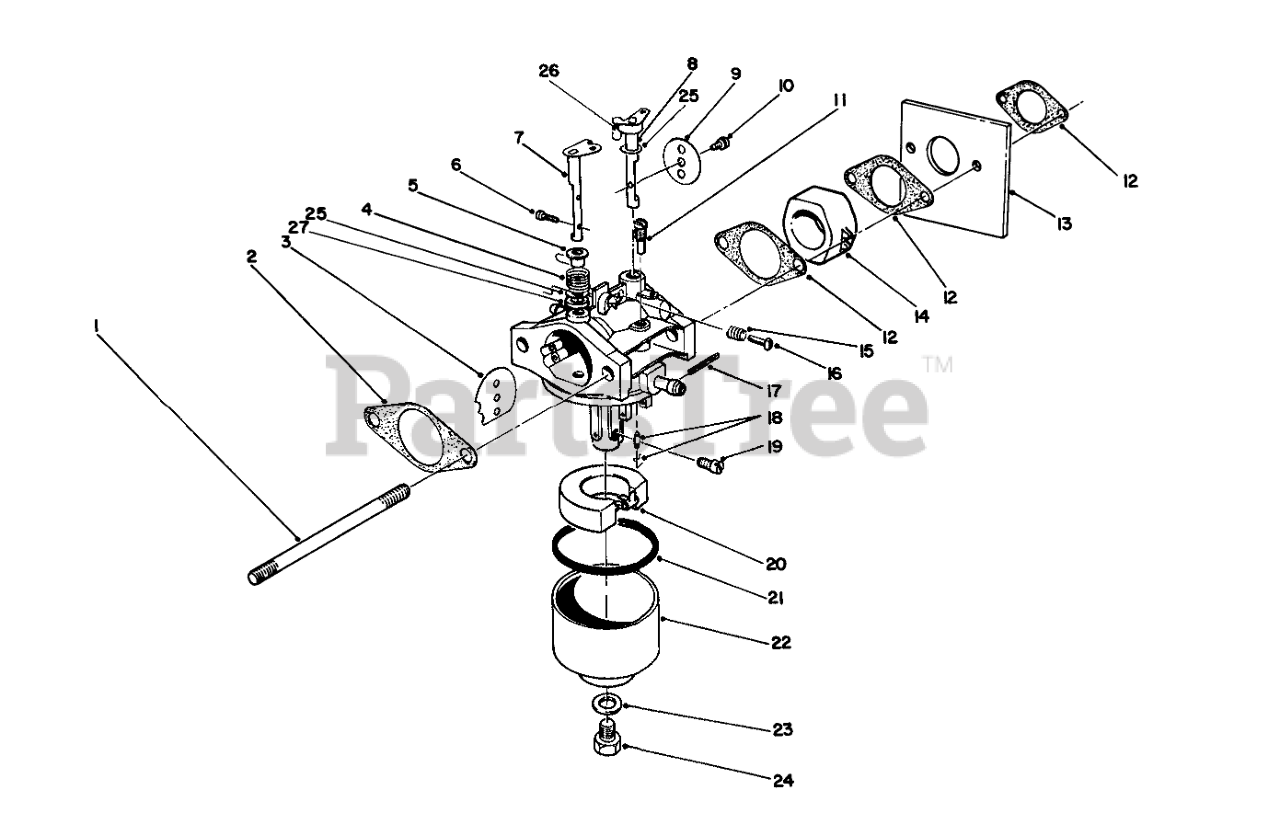

CARBURETOR ASSEMBLY (MODEL NO. 47PN2-3) Parts Diagram

  • Title
1

Toro 81-5450

STUD-CARBURETOR

$

$

Not available

2

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

3

Toro 81-0240

PLATE

$

$

Not available

4

Toro 81-0230

SPRING

$

$

Not available

5

Toro 81-0220

BUSHING

$

$

Not available

6

Toro 81-2160

SCREW

$4.99

$

Usually ships in 3-6 days

0

7

Toro 81-1950

SHAFT-CHOKE

$

$

Not available

8

Toro 81-0250

SHAFT

$116.99

$

Usually ships in 3-6 days

0

9

Toro 81-0260

PLATE

$29.99

$

Usually ships in 3-6 days

0

10

Toro 81-0270

Screw-Throttle
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 81-1030

PILOT JET

$33.99

$

Usually ships in 3-6 days

0

12

Toro 81-0780

GASKET-CARB

$6.99

$

In Stock, Qty 12

0

13

Toro 81-5490

SHIELD-CARBURETOR

$

$

Not available

14

Toro 81-2190

INSULATOR

$19.99

$

Usually ships in 3-6 days

0

15

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

16

Toro 50-0250

SCREW

$

$

Not available

17

Toro 81-2600

PIN-HINGE

$8.49

$

Usually ships in 3-6 days

0

18

Toro 81-4910

NEEDLE

$

$

Not available

19

Toro 81-1060

JET-MAIN

$

$

Not available

Toro 81-2340

JET-HIGH ALTITUDE

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0

20

Toro 81-0970

FLOAT

$60.99

$

Usually ships in 3-6 days

0

21

Toro 81-1010

GASKET

$19.99

$

In Stock, only 2 left!

0

22

Toro 81-5660

BOWL - FLOAT

$71.99

$

Usually ships in 3-6 days

0

23

Toro 81-1020

GASKET

$

$

Not available

24

Toro 81-5670

SCREW

$14.99

$

Usually ships in 3-6 days

0

25

$8.99

$

Usually ships in 3-6 days

0

26

$

$

Not available

27

Toro 81-2550

PACKING

$7.99

$

In Stock, only 1 left!

0

Toro 12-6379

Carburetor Kit (Incl. Ref. #2, 12, 18, 21 & 23)

Note: Not illustrated

$

$

Not available

Toro 81-2520

CARBURETOR ASM, COMPLETE

Note: Not illustrated

$

$

Not available

Toro 81-5430

Carburetor Assembly
(Superseded to 81-2520)

Note: Not illustrated

$

$

Not available

Toro 81-5810

Needle Valve Kit (Incl. Valve Seat & Ref. #18)

Note: Not illustrated

$

$

Not available
