227 R - Husqvarna String Trimmer (SN: 20023500001 & Above) BEVEL GEAR Parts Diagram

String Trimmer

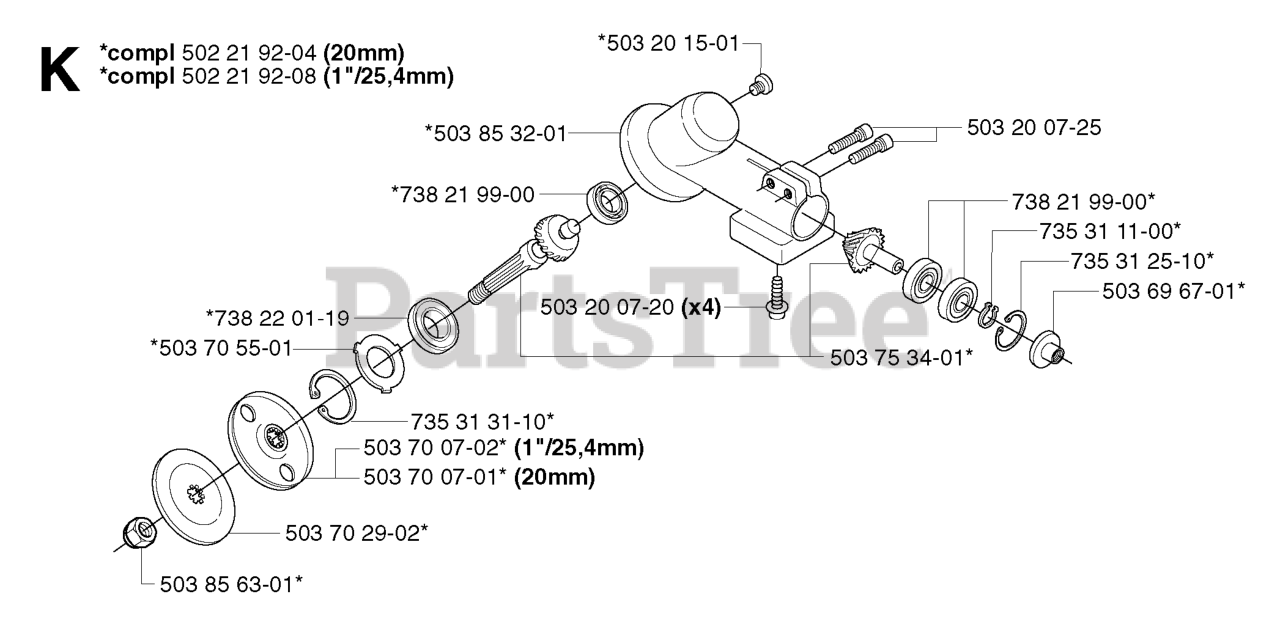

BEVEL GEAR Parts Diagram

  • Title

503 20 07-20

Husqvarna 503200720

SCREW
(Superseded to 503200220)

$6.49

$

In Stock, Qty 18

0

503 20 07-25

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

735 31 31-10

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 3 left!

0

503 70 07-01

Husqvarna 503700701

DRIVER

Note: 20MM

$60.99

$

In Stock, only 4 left!

0

503 70 29-02

Husqvarna 503702902

FLANGE

$17.99

$

In Stock, only 1 left!

0

738 21 99-00

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

503 75 34-01

Husqvarna 503753401

GEAR SET
(Superseded to 502219208)

$302.99

$

Usually ships in 3-10 days

0

502 21 92-04

Husqvarna 502219204

BEVEL GEAR
(Superseded to 502219208)

Note: 20MM

$302.99

$

Usually ships in 3-10 days

0

503 85 32-01

Husqvarna 503853201

GEAR HOUSING

$74.99

$

Usually ships in 3-10 days

0

503 70 55-01

Husqvarna 503705501

WASHER

$5.99

$

In Stock, only 1 left!

0

738 22 01-19

Husqvarna 738220119

BALL BEARING 6201-2RS1
(Superseded to 503252301)

$17.99

$

Usually ships in 3-10 days

0

735 31 11-00

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

503 85 63-01

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

735 31 25-10

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

502 21 92-08

Husqvarna 502219208

GEAR HEAD

Note: 1/25,4MM

$302.99

$

Usually ships in 3-10 days

0

503 70 07-02

Husqvarna 503700702

CARRIER

Note: 1/25,4MM

$56.99

$

Usually ships in 3-10 days

0

503 69 67-01

Husqvarna 503696701

CONNECTOR

$

$

Not available

503 20 15-01

Husqvarna 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0
