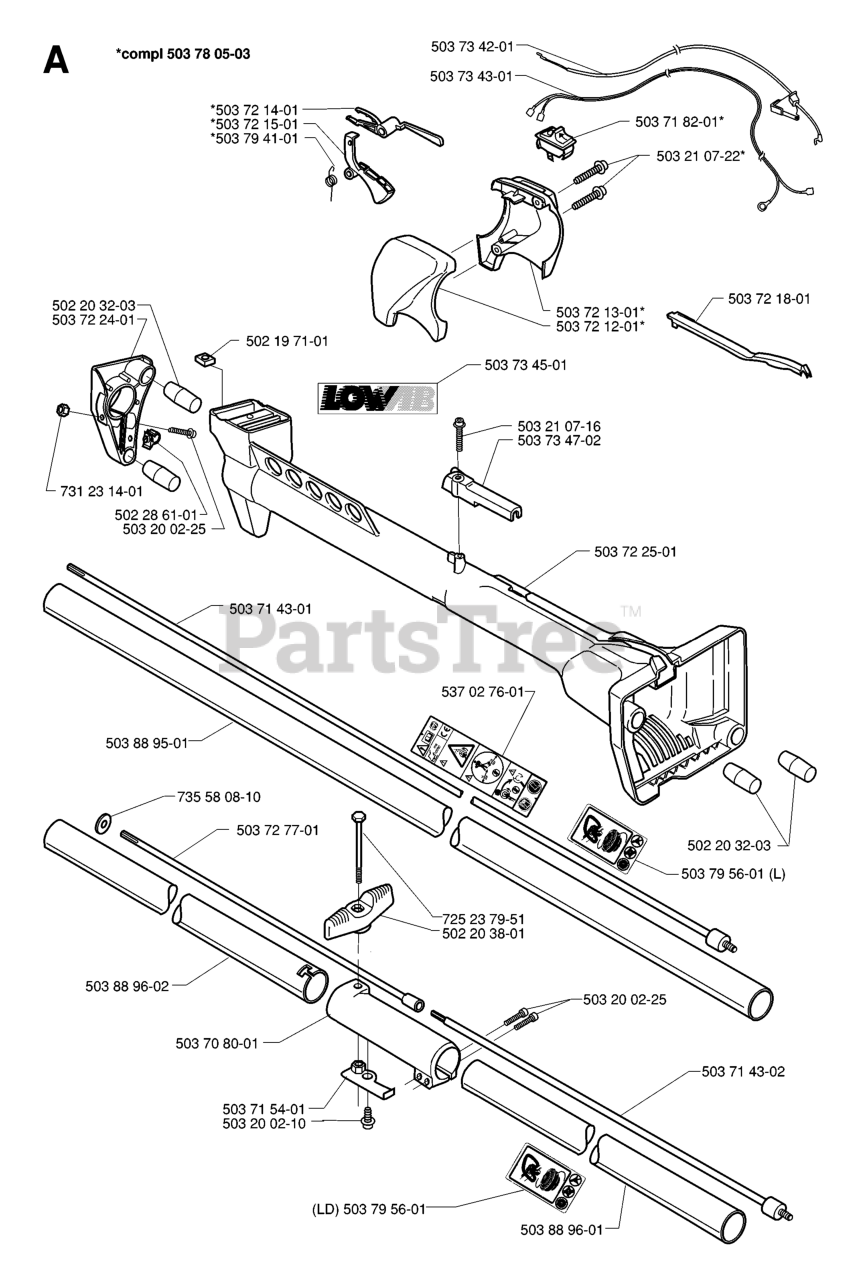

227 LD - Husqvarna String Trimmer (SN: 19993600001 - 20004000000) SHAFT & HANDLE Parts Diagram

String Trimmer

SHAFT & HANDLE Parts Diagram

  • Title
502 28 61-01

$4.99

$

In Stock, only 1 left!

0

503 73 47-02

$

$

Not available

502 20 38-01

$7.99

$

Usually ships in 3-10 days

0

735 58 08-10

$3.49

$

In Stock, only 2 left!

0

503 71 43-01

$91.99

$

Usually ships in 3-10 days

0

503 88 96-02

Husqvarna 503889602

TUBE/LOWER

$

$

Not available

731 23 14-01

$2.49

$

In Stock, Qty 8

0

502 20 32-03

$7.99

$

In Stock, Qty 11

0

503 72 14-01

Husqvarna 503721401

THROTTLE LOCK

$7.99

$

Usually ships in 3-10 days

0

503 73 45-01

$

$

Not available

503 73 43-01

$11.99

$

In Stock, only 1 left!

0

503 88 95-01

$91.99

$

Usually ships in 3-10 days

0

503 21 07-22

Husqvarna 503210722

SCREW
(Superseded to 503216722)

$6.49

$

In Stock, Qty 9

0

503 73 42-01

Husqvarna 503734201

THROTTLE WIRE

$40.99

$

Usually ships in 3-10 days

0

503 20 02-25

$4.99

$

In Stock, only 2 left!

0

503 72 25-01

$

$

Not available

503 21 07-16

$6.49

$

In Stock, only 3 left!

0

503 79 56-01

Husqvarna 503795601

DECAL WARNING "NO BLADES"

Note: LD

$4.99

$

Usually ships in 3-10 days

0

503 79 41-01

$4.99

$

In Stock, Qty 5

0

503 71 43-02

Husqvarna 503714302

UPPER SHAFT

$

$

Not available

503 72 24-01

$17.99

$

In Stock, only 1 left!

0

503 88 96-01

Husqvarna 503889601

TUBE/UPPER

$

$

Not available

503 79 56-01

Husqvarna 503795601

DECAL WARNING "NO BLADES"

Note: L

$4.99

$

Usually ships in 3-10 days

0

503 72 15-01

Husqvarna 503721501

THROTTLE TRIGGER

$9.49

$

Usually ships in 3-10 days

0

503 71 82-01

Husqvarna 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 5

0

503 20 02-10

Husqvarna 503200210

SCREW
(Superseded to 503200710)

$6.49

$

In Stock, Qty 20+

0

503 72 12-01

Husqvarna 503721201

THROTTLE HSG LH

$

$

Not available

503 71 54-01

$

$

Not available

537 02 76-01

Husqvarna 537027601

DECAL WARNING
(Superseded to 589295101)

$12.99

$

Usually ships in 3-10 days

0

503 78 05-03

$38.07

$

Usually ships in 3-10 days

0

503 72 77-01

Husqvarna 503727701

LOWER SHAFT

$

$

Not available

725 23 79-51

$7.49

$

In Stock, only 1 left!

0

503 70 80-01

$

$

Not available

503 72 18-01

$6.99

$

Usually ships in 3-10 days

0

502 19 71-01

$8.99

$

In Stock, only 1 left!

0

503 72 13-01

Husqvarna 503721301

THROTTLE HSG RH

$

$

Not available
