22685 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) RECOIL ASSEMBLY (MODEL NO. 47PK9-3) Parts Diagram

Walk-Behind Mower

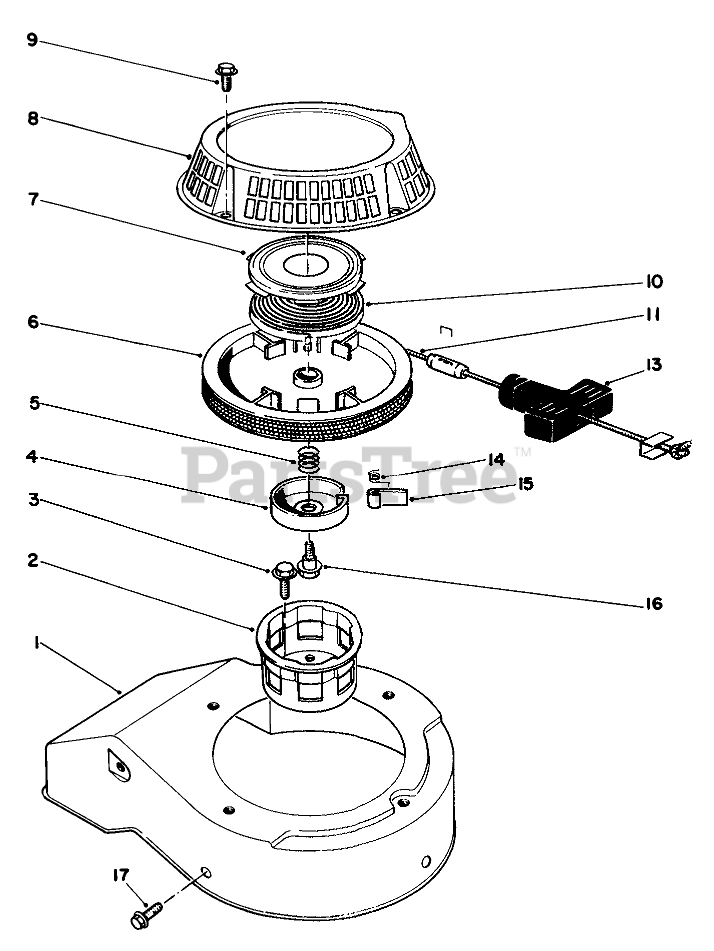

RECOIL ASSEMBLY (MODEL NO. 47PK9-3) Parts Diagram

  • Title
1

Toro 81-2080

Cover-Cooling Fan
(Superseded to 81-2070)

$

$

Not available

2

Toro 81-2170

PULLEY-CUP, STARTER

$94.99

$

Usually ships in 3-6 days

0

3

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

5

Toro 81-1240

SPRING

$

$

Not available

6

$54.99

$

In Stock, only 2 left!

0

7

Toro 81-1640

Retainer-Recoil Spring
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

8

Toro 81-2100

CASE-STARTER

$230.99

$

Usually ships in 3-6 days

0

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

10

Toro 81-1200

Spring-Recoil
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

11

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

12

Toro 47-2480

STOP-ROPE

$

$

Not available

13

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

14

Toro 81-1220

SPRING

$

$

Not available

15

$

$

Not available

16

$

$

Not available

17

$

$

Not available

Toro 81-5940

Recoil Starter Assembly (Incl. Ref. #6-8, 10-13 & 18)

$

$

Not available

Toro 81-2300

Spring & Retainer Assembly (Incl. Ref. #7 & 10)

$43.99

$

Usually ships in 3-6 days

0

18

Toro 81-5760

Insert Handle

$

$

Not available

19

Staple

$

$

Not available
