22685 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HOUSING & WHEEL ASSEMBLY Parts Diagram

Walk-Behind Mower

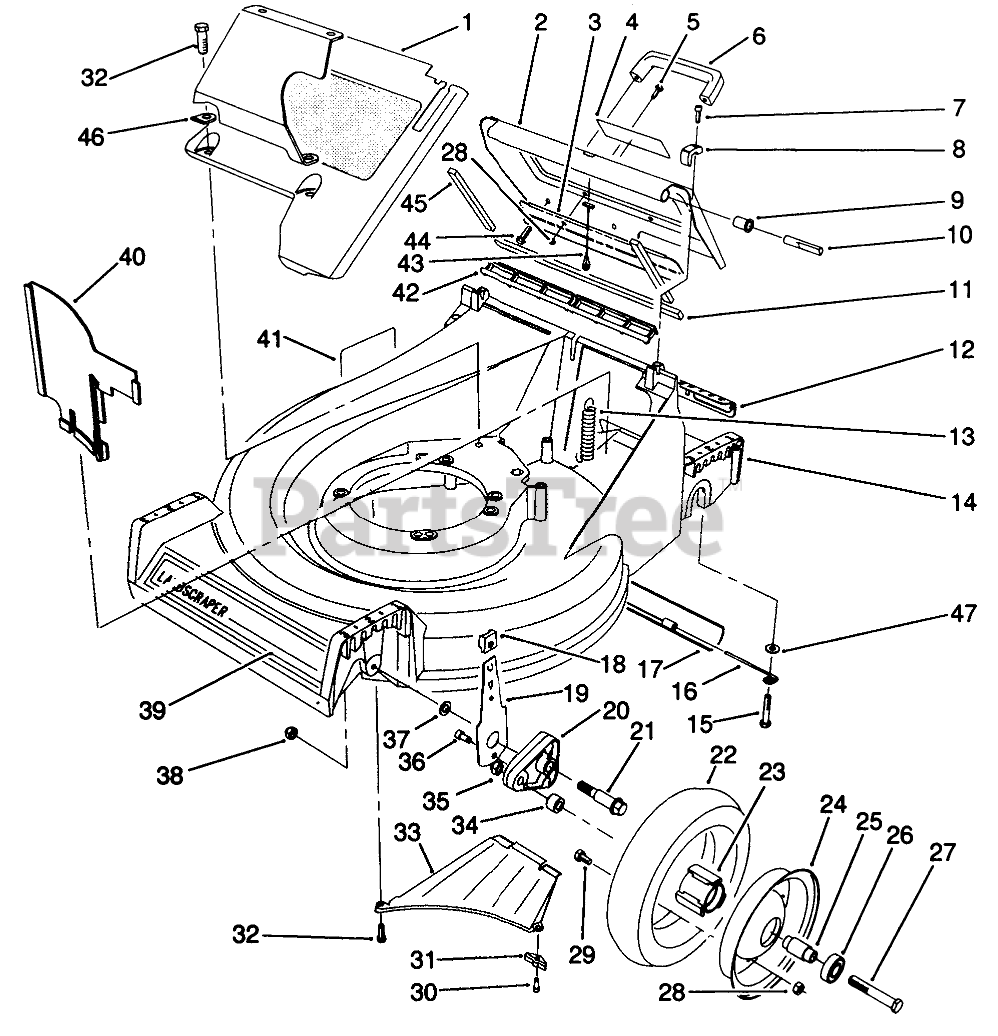

HOUSING & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$54.99

$

Usually ships in 3-6 days

0

2

Toro 13-9659

Door-Discharge
(Superseded to 14-2509)

$

$

Not available

2

(Incl. Ref. #4, 11 & 45)

$

$

Not available

3

Toro 66-0610

DOOR - BRACE

$

$

Not available

4

Toro 63-9050

DECAL - WARNING

$

$

Not available

5

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

6

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, Qty 8

0

7

Toro 65-5210

SCREW-HSH

$

$

Not available

8

Toro 65-5140

HINGE CLAMP

$

$

Not available

9

Toro 65-5460

DOOR BUSHING

$3.49

$

Usually ships in 3-6 days

0

10

Toro 65-5290

HINGE PIN

$

$

Not available

11

Toro 65-5490

DOOR END SEAL

$33.99

$

Usually ships in 3-6 days

0

12

Toro 74-1950

ACCESS COVER

$

$

Not available

13

Toro 65-5360

EXTENSION-SPRING

$27.99

$

Usually ships in 3-6 days

0

14

Toro 13-9649

HOUSING W/DECAL (R&S)

$

$

Not available

14

(Incl. Ref. #41)

$

$

Not available

15

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

16

Toro 76-1980

SHIELD HANGER

$

$

Not available

17

Toro 65-5350

TRAILING SHIELD

$50.99

$

Usually ships in 3-6 days

0

18

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

19

Toro 66-0540

FRONT SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

20

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

21

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

22

Toro 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

23

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

24

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

25

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

26

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

27

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

29

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

30

Toro 65-5221

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

31

Toro 66-0640

Bracket-Discharge

$

$

Not available

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 65-5010

Ramp Discharge
(Superseded to 65-5010-03)

$

$

Not available

34

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

36

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

37

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

38

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

39

Toro 74-2060

DECAL - LANDSCAPER

$

$

Not available

40

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

41

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

42

Toro 65-5160

DOOR SEAL

$

$

Not available

43

Toro 65-5370

DOOR CABLE

$18.99

$

In Stock, only 2 left!

0

44

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

45

Toro 65-5480

DOOR SIDE SEAL

$

$

Not available

46

Toro 74-2040

BASE TANK

$

$

Not available

47

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 53-7720

Wheel Assembly (Incl. Ref. #22-26, 28 & 29)
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0
