22655x192A - Briggs & Stratton 22" Walk-Behind Mower (2000) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

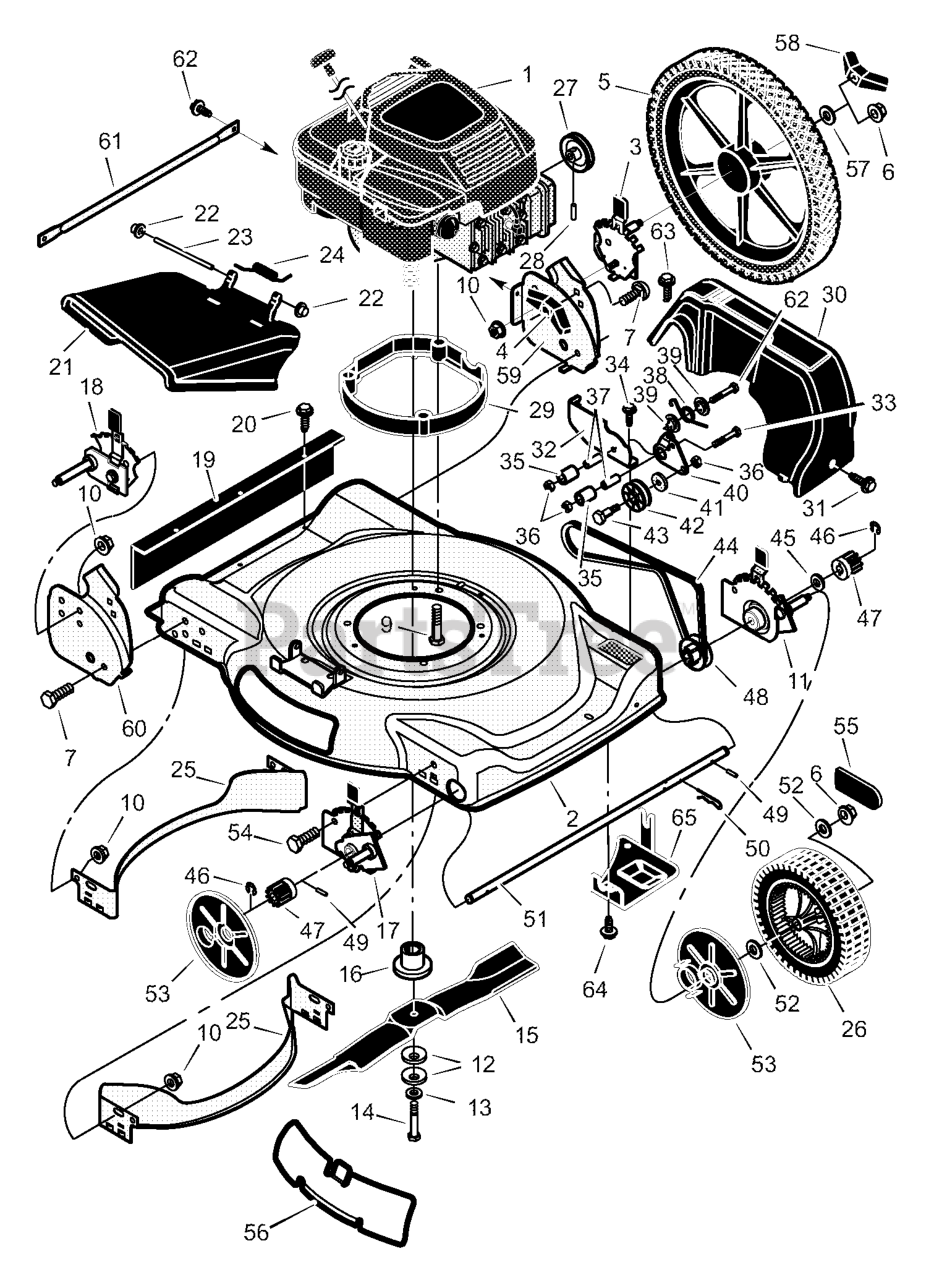

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776043

Housing

$203.99

$

Usually ships in 2-12 days

0

3

Murray 672645MA

Height Adjuster, Left Rear

$50.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

5

Murray 071841MA

Wheel and Tire, Rear
(Superseded to 672074MA)

$

$

Not available

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672643MA

Height Adjuster, Left Front

$88.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

15

Murray 672735E701

Blade, Mulcher

$

$

Currently unavailable

16

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672642MA

Height, Adjuster, Right Frt.

$

$

Not available

18

Murray 672644MA

Height, Adjuster, Right Rr.

$37.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

$3.99

$

Usually ships in 2-12 days

0

$49.99

$

Usually ships in 2-12 days

0

26

Murray 071133MA

Wheel and Tire, Drive

$50.99

$

In Stock, only 2 left!

0

27

$16.99

$

Usually ships in 2-12 days

0

28

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

29

Murray 672671MA

Base, Engine

$16.99

$

Usually ships in 2-12 days

0

30

Murray 1101025MA

Cover, Belt (Black)

$

$

Not available

31

$3.49

$

Usually ships in 2-12 days

0

32

Murray 672751 Z

Bracket, Idler Support

$

$

Currently unavailable

33

$3.49

$

In Stock, only 2 left!

0

34

$4.99

$

In Stock, only 1 left!

0

35

Murray 672754MA

Idler, Backside

$8.49

$

In Stock, only 2 left!

0

36

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

37

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 5

0

38

$

$

Not available

39

$3.99

$

Usually ships in 2-12 days

0

40

Murray 672753 Z

Arm, Pivot

$

$

Currently unavailable

41

$3.99

$

Usually ships in 2-12 days

0

42

Murray 071779MA

Pulley, Idler

$

$

Not available

43

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

44

Murray 37X100MA

Belt, Briggs & Stratton

$20.99

$

In Stock, only 4 left!

0

45

$

$

Not available

46

Murray 011X16MA

Ring, Retainer

$3.99

$

Usually ships in 2-12 days

0

47

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

48

$16.99

$

Usually ships in 2-12 days

0

49

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

50

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

51

$34.99

$

Usually ships in 2-12 days

0

52

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

53

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

54

$3.99

$

Usually ships in 2-12 days

0

55

Murray 043615MA

Hub Cap

$4.49

$

Usually ships in 2-12 days

0

56

Murray 672422 Z

Plate, Mulch

$

$

Currently unavailable

57

$

$

Currently unavailable

58

Murray 672449MA

Knob, Axle

$5.99

$

Usually ships in 2-12 days

0

59

Murray 672427E701

Bracket, Left Handle

$

$

Currently unavailable

60

Murray 672426E701

Bracket, Right Handle

$

$

Currently unavailable

$5.99

$

Usually ships in 2-12 days

0

62

$4.99

$

In Stock, only 1 left!

0

62

$

$

Not available

63

$3.99

$

Usually ships in 2-12 days

0

64

$1.99

$

Usually ships in 2-12 days

0

65

Murray 1101026E700

Shield, Debris

$

$

Currently unavailable

--

Murray F-000446L

Book, Instruction

$

$

Currently unavailable
