22646x8A - Murray 22" Walk-Behind Mower (1998) Handle Assembly Parts Diagram

22" Walk-Behind Mower

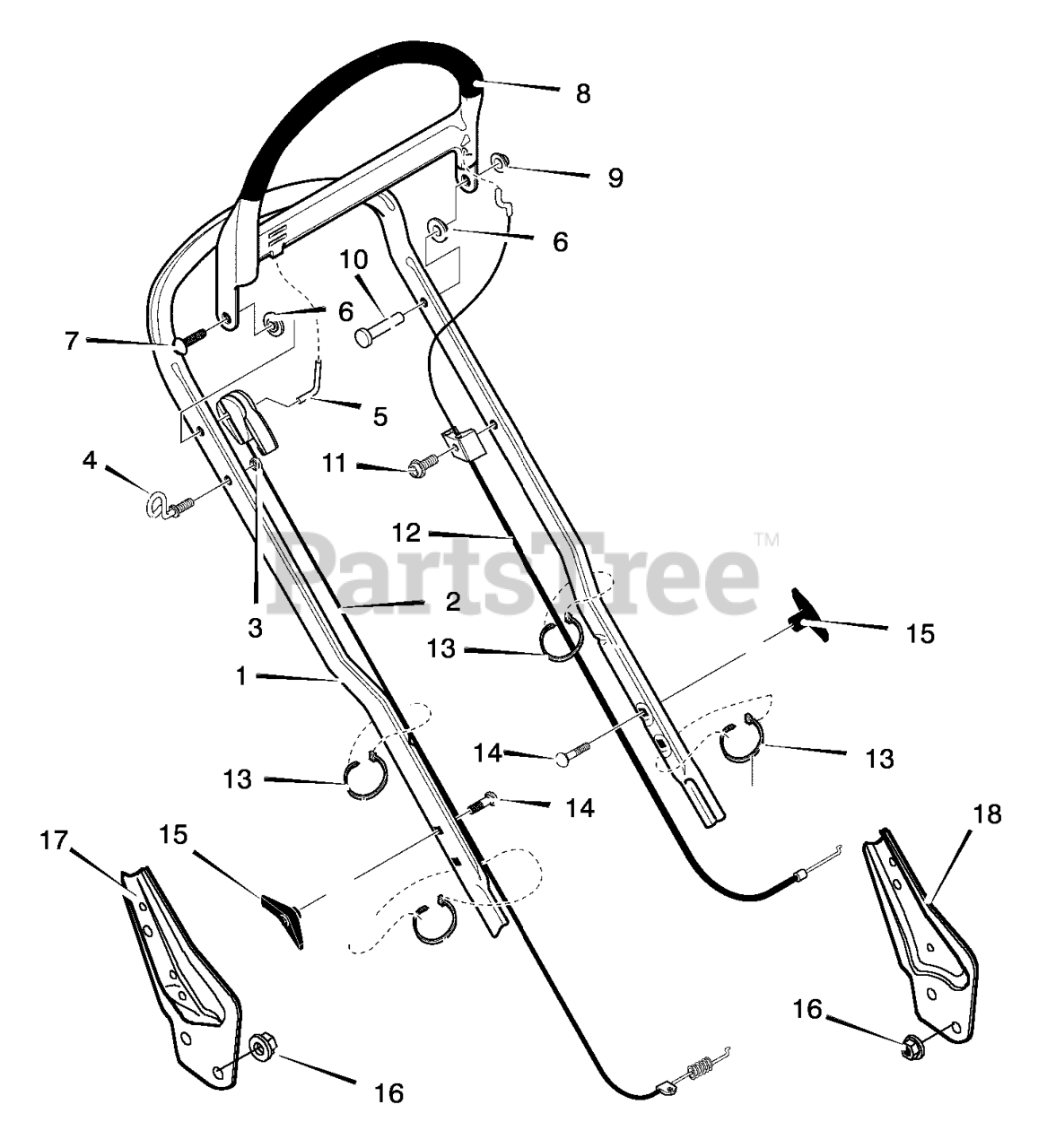

Handle Assembly Parts Diagram

  • Title

1

Murray 672694E724

Handle, Upper (Black)

$35.99

$

Usually ships in 2-12 days

0

2

Murray 672668MA

Control, Drive

$47.99

$

Usually ships in 2-12 days

0

3

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Murray 672510MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

5

Murray 672291MA

Rod, Drive Link
(Superseded to 672291ZMA)

$61.99

$

Usually ships in 2-12 days

0

6

Murray 672292MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

7

Murray 26X287

Screw

$1.99

$

Usually ships in 2-12 days

0

8

Murray 672687E724

Lever, Stop

$

$

Currently unavailable

9

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

10

Murray 29X102

Pin, Clevis

$1.99

$

Usually ships in 2-12 days

0

11

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

12

Murray 672667MA

Cable, Stop

$33.99

$

In Stock, only 1 left!

0

13

Murray 071372MA

Strap, Tie

$4.49

$

In Stock, only 1 left!

0

14

Murray 002X77MA

Bolt, Carriage

$3.99

$

In Stock, only 2 left!

0

15

Murray 672685

Wingnut

$1.49

$

Usually ships in 2-12 days

0

16

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Murray 672266

Bracket, Right Handle

$

$

Currently unavailable

18

Murray 672267

Bracket, Left Handle

$

$

Currently unavailable
