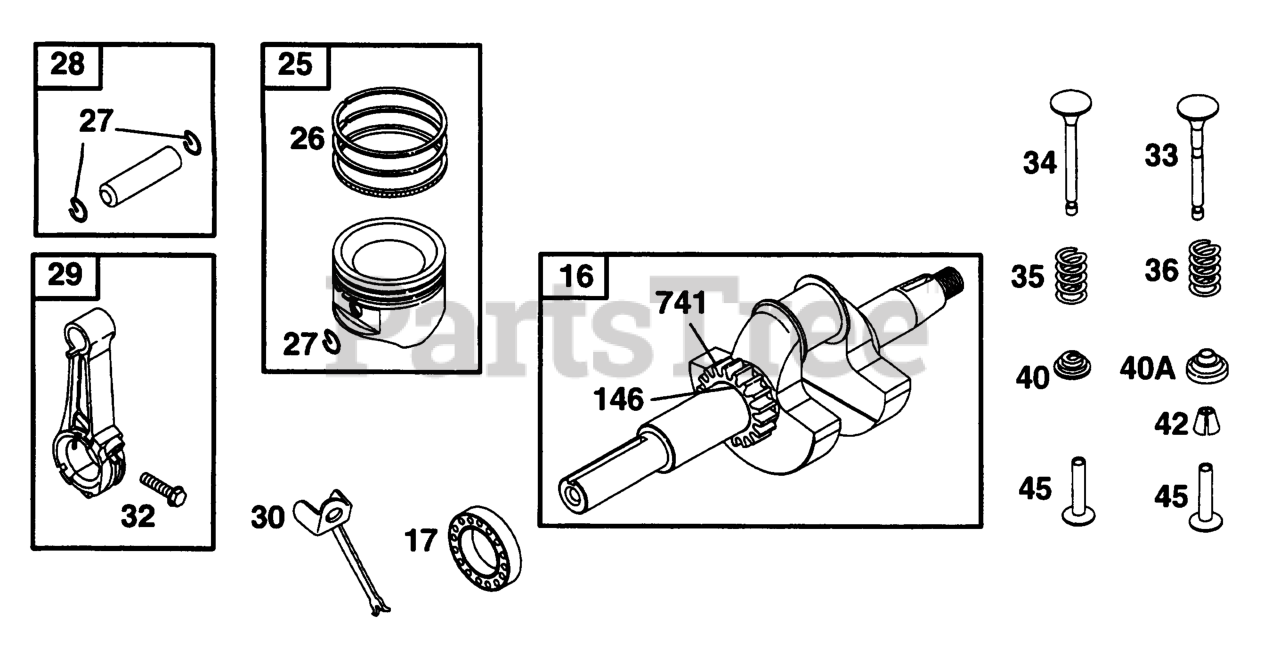

226432-0114-01 - Briggs & Stratton Horizontal Engine Piston Grp, Crankshaft Parts Diagram

Horizontal Engine

Piston Grp, Crankshaft Parts Diagram

  • Title

16

Briggs & Stratton 497487

Crankshaft

$422.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 291667

Bearing-Ball
(Superseded to 691938)

$

$

Not available

25

Briggs & Stratton 497518

Piston Assembly (Standard)
(Superseded to 499284)

$

$

Not available

25

Briggs & Stratton 497519

Piston Assembly (.010" O.S.)

$155.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 497520

Piston Assembly (.020" O.S.)
(Superseded to 499292)

$

$

Not available

25

Briggs & Stratton 497521

Piston Assembly (.030" O.S.)

$83.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 497522

Ring Set
(Superseded to 495854)

$79.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 497523

Ring Set (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 497524

Ring Set (.020" O.S.)
(Superseded to 495851)

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 497525

Ring Set (.030" O.S.)

$64.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263129

Lock-Piston Pin
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston (Standard)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston (.005" O.S.)

$14.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston (Standard)

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498320

Pin-Piston (.005" O.S.)

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 393860

Rod-Connecting (Standard)

$159.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 393861

Rod-Connecting (.020" Undersize)

$127.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 222329

Dipper-Connecting Rod
(Superseded to 690405)

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 95017

Screw (Connecting Rod)
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 261185

Valve-Exhaust
(Superseded to 691796)

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261462

Valve-Intake
(Superseded to 690429)

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring-Valve (Intake)
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40A

Briggs & Stratton 292260

Retainer-Valve (Exhaust)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

40

Briggs & Stratton 221596

Retainer-Valve (Intake)
(Superseded to 690656)

$

$

Not available

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262248

Tappet-Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94196

Key-Gear
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 262932

Gear-Timing
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0
