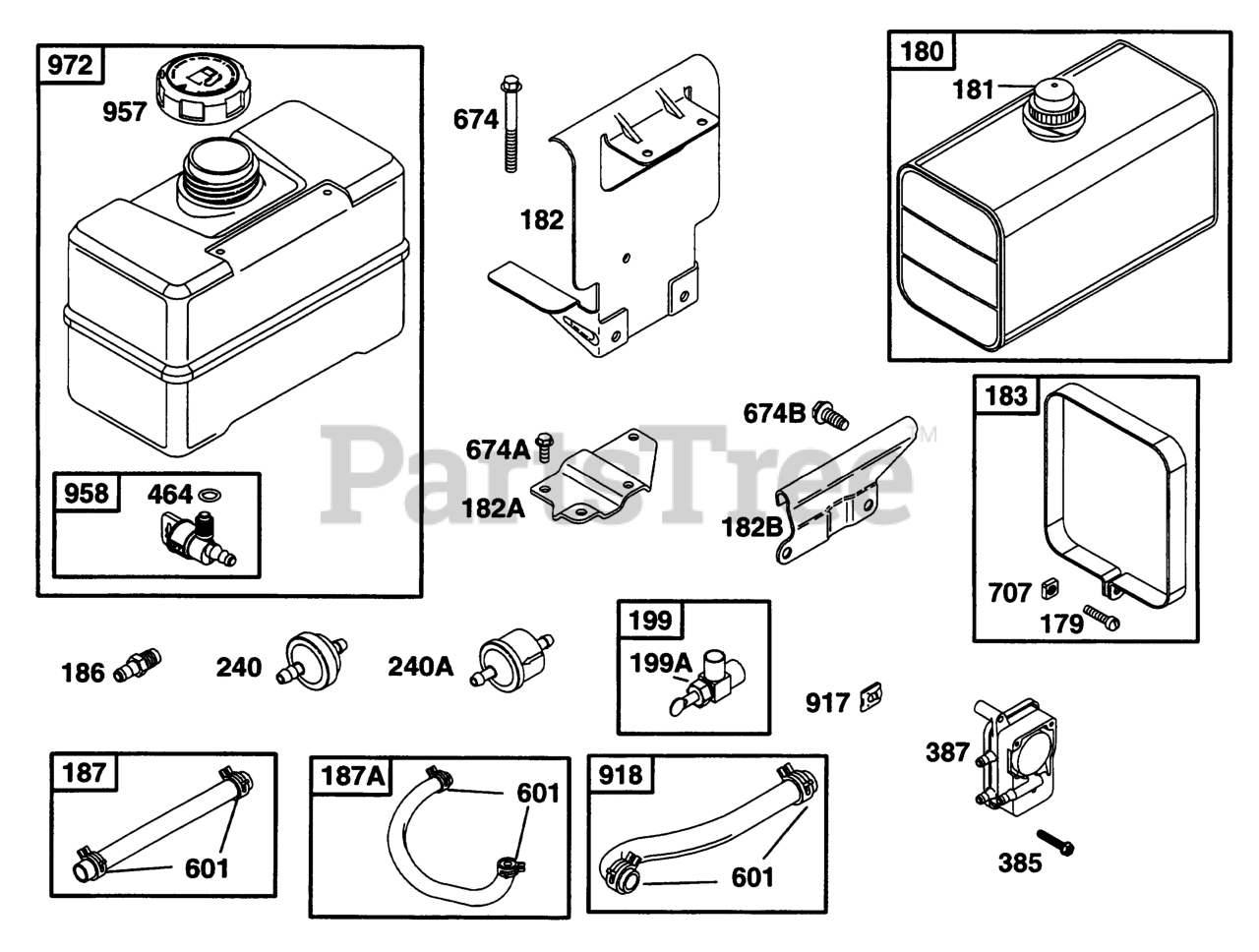

226432-0114-01 - Briggs & Stratton Horizontal Engine Fuel Tank Grps Parts Diagram

Horizontal Engine

Fuel Tank Grps Parts Diagram

  • Title

179

Briggs & Stratton 91257

Screw (Fuel Tank Strap)
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291488

Tank-Fuel (Metal)

$

$

Not available

181

Briggs & Stratton 392305

Cap-Fuel Tank (Metal)
(Superseded to 791545)

$

$

Not available

182B

Briggs & Stratton 224856

Bracket-Fuel Tank (Lower)
(Superseded to 690487)

$19.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 224854

Bracket, Tank Top"
(Superseded to 691199)

$14.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 224878

Bracket-Fuel Tank (Lower)

$

$

Not available

183

Briggs & Stratton 291490

Strap-Fuel Tank
(Superseded to 691937)

$33.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

187A

Briggs & Stratton 497029

Line-Fuel (Molded)

$16.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Line-Fuel (Cut To Required Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

199A

Briggs & Stratton 293934

Valve-Fuel Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet-Tank Assembly
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

240A

Briggs & Stratton 493629

Filter-Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

385

Briggs & Stratton 94789

Screw
(Superseded to 691673)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 496257

Pump-Fuel
(Superseded to 799056)

$30.99

$

In Stock, Qty 20+

0

464

Briggs & Stratton 280203

Seal-O Ring
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

Clamp-Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

674A

Briggs & Stratton 94095

Screw
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

674B

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

674

Briggs & Stratton 94622

Screw (Fuel Tank Bracket)
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

707

Briggs & Stratton 90970

Nut
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Handle-Shut Valve
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 398367

Hose-Vacuum
(Superseded to 791744)

$14.99

$

In Stock, only 2 left!

0

957

Briggs & Stratton 493988

Cap-Fuel Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 399517

Valve-Fuel Shut Off
(Superseded to 698182)

$

$

Not available

972

Briggs & Stratton 493337

Tank-Fuel (Plastic)
(Superseded to 691993)

$166.99

$

In Stock, Qty 10

0
