226432-0114-01 - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

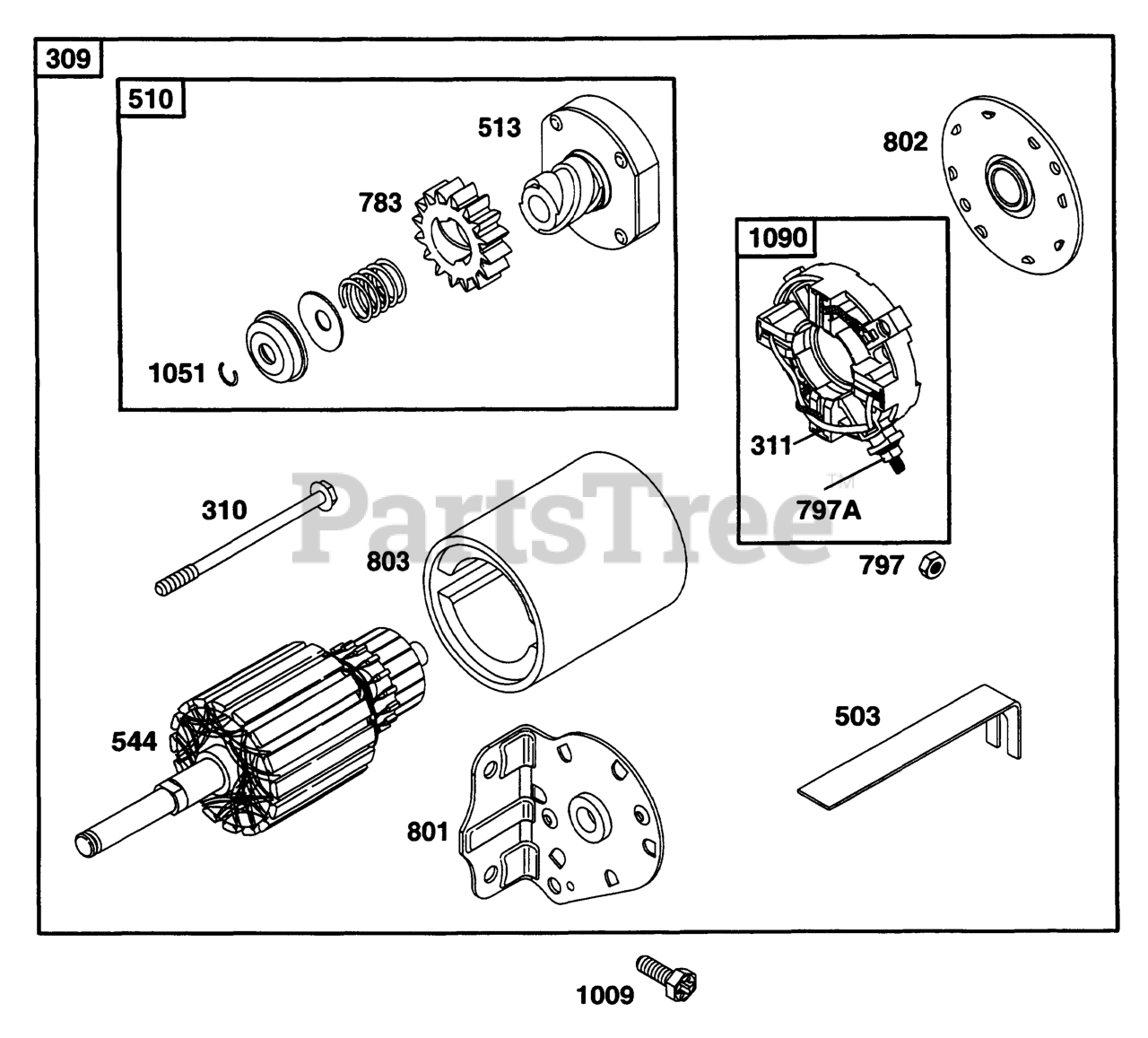

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 693054

Motor-Starter
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

Bolt (Starter Motor)
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

503

Briggs & Stratton 806000

Strap-Starter
(Superseded to 691532)

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

In Stock, only 4 left!

0

513

Briggs & Stratton 398003

Clutch-Drive
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 497603

Armature-Starter
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693059

Gear-Pinion
(Superseded to 695708)

$6.99

$

In Stock, only 2 left!

0

797

Briggs & Stratton 693167

NUT

$4.49

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 94010

Nut (Brush Retainer)
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

Cap-End
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 497604

Housing-Starter
(Superseded to 693757)

$25.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 263080

Ring-Retaining
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 497605

Retainer-Brush
(Superseded to 691293)

$29.99

$

In Stock, Qty 5

0
