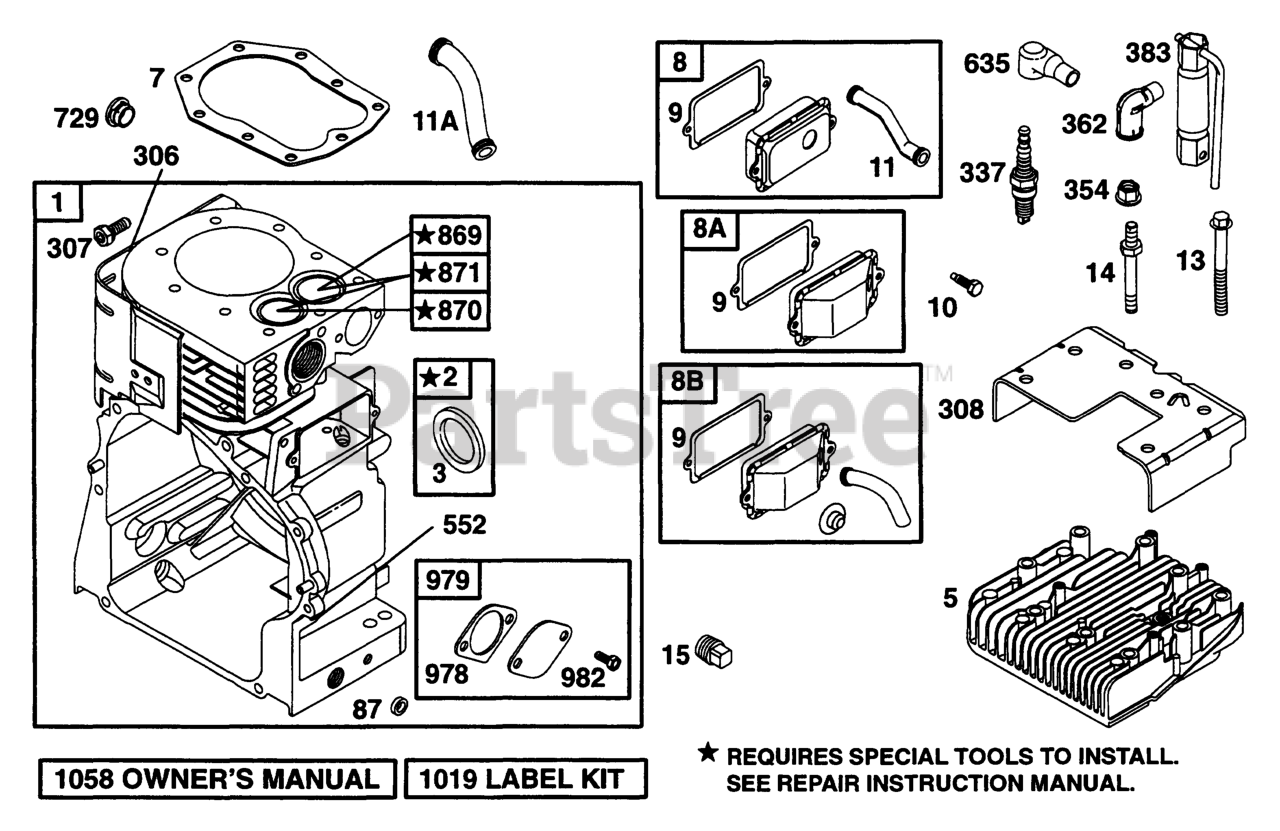

226432-0050-XX - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 497411

Cylinder Assembly

$477.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Kit-Bushing/seal (Magneto Side)
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil (Magneto Side)
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214194

Head-Cylinder
(Superseded to 690385)

$116.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

$9.49

$

In Stock, only 3 left!

0

8B

Briggs & Stratton 497710

Breather Assembly

$55.99

$

In Stock, only 1 left!

0

8A

Briggs & Stratton 495736

Breather Assembly

$42.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 498038

Breather Assembly

$60.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11A

Briggs & Stratton 280225

Tube-Breather
(Superseded to 691899)

$13.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280819

Tube-Breather
(Superseded to 691907)

$24.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 280819

Tube-Breather
(Superseded to 691907)

$24.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 94622

Screw (Cylinder Head)
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 94776

Stud (Cylinder Head)
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 92738

Plug-Pipe
(Superseded to 690289)

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

87

Briggs & Stratton 491323

Seal-Governor Arm
(Superseded to 692407)

$7.99

$

In Stock, Qty 8

0

306

Briggs & Stratton 224882

Shield-Cylinder
(Superseded to 690489)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

Screw (Cylinder Shield)
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 224897

Cover-Cylinder Head
(Superseded to 690491)

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark (Resistor)
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

354

Briggs & Stratton 94726

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

362

Briggs & Stratton 392273

Elbow-Suppression
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

552

Briggs & Stratton 491893

Bushing-Governor

$107.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 8

0

729

Briggs & Stratton 281396

Clip-Wire
(Superseded to 691336)

$4.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 261463

Seat-Valve (Intake)
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 262924

Seat-Valve (Exhaust)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Bushing-Valve Guide (Exhaust)

$14.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 271736

Gasket (Oil Gard)
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 494807

Cover-Oil Guard
(Superseded to 691382)

$4.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94658

Screw
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 497156

Kit-Label

$43.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272848

Owner's Manual (Non Emission Engines)

$

$

Not available

1058

Briggs & Stratton 273682

Owner's Manual (Emission Engines)

$

$

Not available
