22638x199A - Briggs & Stratton 22" Walk-Behind Mower (1996) (AAFES) Handle Assembly Parts Diagram

22" Walk-Behind Mower

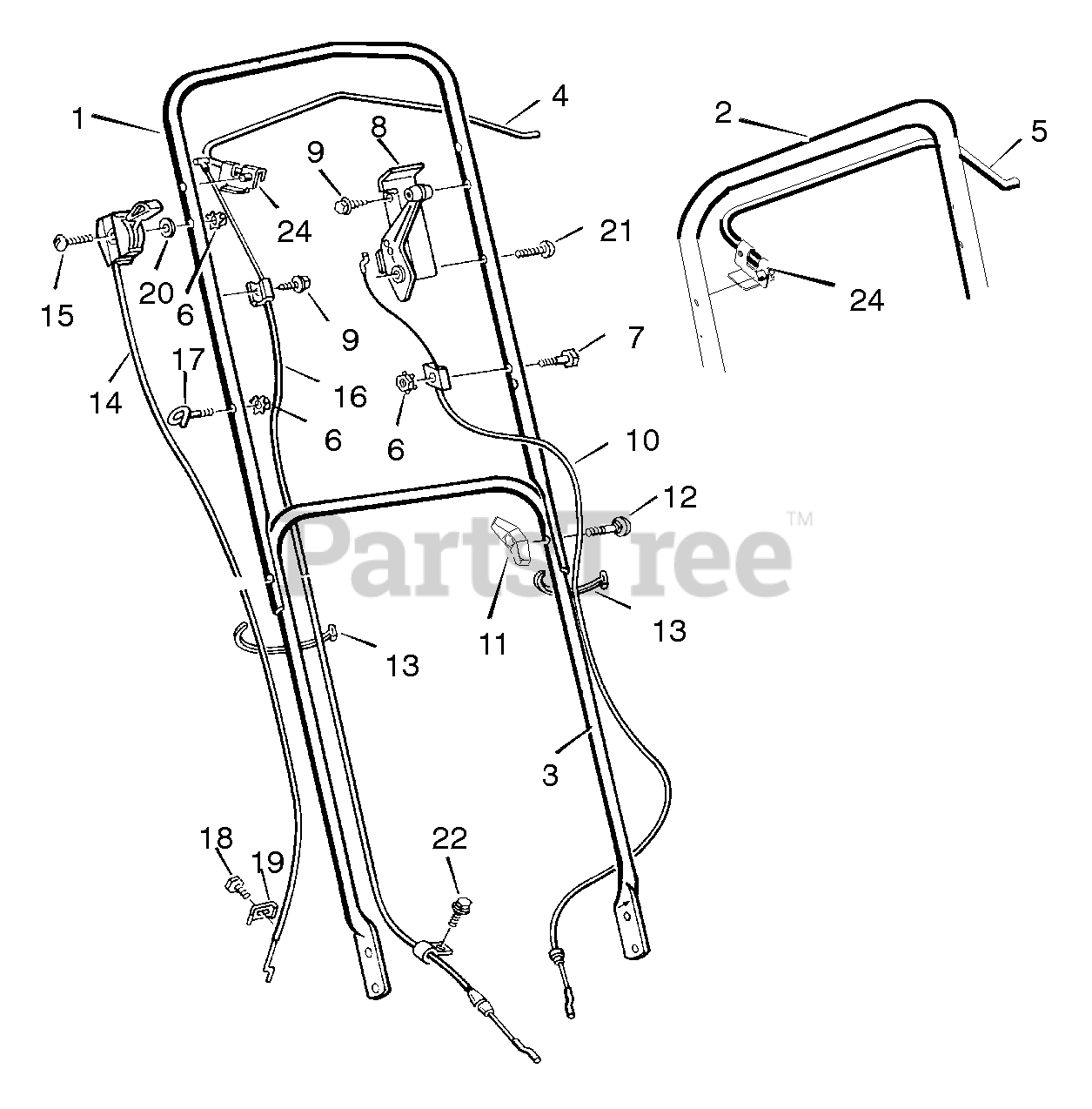

Handle Assembly Parts Diagram

  • Title

1

Murray 071580E701MA

Handle, Upper- Curved (Black)

$170.99

$

In Stock, only 1 left!

0

--

Murray 71580E724

Handle, Upper- Curved (Gray)

$

$

Currently unavailable

2

Murray 071581E701MA

Handle, Upper-Straight (Black)

$159.99

$

Usually ships in 2-12 days

0

--

Murray 71581E724

Handle, Upper-Straight (Gray)

$

$

Currently unavailable

3

Murray 071582E701

Handle, Lower (Black)

$

$

Currently unavailable

--

Murray 71582E724

Handle, Lower (Gray)

$

$

Currently unavailable

4

Murray 043792MA

Lever, Stop - Curved

$76.99

$

Usually ships in 2-12 days

0

5

Murray 043653E701MA

Lever, Stop- Straight

$34.99

$

Usually ships in 2-12 days

0

6

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 03X151

Screw

$

$

Currently unavailable

8

Murray 071249

Drive Control

$

$

Currently unavailable

9

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

10

Murray 071251MA

Cable, Drive

$23.99

$

Usually ships in 2-12 days

0

11

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

14

Murray 071176MA

Throttle Control

Note: (For Models with Briggs & Stratton engines.)

$25.99

$

Usually ships in 2-12 days

0

--

Murray 071175

Throttle Control

Note: (For Models with Tecumseh engines.)

$

$

Currently unavailable

15

Murray 03X144

Bolt

$

$

Not available

16

Murray 043830MA

Engine Stop Cable *

$21.99

$

Usually ships in 2-12 days

0

--

Murray 043829MA

Engine Stop Cable *

$15.99

$

Usually ships in 2-12 days

0

17

Murray 043956MA

GUIDE, ROPE

$

$

Not available

18

Murray 26X268MA

Screw *

$3.99

$

Usually ships in 2-12 days

0

19

Murray 042294

Clamp

Note: (For Models with Briggs & Stratton engines)

$

$

Not available

20

Murray 17X188

Washer

$1.99

$

Usually ships in 2-12 days

0

21

Murray 003X97 Z

Screw

$

$

Currently unavailable

22

Murray 26X234

Screw

$1.99

$

Usually ships in 2-12 days

0

24

Murray 1101454E701MA

Bracket, Stop Lever

$20.99

$

In Stock, only 1 left!

0
