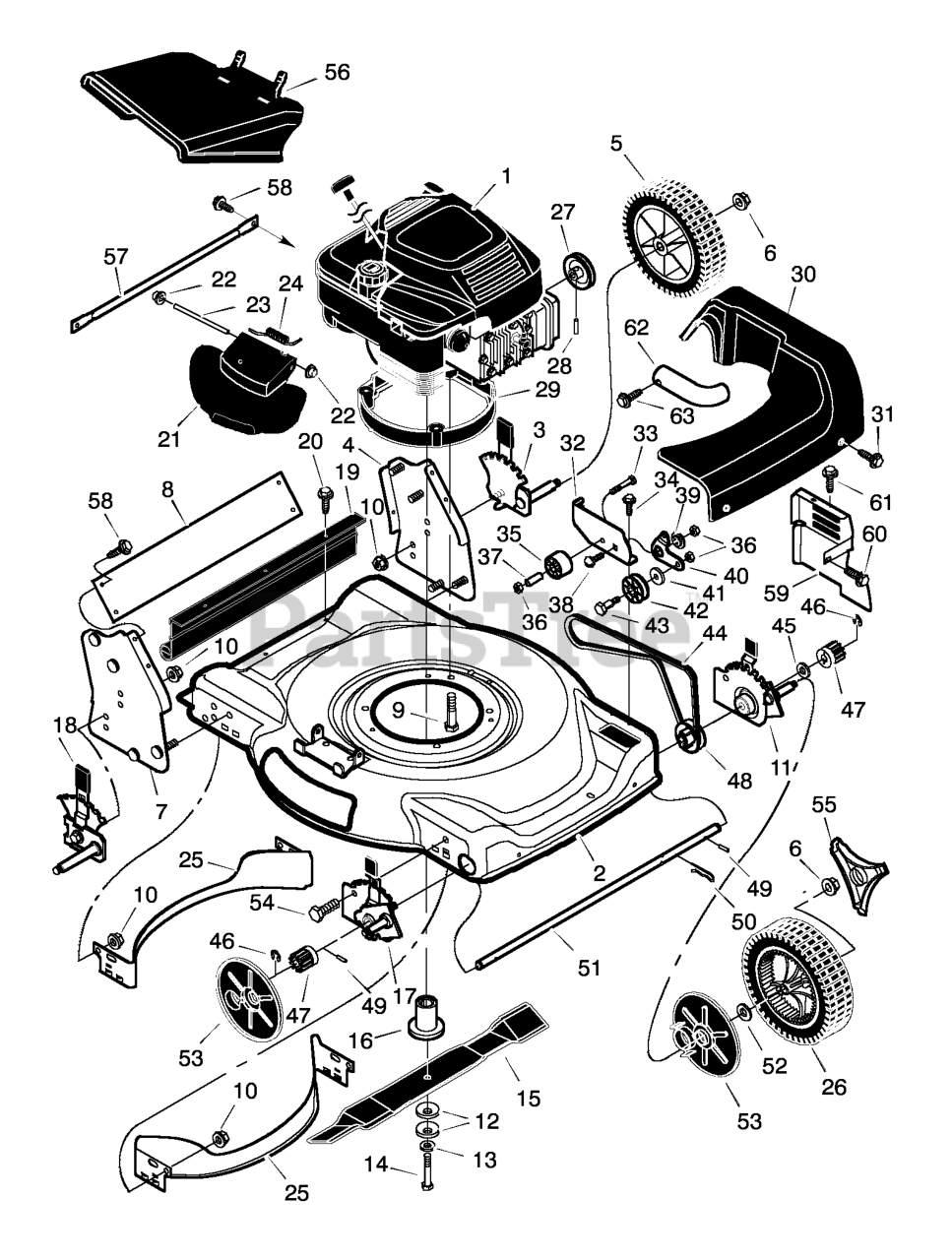

22636x31A - Scotts 22" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 776023

Housing

$

$

Not available

3

Murray 672679

Height Adjuster, Left Rear

$11.99

$

Usually ships in 2-12 days

0

4

Murray 672675E122

Bracket, Left Handle

$17.99

$

Usually ships in 2-12 days

0

5

Murray 672434

Wheel and Tire, Rear

$14.99

$

Usually ships in 2-12 days

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 672674E122

Bracket, Right Handle

$14.99

$

Usually ships in 2-12 days

0

8

Murray 672660E122

Brace, Handle Bracket

$11.99

$

Usually ships in 2-12 days

0

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672681MA

Height Adjuster, Left Front

$125.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

15

Murray 672573E701MA

Blade

$

$

Not available

16

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672680MA

Height Adjuster, Right Front

$125.99

$

Usually ships in 2-12 days

0

18

Murray 672678

Height Adjuster, Right Rear

$11.99

$

Usually ships in 2-12 days

0

19

Murray 672684

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672618

Cover, Mulcher

$6.49

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X19 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 166X38MA

Spring

$4.99

$

In Stock, only 2 left!

0

25

Murray 672332E701

Baffle

$

$

Currently unavailable

26

Murray 672436

Wheel and Tire, Drive

$

$

Currently unavailable

27

Murray 071434MA

Pulley

$16.99

$

Usually ships in 2-12 days

0

28

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

29

Murray 672671 E700

Base, Engine

$

$

Currently unavailable

30

Murray 672347

Cover, Belt

$

$

Currently unavailable

31

Murray 26X279MA

Screw

$3.49

$

Usually ships in 2-12 days

0

32

Murray 672423 Z

Bracket, Idler Support

$

$

Currently unavailable

33

Murray 001X81MA

Bolt

$3.49

$

In Stock, only 2 left!

0

34

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

35

Murray 071778MA

Idler

$

$

Not available

36

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

37

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 5

0

38

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

39

Murray 071789MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

40

Murray 071742 Z

Arm, Idler

$

$

Currently unavailable

41

Murray 071788MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

42

Murray 071779MA

Pulley, Idler

$

$

Not available

43

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

44

Murray 037X94MA

Belt

$18.99

$

Usually ships in 2-12 days

0

45

Murray 17X186MA

Washer

$

$

Not available

46

Murray 011X16MA

Ring, Retainer

$3.99

$

Usually ships in 2-12 days

0

47

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

48

Murray 071791MA

Pulley

$16.99

$

Usually ships in 2-12 days

0

49

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

50

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

51

Murray 672508MA

Axle

$34.99

$

Usually ships in 2-12 days

0

52

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

53

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

54

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

55

Murray 672446

Hub Cap

$

$

Not available

56

Murray 672619

Deflector, Chute

$

$

Currently unavailable

57

Murray 672504E700

Brace

$

$

Currently unavailable

58

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

59

Murray 672703

Shield, Heat

$

$

Currently unavailable

60

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

61

Murray 26X279MA

Screw

$3.49

$

Usually ships in 2-12 days

0

62

Murray 672710

Tube, Exhaust

$

$

Currently unavailable

63

Murray 26X208MA

Screw

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-98572

Book, Instruction

$

$

Currently unavailable
