22623 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) GAS TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

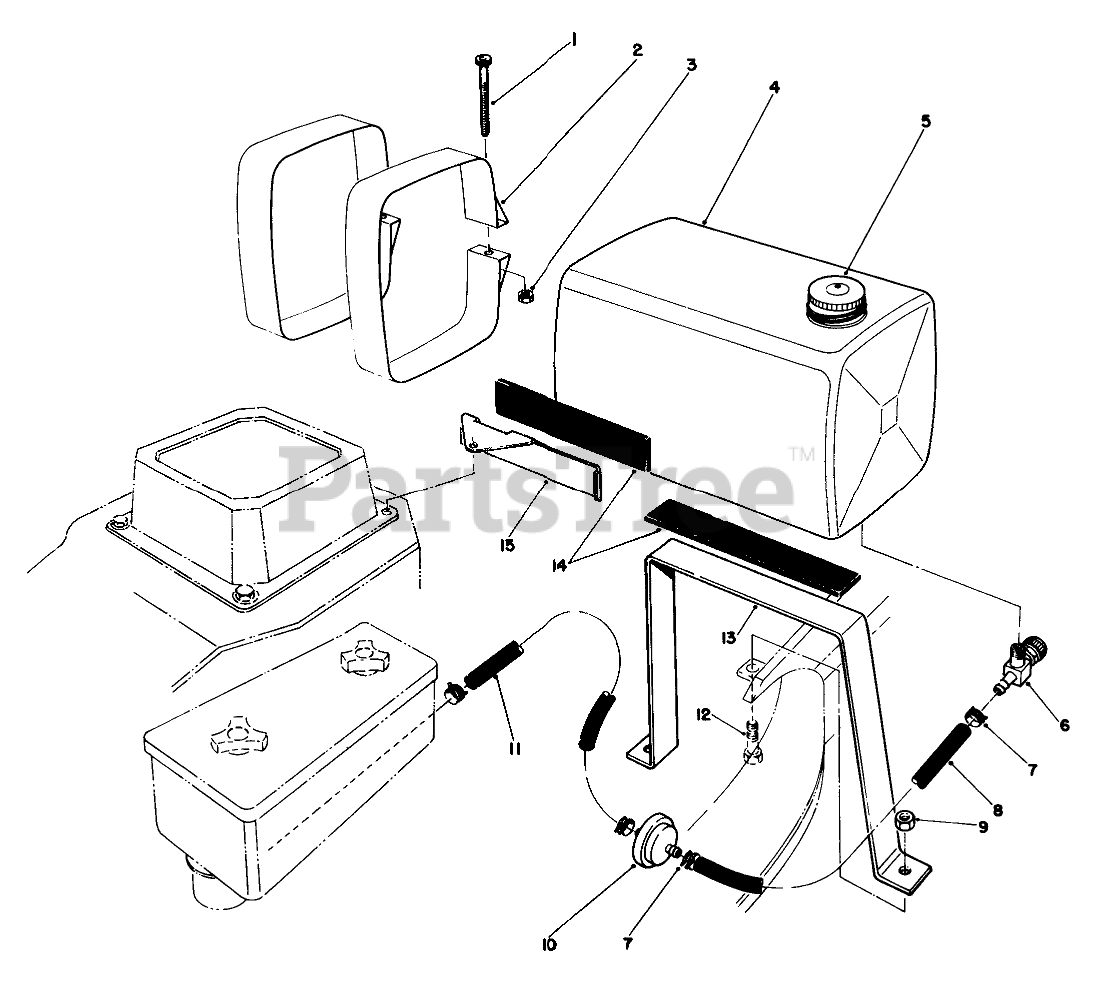

GAS TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 3274-62

SCREW-HSH

$

$

Not available

2

Toro 52-2320

TANK MTG STRAP WA

$

$

Not available

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

4

Toro 52-2330

Tank-Gas (Incl. Ref. #5)

$

$

Not available

5

Toro 55-4830

CAP CAP

$

$

Not available

6

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

7

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

8

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

11

Toro 51-3218

FUEL LINE

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 61-8230

TANK SUPPORT

$

$

Not available

14

Toro 52-2290

ISOLATOR PAD

$

$

Not available

15

Toro 61-8240

TANK FRAME

$

$

Not available
