22622 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

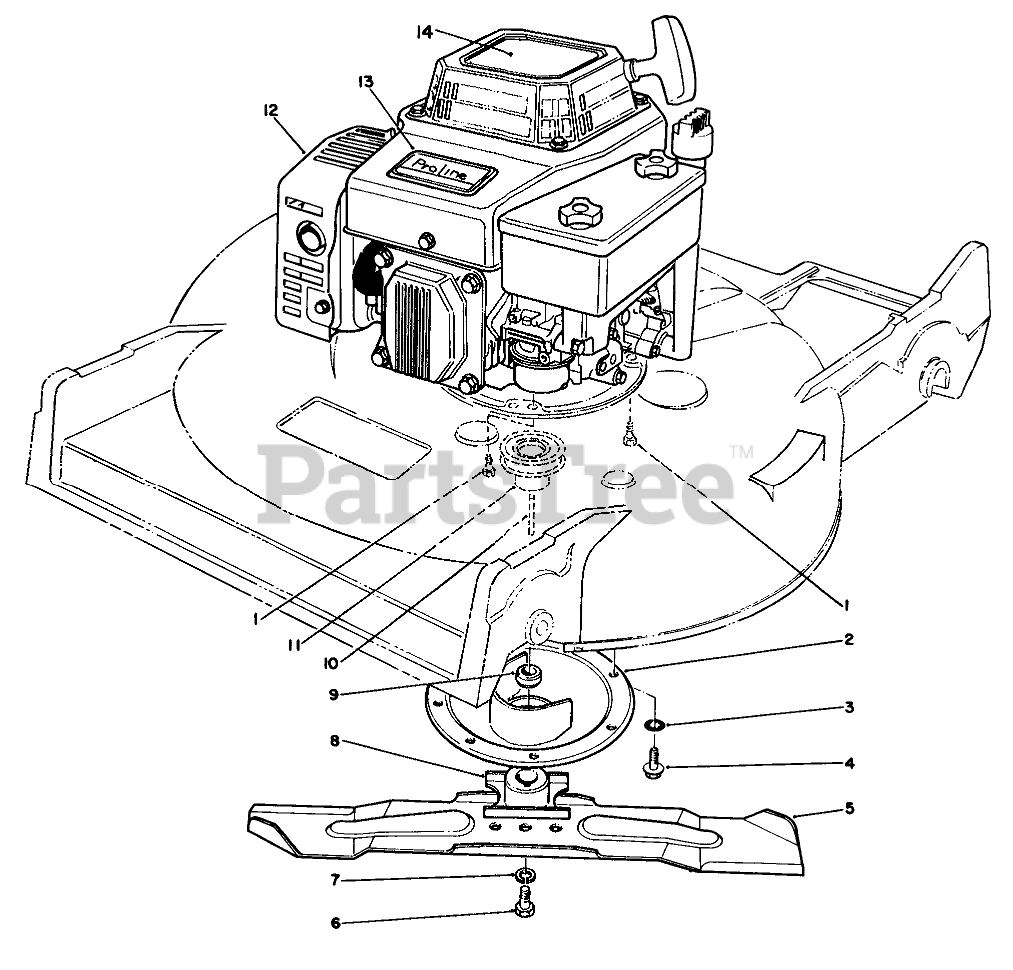

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

2

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

3

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

6

Toro 26-0670

SCREW-BLADE

$

$

Not available

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

11

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

12

Toro 72-4143

Engine
(Superseded to 72-4144)

$

$

Not available

13

Toro 71-1260

DECAL - PROLINE

$7.99

$

Usually ships in 3-6 days

0

14

Toro 77-0050

DECAL - RECOIL

$

$

Not available
