22622 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) AIR CLEANER (ENGINE MODEL NO. VMH7-4) Parts Diagram

Walk-Behind Mower

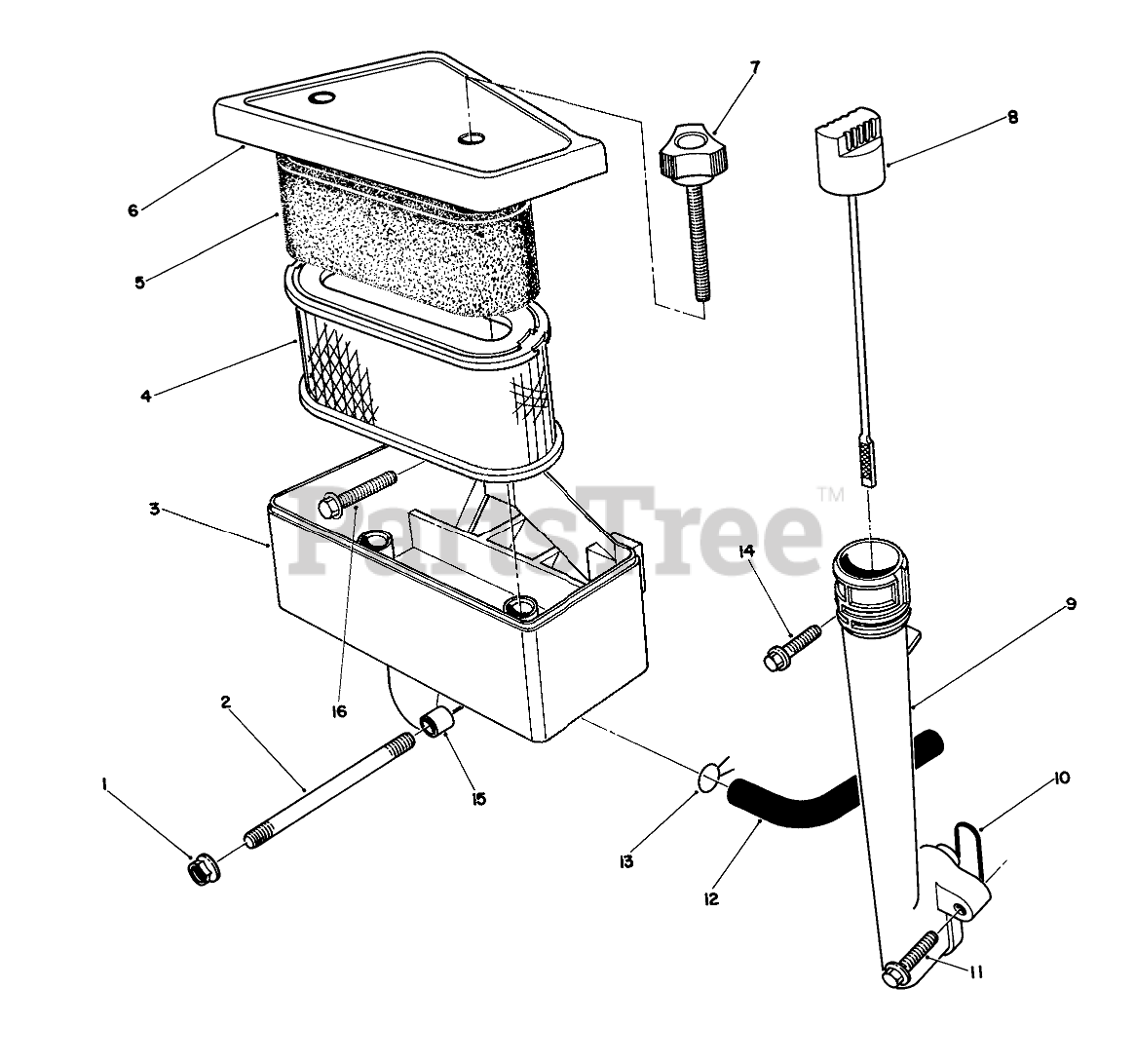

AIR CLEANER (ENGINE MODEL NO. VMH7-4) Parts Diagram

  • Title
1

$6.99

$

In Stock, Qty 5

0

2

$

$

Not available

3

Toro 61-9360

AIR CLEANER BODY

$

$

Not available

4

Toro 62-3970

Air Filter Assembly (Incl. Ref. #5)

$

$

Not available

5

Filter-Foam

$

$

Not available

6

Toro 61-9370

AIR CLEANER COVER B

$42.99

$

Usually ships in 3-6 days

0

7

Toro 62-3990

RETAINER - COVER

$20.99

$

Usually ships in 3-6 days

0

8

Toro 81-4730

DIPSTICK

$

$

Not available

9

$

$

Not available

10

Toro 81-4150

O-RING

$9.99

$

Usually ships in 3-6 days

0

11

$

$

Not available

12

$

$

Not available

13

Toro 81-4190

CLAMP F/W ENGINE

$

$

Not available

14

$

$

Not available

15

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

16

Toro 51-3220

HEX FL HD M.6X1.0X25MM

$

$

Not available

Toro 75-9850

OIL DRAIN TUBE

$

$

Not available
