22621 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

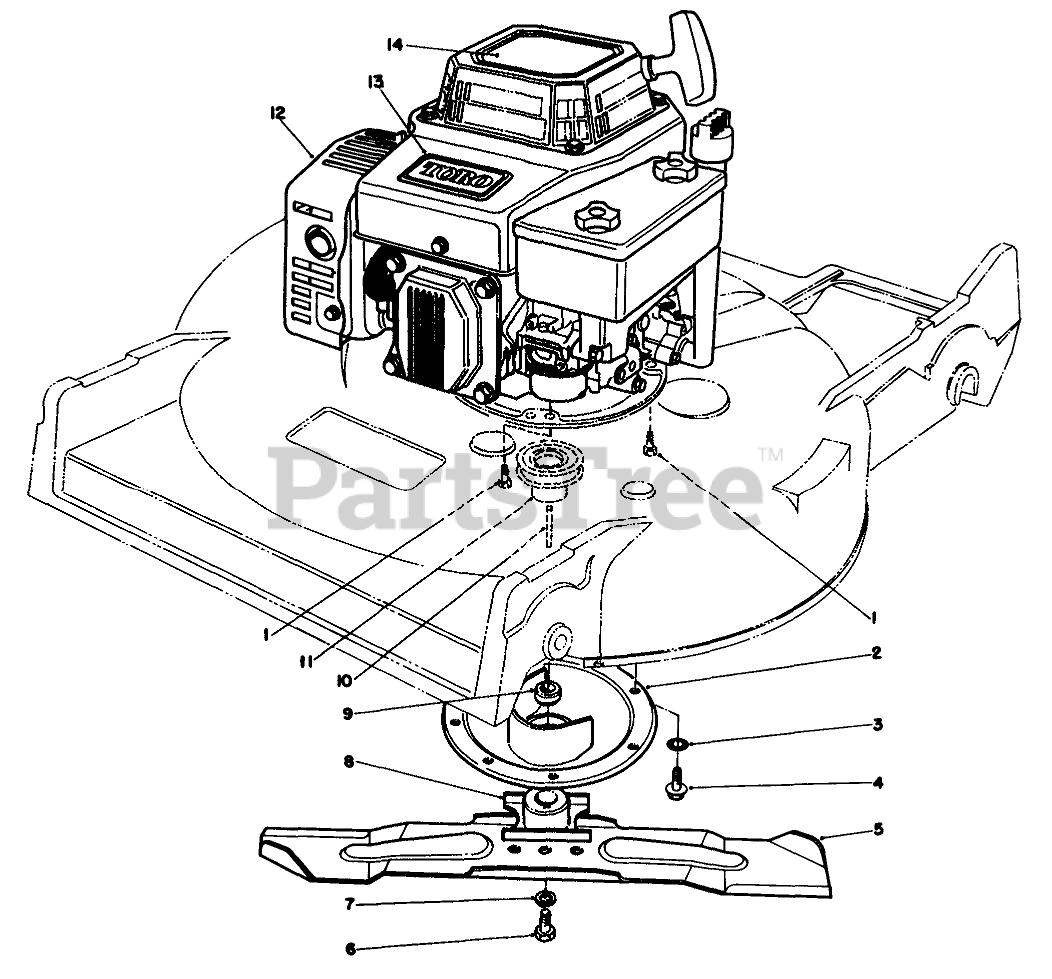

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

2

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$101.99

$

Usually ships in 3-6 days

0

3

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

6

Toro 26-0670

SCREW-BLADE

$

$

Not available

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$72.99

$

In Stock, only 1 left!

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

11

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

12

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

13

Toro 46-8291

Plate-Logo
(Superseded to 71-1260)

$7.49

$

Usually ships in 3-6 days

0

14

Toro 61-8330

LOGO PLATE - RECOIL

$30.99

$

Usually ships in 3-6 days

0
