22621 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

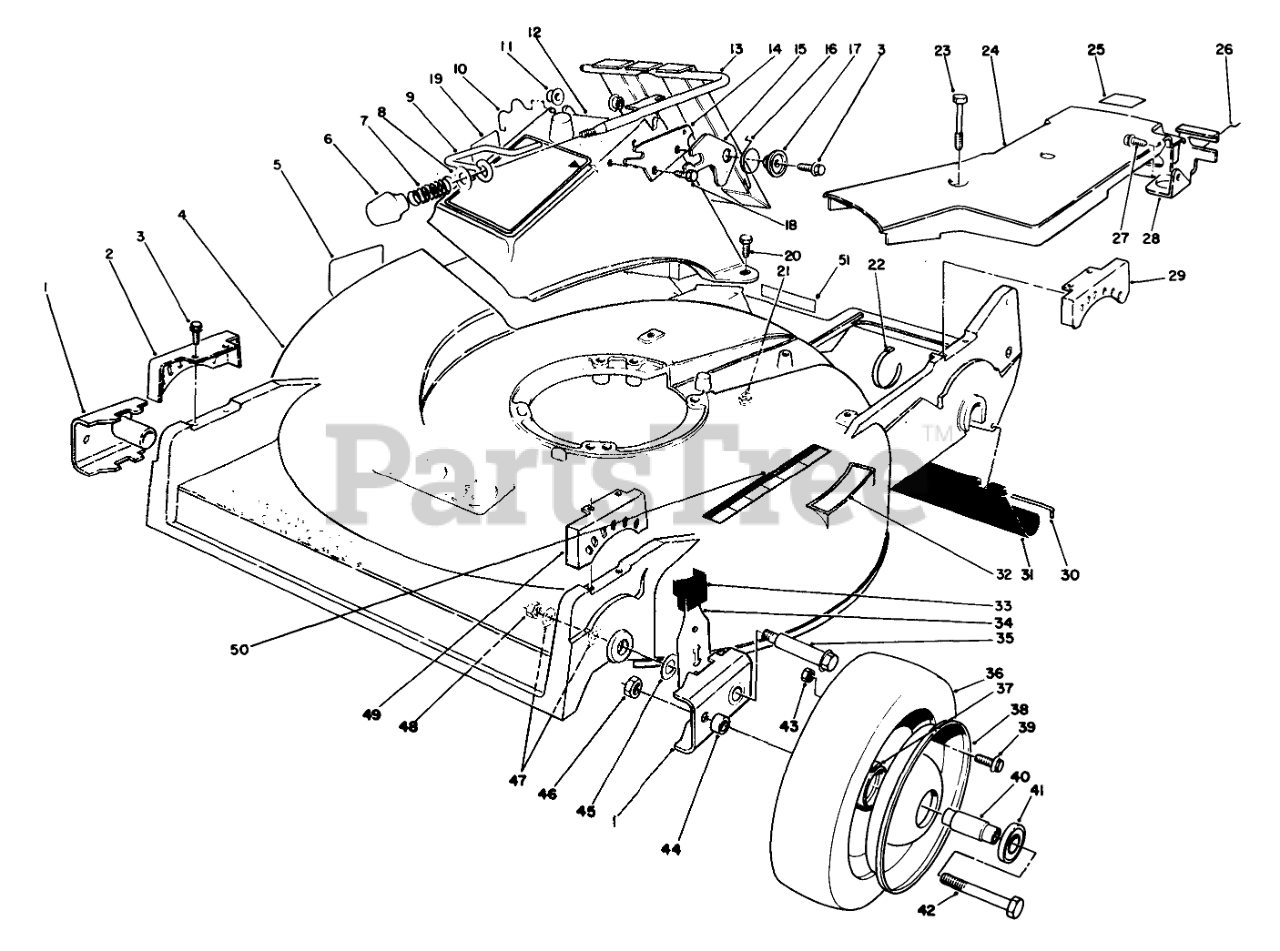

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 12-6189

Housing-Commercial (Incl. Ref. #5 & 32)
(Superseded to 14-2499)

$

$

Not available

5

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

6

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 36-1350

DISCHARGE CHUTE B

$416.99

$

Usually ships in 3-6 days

0

13

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 62-3870

Decal-Danger
(Superseded to 93-6657)

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 6

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

24

Toro 63-9442

Cover-Belt
(Superseded to 74-1770)

$46.99

$

In Stock, only 4 left!

0

25

Toro 62-7580

Label-Grease
(Superseded to 93-6664)

$9.49

$

Usually ships in 3-6 days

0

26

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

29

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

$27.99

$

In Stock, only 4 left!

0

30

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

31

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

32

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

33

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

34

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

35

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

36

Toro 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

37

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

38

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

39

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

40

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

41

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

42

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

43

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

45

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

46

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

47

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

48

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

49

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

50

Toro 62-4060

DECAL - DANGER

$

$

Not available

51

Toro 40-2850

Decal

$

$

Not available

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #36-41 & 43)
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

Toro 11-5639

Chute & Door Assembly (Incl. Ref. #3 & 6-21)

$

$

Not available
