22618 - Toro Log Splitter (SN: 404320000 - 407599999) Frame and Jack Assembly Parts Diagram

Log Splitter

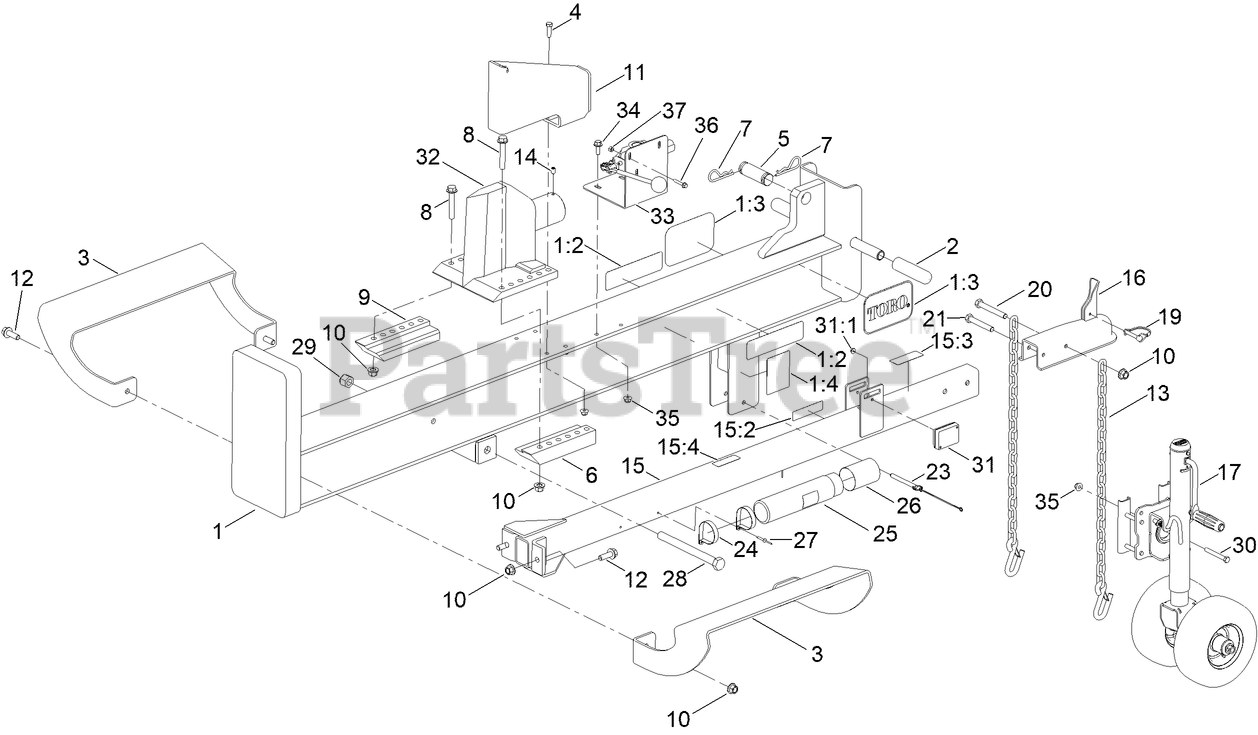

Frame and Jack Assembly Parts Diagram

  • Title

1

Toro 137-0634

BEAM ASM

$2293.99

$

Usually ships in 3-6 days

0

1:2

Toro 137-0552

DECAL

$19.99

$

Usually ships in 3-6 days

0

1:3

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

1:4

Toro 137-0588

DECAL-WARNING, PIN

$33.99

$

Usually ships in 3-6 days

0

2

Toro 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 6

0

3

Toro 136-4668-03

PLATE-CATCH

$165.99

$

Usually ships in 3-6 days

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 120-1420

PIN-PIVOT

$50.99

$

Usually ships in 3-6 days

0

6

Toro 120-1804-03

BAR-SLIDE, LH
(Superseded to 145-4907-03)

$

$

Not available

7

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 9

0

8

Toro 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

9

Toro 120-1809-03

BAR-SLIDE, RH
(Superseded to 145-4908-03)

$

$

Not available

10

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

11

Toro 140-3617

DISLODGER BRACKET ASM

$

$

Not available

12

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

13

Toro 119-3045

CHAIN-SAFETY, TRAILER

$28.99

$

Usually ships in 3-6 days

0

14

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

15

Toro 137-0635

TUBE ASM

$479.99

$

Usually ships in 3-6 days

0

15:2

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

15:3

Toro 137-0554

DECAL-CAUTION

$31.99

$

Usually ships in 3-6 days

0

15:4

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

16

Toro 117-8371

RECEIVER-HITCH, BALL

$132.99

$

Usually ships in 3-6 days

0

17

Toro 120-1421

JACK ASM

$410.99

$

Usually ships in 3-6 days

0

19

Toro 105-9245

PIN-LOCK

$11.99

$

Usually ships in 3-6 days

0

20

Toro 325-15

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

21

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

23

Toro 136-4588

PIN

$27.99

$

Usually ships in 3-6 days

0

24

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

25

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

26

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

27

Toro 107-0386

RIVET-BLIND

$5.49

$

Usually ships in 3-6 days

0

28

Toro 120-1796

BOLT-HH

$10.99

$

Usually ships in 3-6 days

0

29

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

30

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

31

Toro 127-7562

LAMP-MARKER, FRONT SIDE

$10.99

$

Usually ships in 3-6 days

0

31:1

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

32

Toro 137-0569-03

WEDGE ASM

$

$

Not available

33

Toro 137-0571-03

BRACKET-VALVE

$33.99

$

In Stock, only 2 left!

0

34

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 94-5781

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0
