22618 - Toro Log Splitter (SN: 402000000 - 404319999) Engine, Axle and Hydraulic Tank Assembly Parts Diagram

Log Splitter

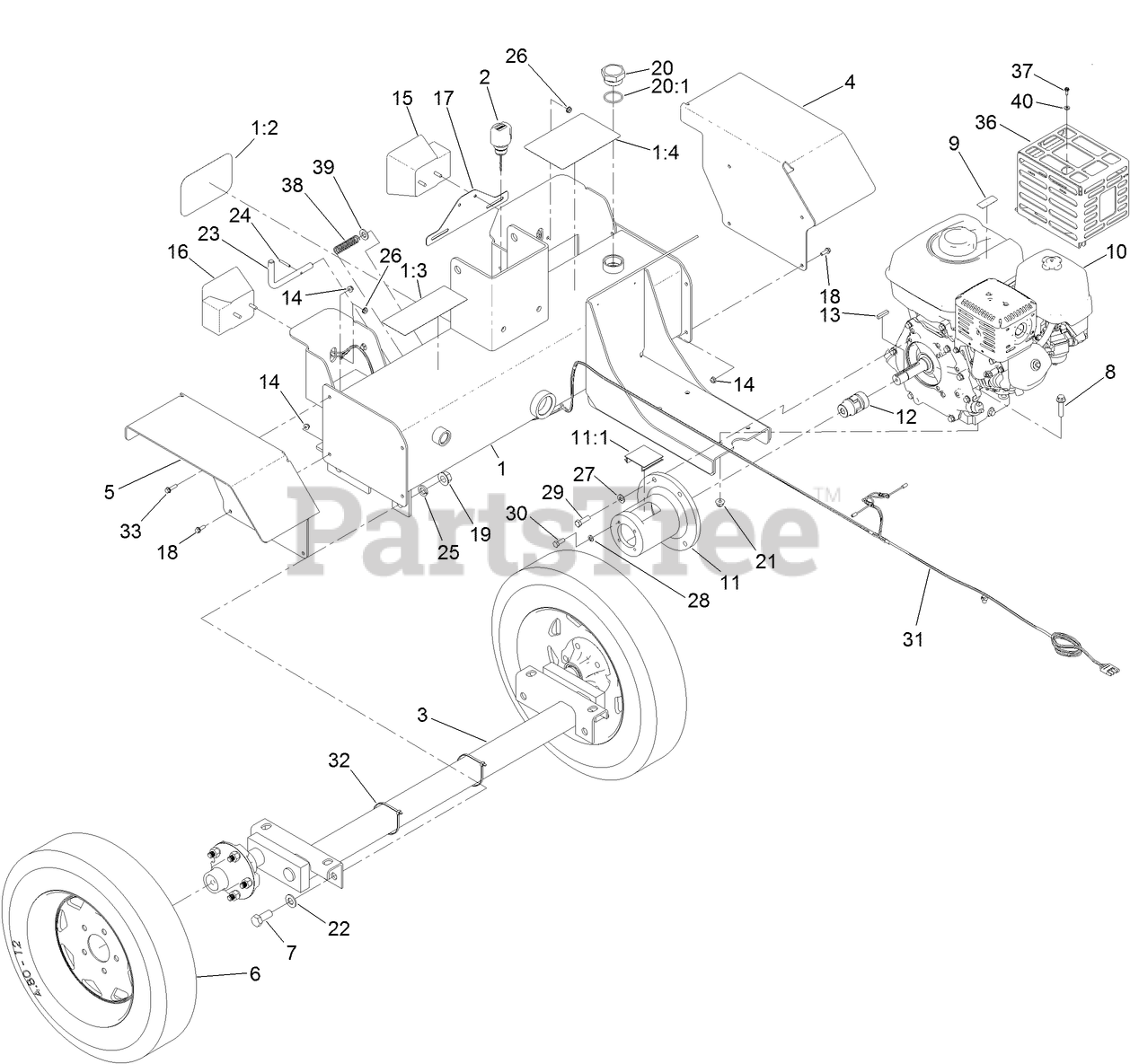

Engine, Axle and Hydraulic Tank Assembly Parts Diagram

  • Title

1

Toro 137-0637

HYD TANK ASM

$2039.99

$

Usually ships in 3-6 days

0

1:2

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

1:3

Toro 137-0551

DECAL-WARNING

$39.99

$

Usually ships in 3-6 days

0

1:4

Toro 137-0590

DECAL-SERVICE

$43.99

$

Usually ships in 3-6 days

0

2

Toro 132-9292

BREATHER

$45.99

$

Usually ships in 3-6 days

0

3

Toro 136-4575

AXLE ASM

$1529.99

$

Usually ships in 3-6 days

0

4

Toro 137-0639-03

FENDER-LH

$141.99

$

Usually ships in 3-6 days

0

5

Toro 137-0638-03

FENDER-RH

$140.99

$

Usually ships in 3-6 days

0

6

Toro 120-1206

WHEEL AND TIRE ASM

$147.99

$

Usually ships in 3-6 days

0

7

Toro 327-4

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

8

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

9

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0

10

Toro 136-4563

ENGINE-HONDA, GX270

$1763.99

$

Usually ships in 3-6 days

0

11

Toro 120-1213

HOUSING-MOUNT,PUMP

$

$

Not available

11:1

Toro 120-1846

COVER-ACCESS

$

$

Currently unavailable

12

Toro 137-0566

COUPLER-FLEX

$178.99

$

Usually ships in 3-6 days

0

13

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 120-3735

LIGHT-TAIL, LH

$28.99

$

Usually ships in 3-6 days

0

16

Toro 120-3734

LIGHT-TAIL, RH

$28.99

$

Usually ships in 3-6 days

0

17

Toro 125-8659-03

HOLDER-PLATE, LICENSE

$9.49

$

Usually ships in 3-6 days

0

18

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

19

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

20

Toro 108-8468

PLUG-HH

$24.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-101

O-RING

$4.49

$

In Stock, only 1 left!

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 119-1868

WASHER

$3.49

$

Usually ships in 3-6 days

0

23

Toro 137-0601

PIN-LATCH

$45.99

$

Usually ships in 3-6 days

0

24

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

25

Toro 3253-23

WASHER-LOCK

$5.49

$

In Stock, only 3 left!

0

26

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

28

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

29

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 136-4571

HARNESS-WIRE

$160.99

$

Usually ships in 3-6 days

0

32

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

33

Toro 120-4654

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

36

Toro 137-0595-03

GUARD-MUFFLER

$203.99

$

Usually ships in 3-6 days

0

37

Toro 119-7568

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

38

Toro 95-4256

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

39

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

40

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
