22618 - Toro Log Splitter (SN: 400000000 - 401999999) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

Log Splitter

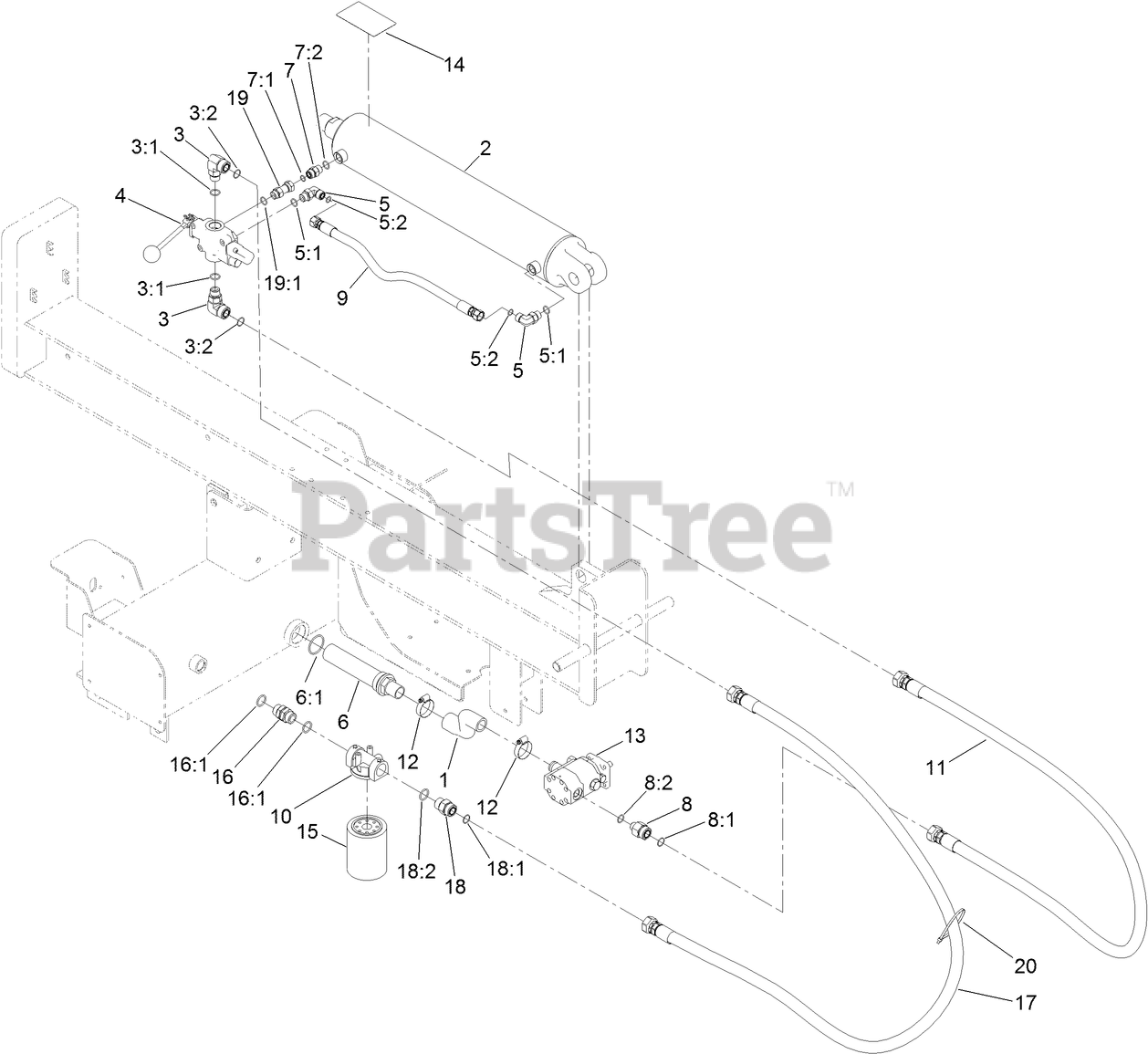

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 136-4675

HOSE-MOLDED

$25.99

$

Usually ships in 3-6 days

0

2

Toro 136-4562

CYLINDER-HYD

$

$

Not available

3

Toro 340-16

FITTING-HYD, 90 DEG

$74.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

3:2

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 136-4583

VALVE-CONTROL

$399.99

$

Usually ships in 3-6 days

0

5

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 2 left!

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

5:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Toro 105-0131

STRAINER-TANK, OIL

$246.99

$

Usually ships in 3-6 days

0

6:1

Toro 340-136

O-RING

$7.49

$

Usually ships in 3-6 days

0

7

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

7:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

7:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

8

Toro 98-9921

FITTING-STR

$57.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-145

O-RING
(Superseded to 237-58)

$3.49

$

Usually ships in 3-6 days

0

8:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

9

Toro 132-4013

HOSE-HYD
(Superseded to 144-7460)

$73.99

$

Usually ships in 3-6 days

0

10

Toro 92-5821

HEAD-FILTER

$189.99

$

Usually ships in 3-6 days

0

11

Toro 137-4853

HYD HOSE ASM
(Superseded to 144-7461)

$207.99

$

Usually ships in 3-6 days

0

12

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

13

Toro 136-4569

PUMP-HYD

$1049.99

$

Usually ships in 3-6 days

0

14

Toro 137-0587

DECAL- CAUTION, CONTROL

$43.99

$

Usually ships in 3-6 days

0

15

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 2 left!

0

16

Toro 98-9906

FITTING-THREAD, STRAIGHT

$72.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

17

Toro 137-4854

HYD HOSE ASM
(Superseded to 144-7462)

$207.99

$

Usually ships in 3-6 days

0

18

Toro 340-9

FITTING-STR

$92.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

18:2

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

19

Toro 100-7671

ADAPTER-HYD

$64.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

20

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
