22617x194B - Briggs & Stratton 22" Walk-Behind Mower (2001) Handle Assembly Parts Diagram

22" Walk-Behind Mower

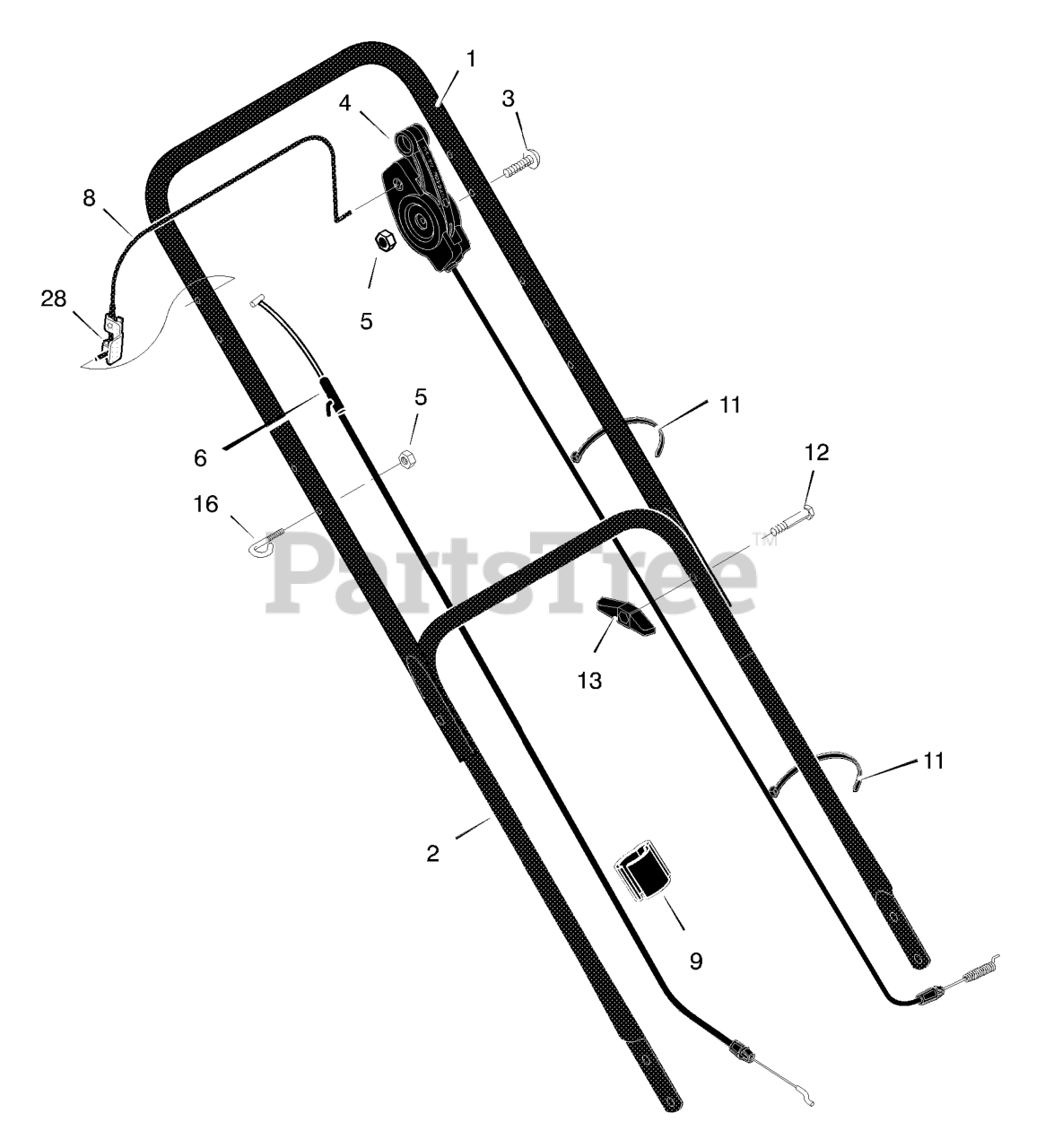

Handle Assembly Parts Diagram

  • Title

1

Murray 071581E701MA

Handle, Upper (Black)

$159.99

$

Usually ships in 2-12 days

0

2

Murray 672572E701MA

Handle, Lower (Black)

$99.99

$

Usually ships in 2-12 days

0

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672873

Control, Drive

$

$

Currently unavailable

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672835MA

Cable, Stop

$13.99

$

Usually ships in 2-12 days

0

8

Murray 672879E701MA

Lever, Stop

$27.99

$

Usually ships in 2-12 days

0

9

Murray 1101352

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

11

UNKNOWN

$

$

Not available

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

28

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable
