22615 HD (SGR-13) - Toro Stump Grinder (SN: 316000001 - 316999999) (2016) ENGINE AND FRAME ASSEMBLY Parts Diagram

Stump Grinder

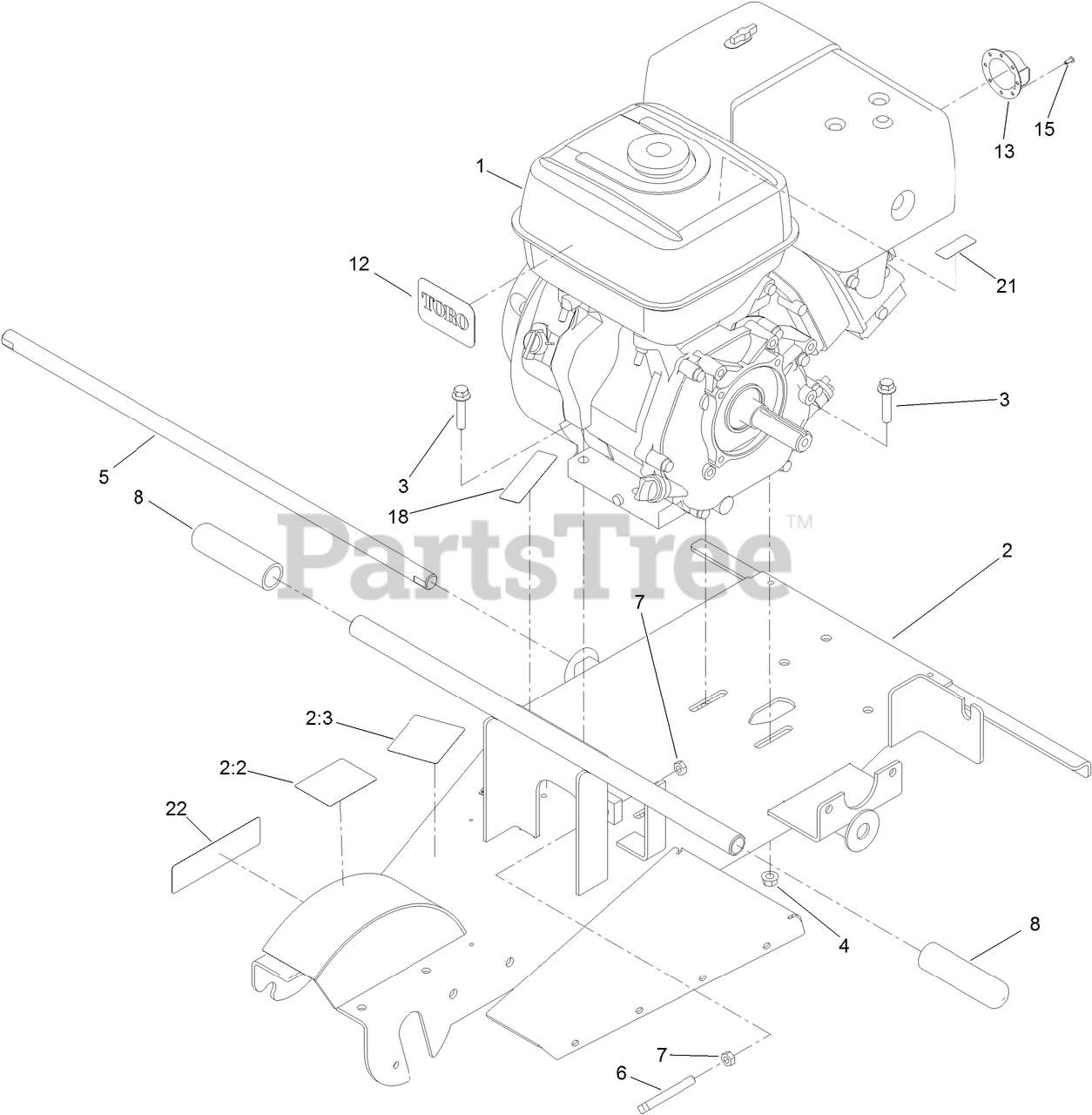

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GX390UT2 QXC9

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GX390UT2 QXC9

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 132-3984

FRAME ASM

$853.99

$

Usually ships in 3-6 days

0

2:2

Toro 119-4690

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

2:3

Toro 119-4693

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

3

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

4

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 120-1252

BAR-AXLE

$52.99

$

Usually ships in 3-6 days

0

6

Toro 119-4729

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

7

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

8

Toro 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 6

0

12

Toro 99-2385

DECAL

$4.99

$

In Stock, only 2 left!

0

13

Toro 120-1886

DEFLECTOR-EXHAUST

$67.99

$

Usually ships in 3-6 days

0

15

Toro 125-0519

SCREW-SELF TAPPING

$1.99

$

In Stock, only 2 left!

0

18

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

21

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0

22

Toro 132-4004

DECAL-ROTATE TOOTH

$23.99

$

Usually ships in 3-6 days

0
