22614 (BC-25) - Toro Brush Chipper (SN: 311000001 - 311999999) (2011) MAIN FRAME ASSEMBLY Parts Diagram

Brush Chipper

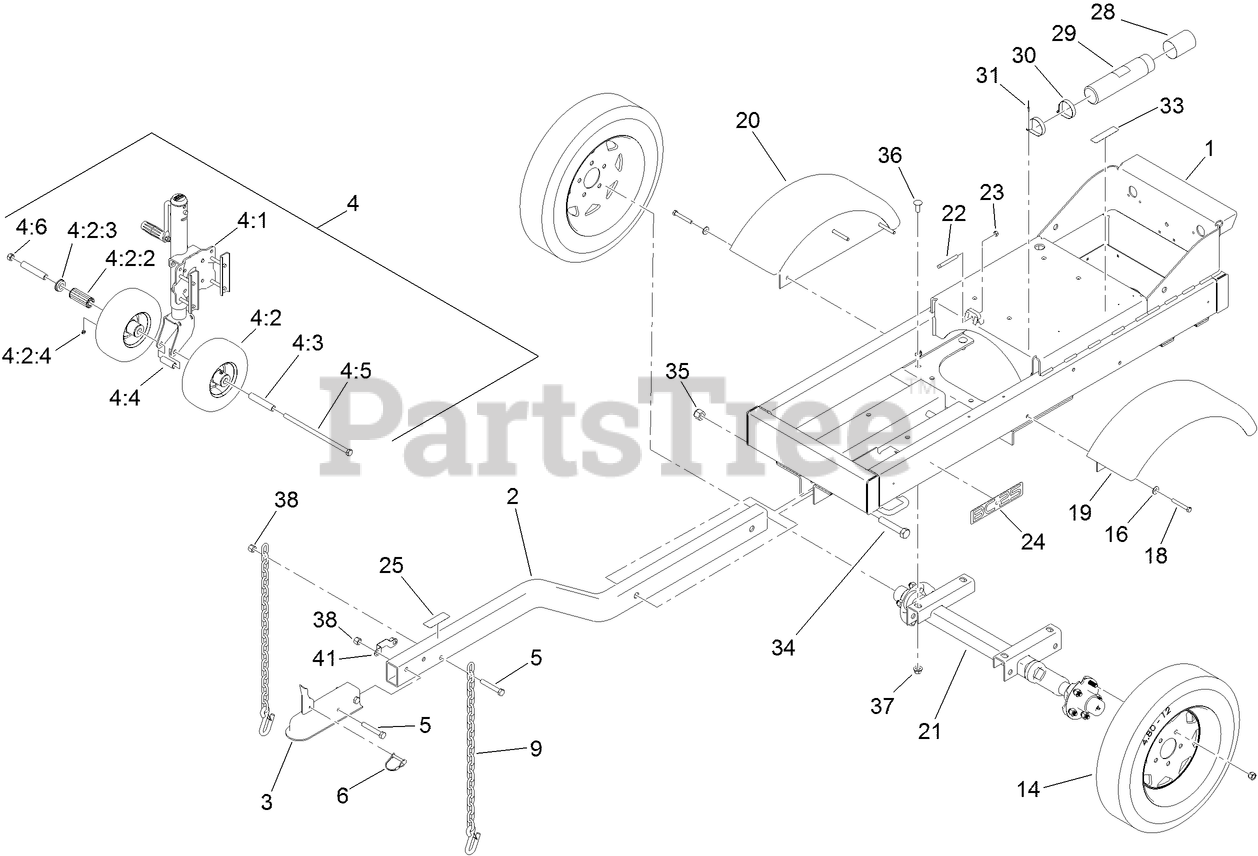

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 120-1561-01

CHIPPER TRAILER ASM

$2103.99

$

Usually ships in 3-6 days

0

2

Toro 119-5177-01

TUBE-TONGUE

$380.99

$

Usually ships in 3-6 days

0

3

Toro 117-8371

RECEIVER-HITCH, BALL

$132.99

$

Usually ships in 3-6 days

0

4

Toro 120-1421

JACK ASM

$410.99

$

Usually ships in 3-6 days

0

4:1

Toro 120-1208

JACK-TRAILER

$241.99

$

Usually ships in 3-6 days

0

4:2

Toro 110-5024

WHEEL AND TIRE ASM

$77.99

$

In Stock, only 2 left!

0

4:2:2

Toro 112-7066

BEARING-ROLLER

$29.99

$

In Stock, only 2 left!

0

4:2:3

Toro 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

4:2:4

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

4:3

Toro 100-6453

BUSHING-SPANNER

$26.99

$

In Stock, only 2 left!

0

4:4

Toro 109-6653

SPACER

$6.49

$

In Stock, only 2 left!

0

4:5

Toro 120-1827

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

4:6

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

5

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

6

Toro 105-9245

PIN-LOCK

$11.99

$

Usually ships in 3-6 days

0

9

Toro 119-3045

CHAIN-SAFETY, TRAILER

$28.99

$

Usually ships in 3-6 days

0

14

Toro 120-1206

WHEEL AND TIRE ASM

$147.99

$

Usually ships in 3-6 days

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

19

Toro 120-1550-03

LEFT FENDER ASM

$187.99

$

Usually ships in 3-6 days

0

20

Toro 120-1551-03

RIGHT FENDER ASM

$

$

Not available

21

Toro 119-5190

AXLE ASM

$950.99

$

Usually ships in 3-6 days

0

22

Toro 119-4729

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

23

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

24

Toro 119-4748

DECAL

$16.99

$

Usually ships in 3-6 days

0

25

Toro 119-4696

DECAL-CAUTION

$5.49

$

Usually ships in 3-6 days

0

28

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

29

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

30

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

31

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

33

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

34

Toro 328-7

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

35

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

36

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

37

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

38

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

41

Toro 120-5358

BRACKET-RETAINER

$30.99

$

Usually ships in 3-6 days

0
