22614 (BC-25) - Toro Brush Chipper (SN: 311000001 - 311999999) (2011) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

Brush Chipper

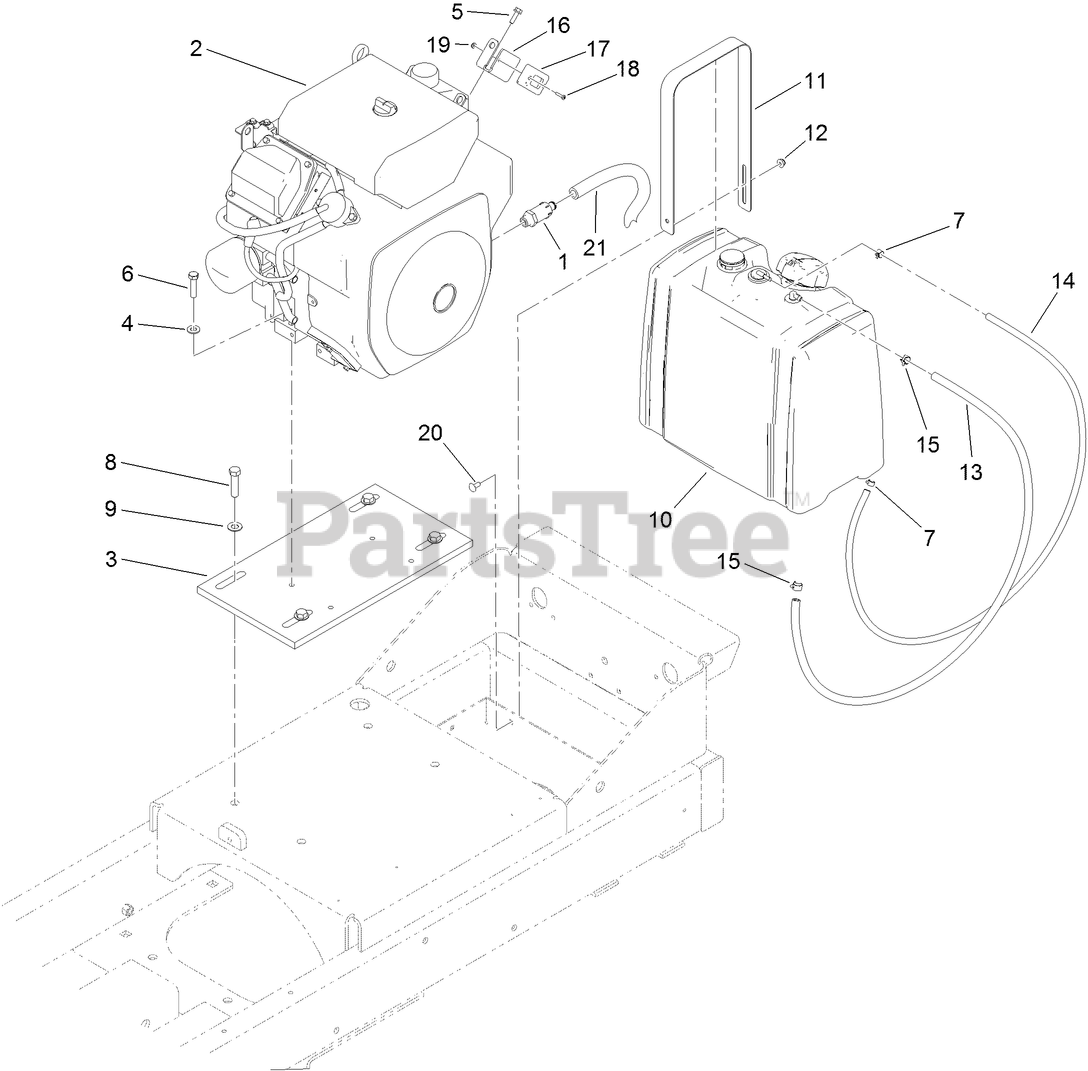

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

2

ENGINE-KOHLER, CH730-3262

Note: Not serviced separately

$

$

Not available

2

ENGINE-KOHLER, CH730-3262

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Toro 120-1526-01

PLATE-ENGINE

$

$

Currently unavailable

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 10

0

8

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 117-8455

FUEL TANK ASM

$691.99

$

Usually ships in 3-6 days

0

11

Toro 119-6285

STRAP-HOLD DOWN, TANK

$32.99

$

Usually ships in 3-6 days

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

14

Toro 108-6344

HOSE-LP

$16.99

$

Usually ships in 3-6 days

0

15

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

16

Toro 120-3740-03

BRACKET-HOURMETER

$32.99

$

Usually ships in 3-6 days

0

17

Toro 120-1218

HOURMETER-INDUCTIVE

$120.99

$

Usually ships in 3-6 days

0

18

Toro 3250-39

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

19

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

20

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0
