226110x24A - Briggs & Stratton 22" Walk-Behind Mower (2005) (Meijer) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

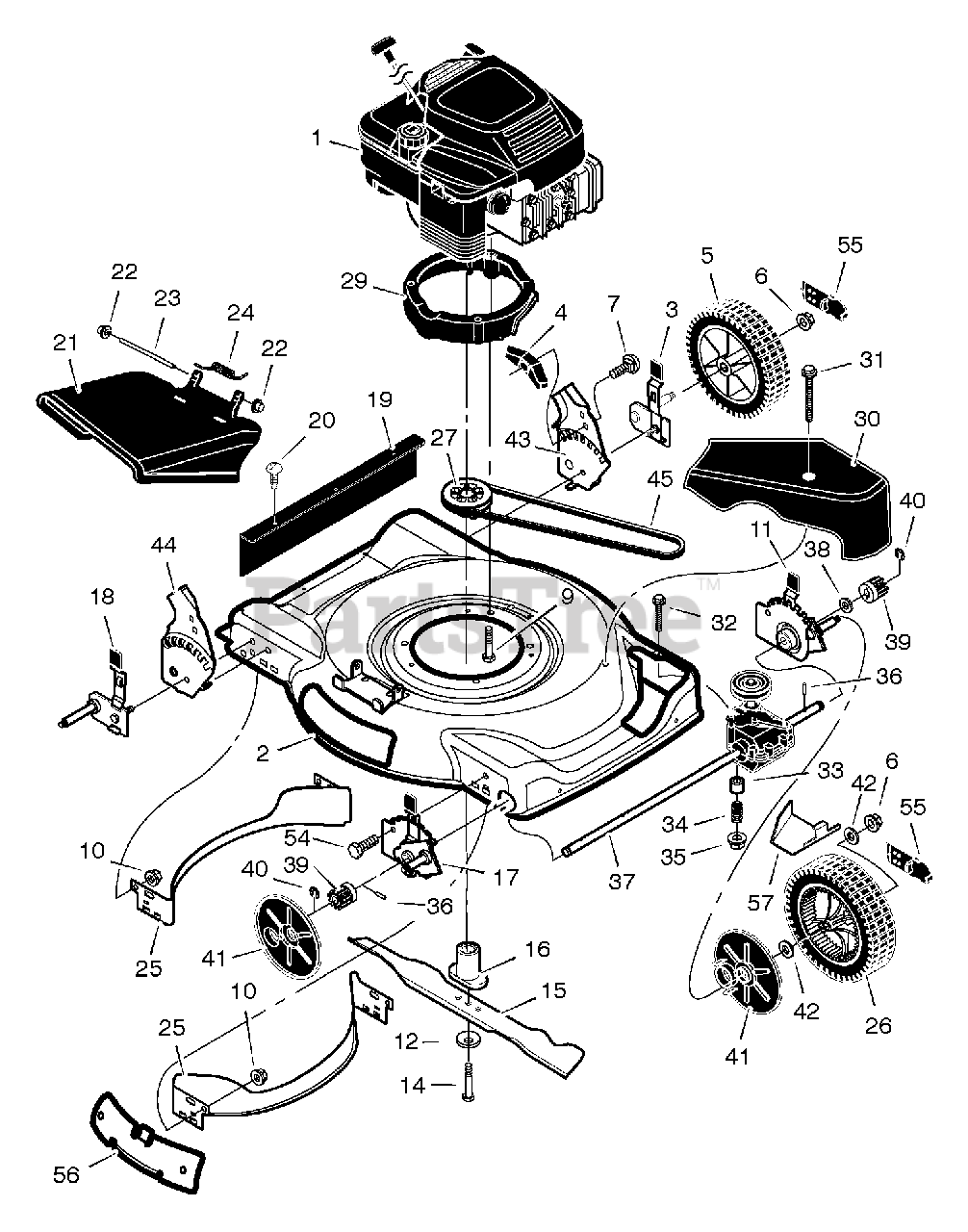

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 7501039

Housing

$130.99

$

Usually ships in 2-12 days

0

3

Murray 672641MA

Height Adjuster, Left Rear

$72.99

$

Usually ships in 2-12 days

0

4

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

5

Murray 071132MA

Wheel and Tire, Rear *

$36.99

$

In Stock, only 4 left!

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672643MA

Height Adjuster, Left Front

$88.99

$

Usually ships in 2-12 days

0

12

Murray 1101989MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

14

Murray 01X148MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1101823E701MA

Blade,
(Superseded to 7100851AYP)

$19.99

$

In Stock, only 1 left!

0

16

Murray 1101968

Adapter, Blade

$

$

Not available

17

Murray 672642MA

Height, Adjuster, Right Frt.

$

$

Not available

18

Murray 672640MA

Height, Adjuster, Right Rr.

$70.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701MA

Baffle

$49.99

$

Usually ships in 2-12 days

0

26

Murray 071133MA

Wheel and Tire, Drive *

$50.99

$

In Stock, only 2 left!

0

27

Murray 1101653MA

Pulley

$9.99

$

Usually ships in 2-12 days

0

28

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

29

Murray 1101786MA

Base, Engine
(Superseded to 1101787MA)

Note: (Black)

$26.99

$

Usually ships in 2-12 days

0

--

Murray 1101787

Base, Engine

Note: (Gray)

$26.99

$

Usually ships in 2-12 days

0

30

Murray 1101830MA

Cover, Belt (Black)

$

$

Not available

--

Murray 1101831

Cover, Belt (Gray)

$

$

Not available

31

Murray 26413

Screw

$

$

Currently unavailable

32

Murray 01X118MA

Bolt

$4.99

$

Usually ships in 2-12 days

0

33

Murray 043844MA

Spacer

$12.99

$

Usually ships in 2-12 days

0

34

Murray 164X27MA

Spring

$3.99

$

Usually ships in 2-12 days

0

35

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

37

Murray 1101571MA

Transmission

$101.99

$

Usually ships in 2-12 days

0

38

Murray 17X186MA

Washer

$

$

Not available

39

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

40

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0

41

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

42

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

43

Murray 1101303E700

Bracket, Left Handle

$

$

Currently unavailable

44

Murray 1101302E700

Bracket, Right Handle

$

$

Currently unavailable

45

Murray 37X123MA

Belt, Briggs & Stratton

$23.99

$

Usually ships in 2-12 days

0

54

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

55

Murray 043615MA

Hub Cap

$4.49

$

Usually ships in 2-12 days

0

56

Murray 672422 Z

Plate, Mulch

Note: (Optional)

$

$

Currently unavailable

57

Murray 1101961MA

Cover, Transmission

$

$

Not available

--

Murray F-050442L

Book, Instruction

$

$

Currently unavailable
