226110x18A - Murray 22" Walk-Behind Mower (2003) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

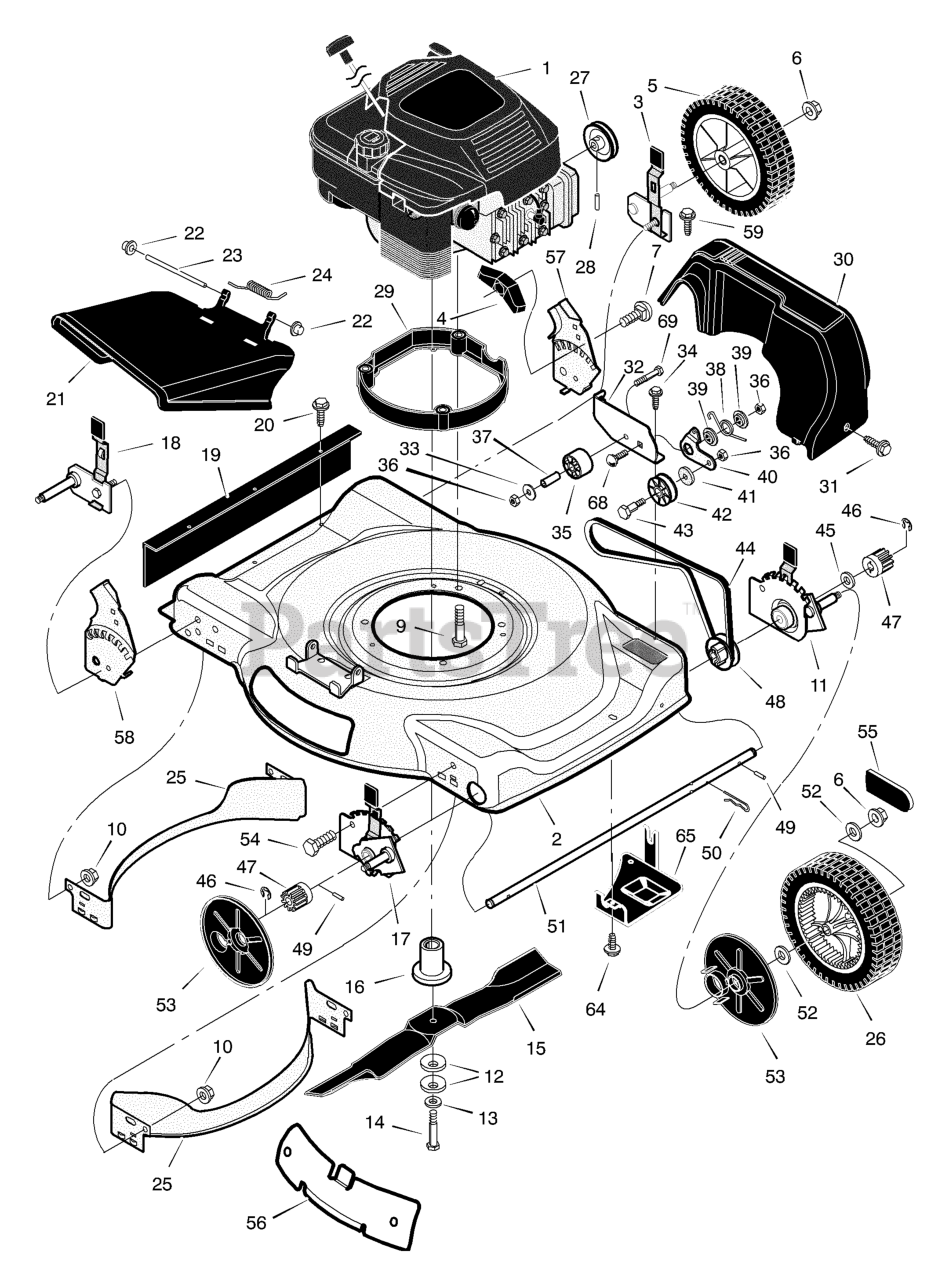

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776023

Housing

$

$

Not available

3

Murray 672641MA

Height Adjuster, Left Rear

$72.99

$

Usually ships in 2-12 days

0

$4.99

$

In Stock, only 3 left!

0

5

Murray 071132MA

Wheel and Tire, Rear

$36.99

$

In Stock, only 4 left!

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672643MA

Height Adjuster, Left Front

$88.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

15

Murray 1101120E701MA

Blade, 3-n-1

$

$

Not available

16

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672642MA

Height, Adjuster, Right Frt.

$

$

Not available

18

Murray 672640MA

Height, Adjuster, Right Rr.

$70.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

Note: (Included with Ref. No. 2)

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

Note: (Included with Ref. No. 2)

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

Note: (Included with Ref. No. 2)

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

Note: (Included with Ref. No. 2)

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

Note: (Included with Ref. No. 2)

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701MA

Baffle

Note: (Included with Ref. No. 2)

$49.99

$

Usually ships in 2-12 days

0

26

Murray 071133MA

Wheel and Tire, Drive

$50.99

$

In Stock, only 2 left!

0

27

$16.99

$

Usually ships in 2-12 days

0

28

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

29

Murray 672671MA

Base, Engine

$16.99

$

Usually ships in 2-12 days

0

30

Murray 1101025MA

Cover, Belt (Black)

$

$

Not available

31

$3.49

$

Usually ships in 2-12 days

0

32

Murray 1101240 Z

Bracket, Idler Support

$

$

Currently unavailable

33

Murray 17X203

Washer

$

$

Not available

34

Murray 26X217MA

Screw
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

35

Murray 071778MA

Idler, Backside

$

$

Not available

36

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

37

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 5

0

38

$

$

Not available

39

$3.99

$

Usually ships in 2-12 days

0

40

Murray 1101121 Z

Arm, Pivot

$

$

Currently unavailable

41

$3.99

$

Usually ships in 2-12 days

0

42

Murray 071779MA

Pulley, Idler

$

$

Not available

43

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

44

$20.99

$

In Stock, only 4 left!

0

45

$

$

Not available

46

Murray 011X16MA

Ring, Retainer

$3.99

$

Usually ships in 2-12 days

0

47

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

48

$16.99

$

Usually ships in 2-12 days

0

49

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

50

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

51

$34.99

$

Usually ships in 2-12 days

0

52

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

53

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

54

$3.99

$

Usually ships in 2-12 days

0

55

Murray 043615MA

Hub Cap

$4.49

$

Usually ships in 2-12 days

0

56

Murray 672422 Z

Plate, Mulch

$

$

Currently unavailable

57

Murray 1101303E245MA

Bracket, Left Handle
(Superseded to 1101303E701MA)

$10.99

$

Usually ships in 2-12 days

0

58

Murray 1101302E245MA

Bracket, Right Handle
(Superseded to 1101302E701MA)

$15.99

$

Usually ships in 2-12 days

0

59

$3.99

$

Usually ships in 2-12 days

0

64

$4.49

$

In Stock, Qty 6

0

65

Murray 1101026E701MA

Shield, Debris

$6.99

$

Usually ships in 2-12 days

0

68

Murray 002X86

Bolt, Carriage

$

$

Not available

69

$3.49

$

In Stock, only 2 left!

0

--

Murray 44X7330MA

Decal, Warning, Mulch Cover

$1.99

$

Usually ships in 2-12 days

0

--

Murray 48X670

Decal, 2n1 Mulch/Discharge

$9.99

$

Usually ships in 2-12 days

0

--

Murray 48X405MA

Decal, Warning OPEI -'98

$56.99

$

Usually ships in 2-12 days

0

--

Murray 44X6458

Decal, Cut Finger

$10.99

$

Usually ships in 2-12 days

0

--

Murray 48X5017

Decal, MURRAY 22 5.0 QTM

$

$

Currently unavailable

--

Murray F-030406L

Book, Instruction

$

$

Currently unavailable
