22610 (SGR-6) - Toro Stump Grinder (SN: 311000001 - 311999999) (2011) HANDLE ASSEMBLY Parts Diagram

Stump Grinder

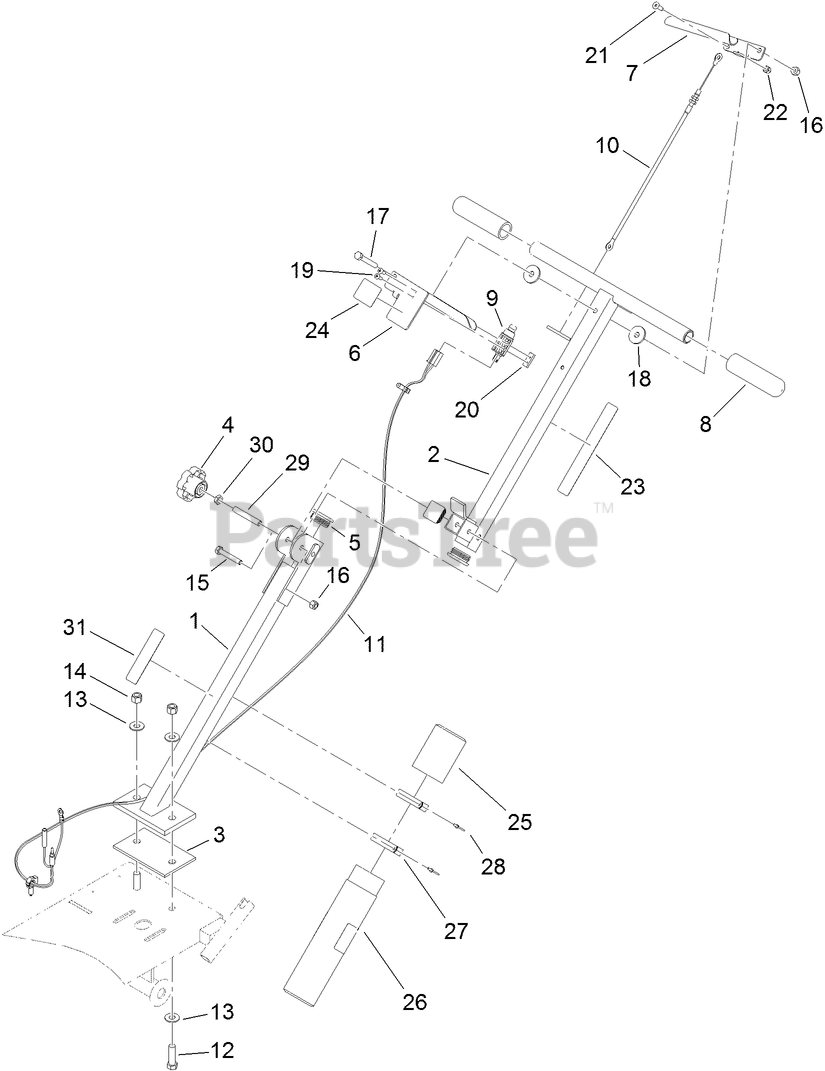

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 120-1323-01

HANDLE-LOWER

$106.99

$

Usually ships in 3-6 days

0

2

Toro 120-1322-01

UPPER HANDLE ASM

$

$

Currently unavailable

3

Toro 120-1324

GASKET-HANDLE

$11.99

$

Usually ships in 3-6 days

0

4

$8.49

$

Usually ships in 3-6 days

0

5

Toro 120-1302

PLUG-TUBE

$3.99

$

Usually ships in 3-6 days

0

6

Toro 120-1355-03

PLUNGER HANDLE ASM

$

$

Not available

7

Toro 120-1359-03

HANDLE-THROTTLE

$40.99

$

Usually ships in 3-6 days

0

8

Toro 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 6

0

9

Toro 120-1292

SWITCH-PLUNGER, NC (W/COVER)

$41.99

$

In Stock, only 1 left!

0

10

Toro 120-1375

CABLE-THROTTLE

$47.99

$

Usually ships in 3-6 days

0

11

Toro 120-1369

HARNESS-WIRE

$46.99

$

Usually ships in 3-6 days

0

12

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

18

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

19

$1.49

$

In Stock, Qty 13

0

20

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

21

Toro 116-0606

SCREW-TORX

$9.49

$

In Stock, Qty 6

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

23

Toro 119-4691

DECAL-CAUTION

$6.99

$

Usually ships in 3-6 days

0

24

Toro 119-4722

DECAL-ENGAGE

$6.99

$

Usually ships in 3-6 days

0

25

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

26

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

27

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

28

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

29

Toro 120-0909

SCREW-HSH

$5.99

$

Usually ships in 3-6 days

0

30

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

31

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
