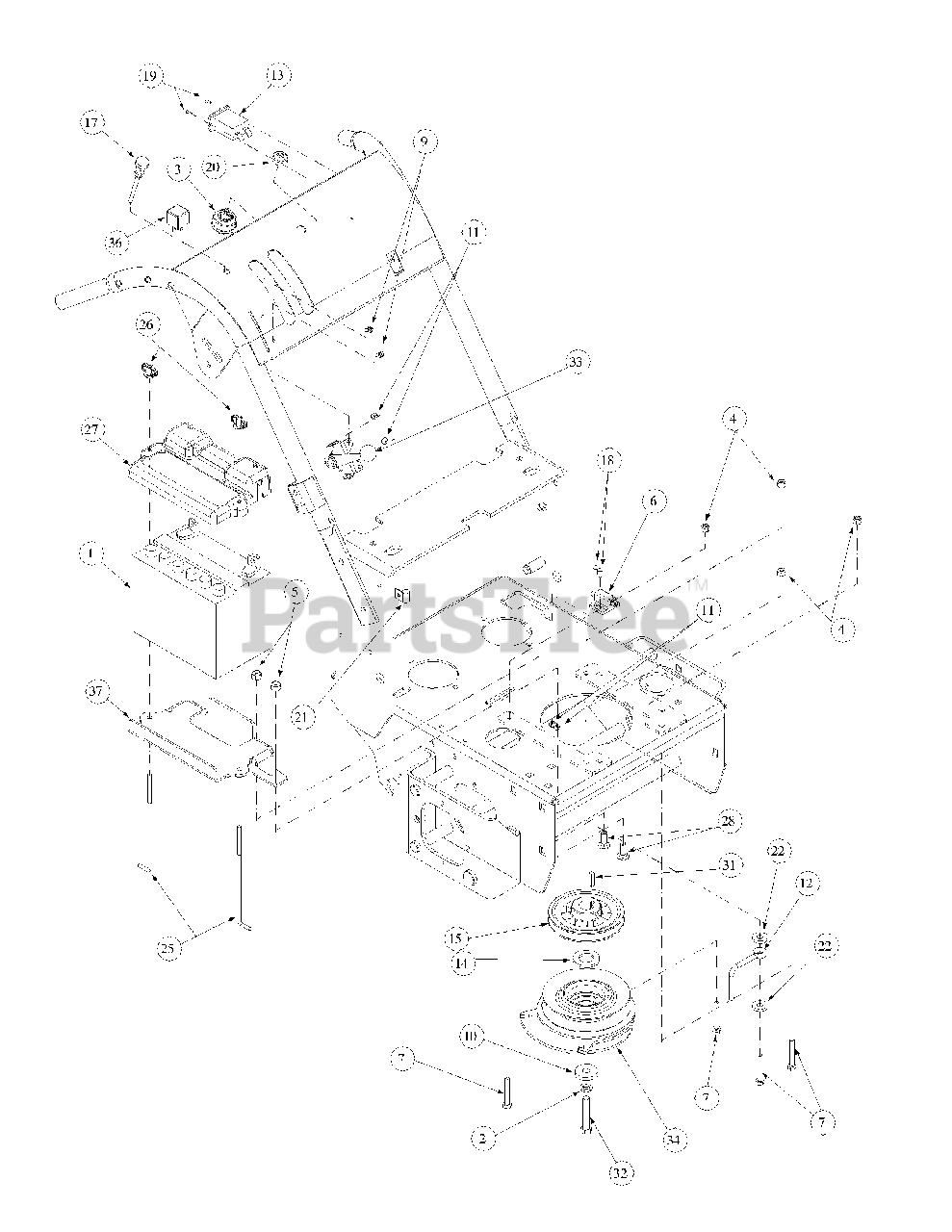

2260F - MTD Pro Walk-Behind Mower V-Twin Kohler Engine Deck Assembly WT Parts Diagram

Pro Walk-Behind Mower

V-Twin Kohler Engine Deck Assembly WT Parts Diagram

  • Title

1

MTD 925-0453G

Battery, 12V

$

$

Not available

2

MTD 00012062

Lock Washer M10

$

$

Not available

3

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

4

MTD 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

5

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 00012242

Switch, Delta
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

7

MTD 00013198

Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

7

MTD 00013528

Boot, Battery Post Red

Note: NLA

$

$

Currently unavailable

9

MTD 00013669

Screw, Hex Washer w/Slot, #10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

10

MTD 00013675

Washer Clutch

$9.49

$

Usually ships in 3-6 days

0

11

MTD 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

12

MTD 01005114

Guide, Traction Drive Belt

$13.99

$

Usually ships in 3-6 days

0

13

MTD 00023709P

Hour Meter

$

$

Not available

14

MTD 00023822

Washer, Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

15

MTD 00023886

Sheave 1" Bore w/2 Set Screws

$

$

Not available

15

MTD 00023887

Belt, Hydro Pump

$51.99

$

In Stock, only 2 left!

0

15

MTD 00030466

Cable Choke

$

$

Not available

18

MTD 00030906

Phil. Hd. Mach. Screw, #10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

19

MTD 00031635

Rivet

$

$

Not available

20

MTD 00032097

Nut, w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

21

MTD 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

MTD 00083192

Washer, Idler
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

23

MTD 00095773

Battery Cable, 15", Red

$

$

Not available

23

MTD 00095784

Battery Cable, 10", Black

$

$

Not available

23

MTD 911-0222A

Hold Down Rod, Battery

$11.99

$

In Stock, only 1 left!

0

26

MTD 912-0397

Wing Nut, 1/4-20 w/Bell Wash
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

27

MTD 01000204

Battery Cover Large

$11.99

$

Usually ships in 3-6 days

0

28

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

29

MTD 01000995P

Engine, Kohler, 22 HP Vertical

$

$

Not available

31

MTD 01001393

Key, 1/4 x 1/4 x 1

$

$

Not available

32

MTD 01001394

Capscrew, M10-1.5 x 60 mm

$

$

Not available

33

MTD 01001439P

Control Throttle, w/Detent 47.25

$

$

Not available

34

MTD 01002108

Brake Clutch

Note: NLA

$

$

Not available

34

MTD 01002118

Harness Assembly

Note: NLA

$

$

Not available

36

MTD 01002251

Relay

$57.99

$

In Stock, only 2 left!

0

37

MTD 01002664

Battery Bracket

$

$

Not available
